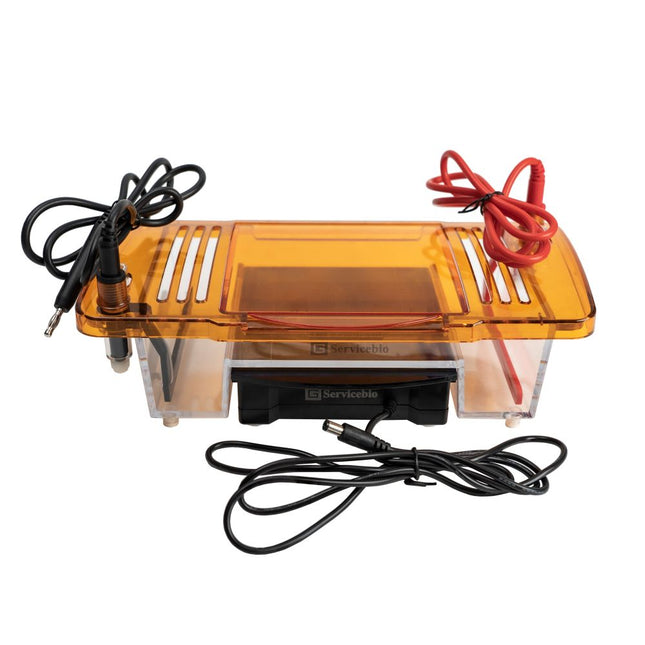

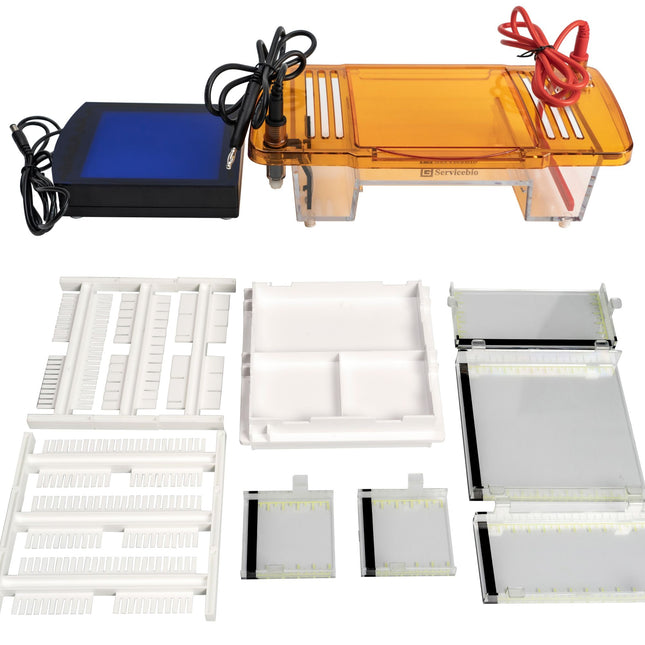

Standard blue light transilluminator is used to directly observe the DNA or RNA bands during the electrophoresis. Four different sizes of gels can be made with the gel mold and trays included.  The transparent cover has venting holes, keeping the cover clear for observation. The electrode holder and electrode head are detachable, which is convenient for cleaning and maintenance.. Product Specifications Dimensions (LXWXH) 310X150X120 mm Blue light wavelength 470 nm Gel tray dimensions Large gel 120mm x 120 mm Wide gel 60 mm x 120 mm Long gel 120mm x 60 mm Small gel 60mm x 60mm Comb specifications 1.0mm comb, up to 25 lanes, 4x 1.5mm comb, up to 13 lanes, 1x 2,0mm up to 6 lanes, 1x Buffer volume 260 mL Weight 1 kg

Read more less

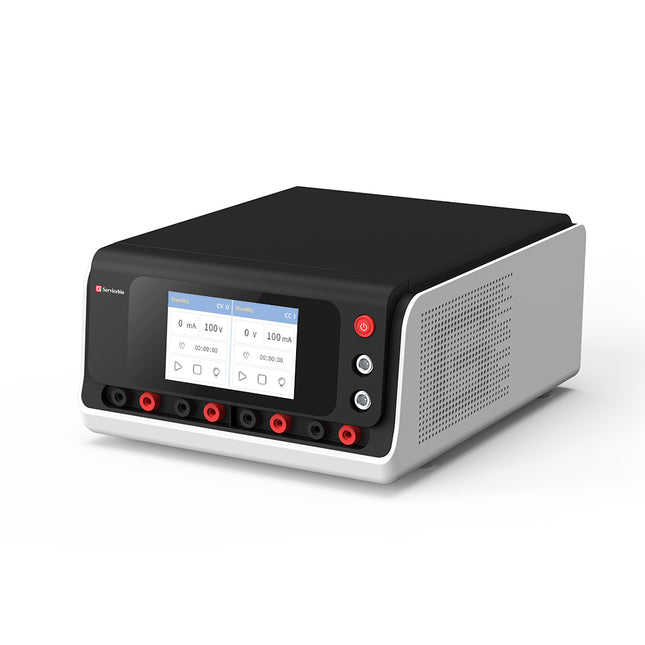

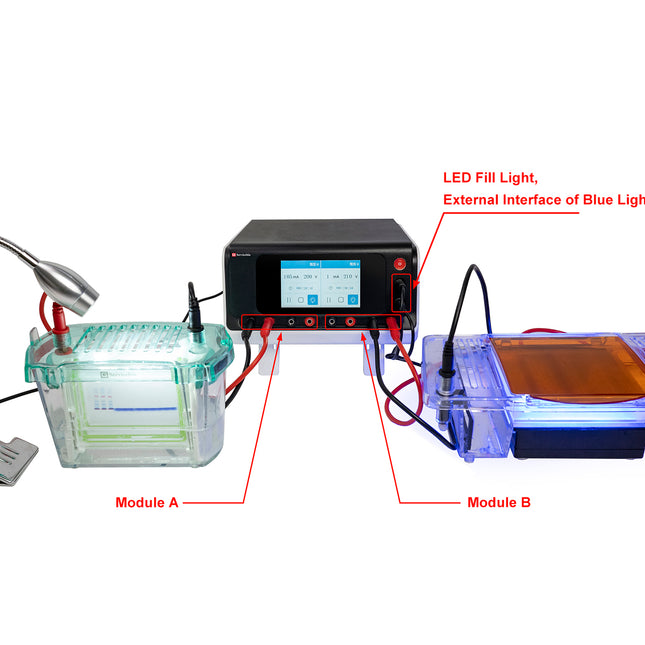

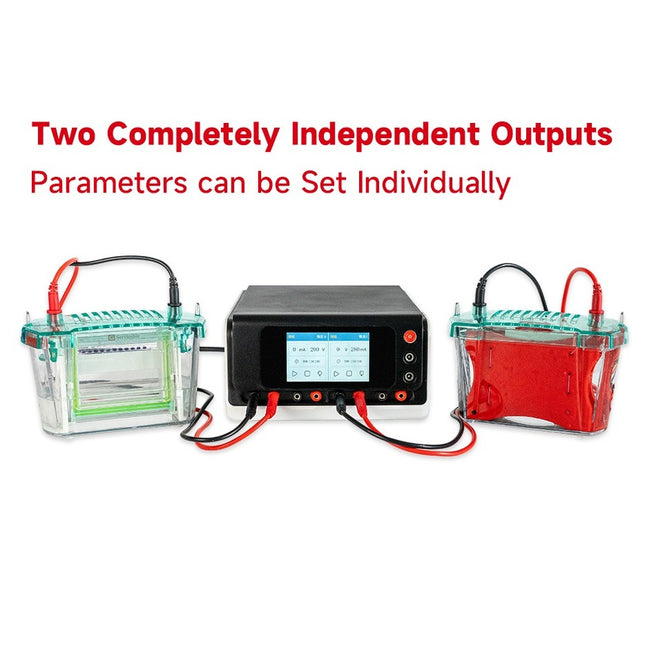

Completely independent dual outputs, with the ability to set parameters separately. Programmable function, capable of setting four working modes: constant voltage, constant current, voltage gradient, and current gradient. Additional two sets of 12V outputs, suitable for use with blue light illuminator, gel loading lamps, and can be controlled separately. Equippend with multiple abnormality alerts, including overvoltage, overcurrent, overload, variable load, and no load. Specifications SKU SPW-DSE Channel Independent dual channels, a total of 6 groups of output ports. Terminal The left and right sets of independent dual power supply outputs can also be independently controlled without interfering with each other. Temperature 4-35°C Parameters 500V, 500mA, 250W Voltage Range 6-500V Current Range 6mA-500mA Type Constant voltage, constant current, gradient voltage, gradient current Timing Range 0-99h60min Pause/Resume Function YES Programmable method Gradient voltage, gradient current, three steps Power off memory function YES Screen size 4 inches Input Power AC 180-240V/110-120V, 50/60HZ Size 265*215*120mm Net Weight 2.25KG

Read more less

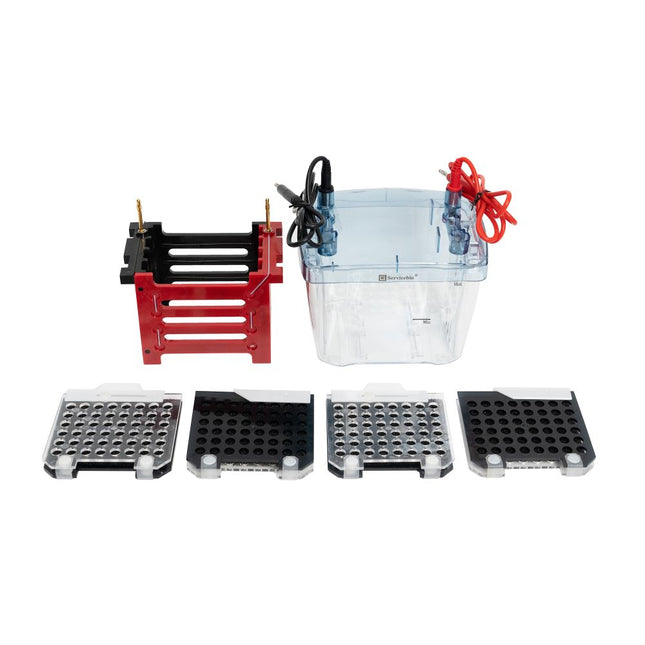

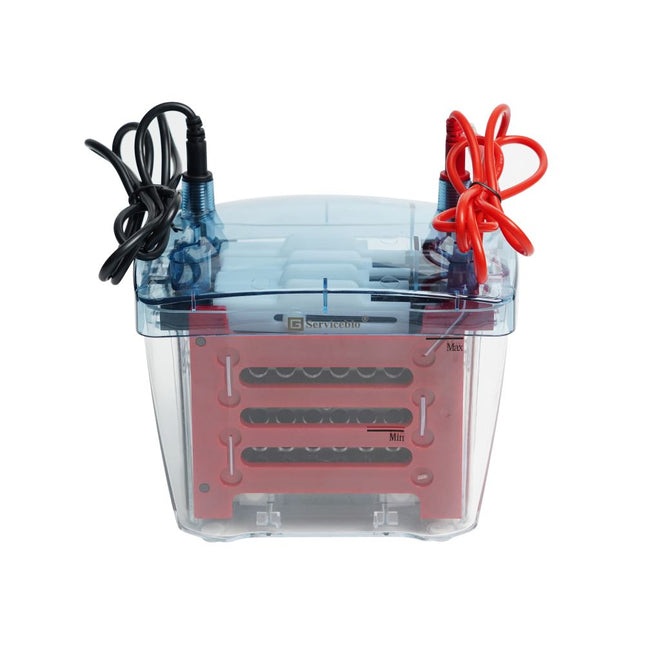

Dual-plate structure, compatible with BVE-4 electrophoresis system. The electrophoresis tank is molded from high-transparency polycarbonate in a single injection process, featuring corrosion resistance, high transparency, and product stability. The transfer clip have clearly marked positive and negative poles, equipped with handles for convenient operation. High blotting efficiency, with a blotting time of approximately 20~40 minutes.Structurally stable materials allow for simultaneous ice bath cooling to prevent overheating interference and ensure reliable experimental results. Capable of blotting four membranes simultaneously. Blotting membrane size: 75x100mm Gel Size 1-4 Gel Size 83 X 73mm External Dimensions 140 x 180 x 185mm Comb Specifications 1.0 mm : 11 teeth / 15 teeth 1.5mm: 11 teeth / 15 teeth  0.75 mm: 11 teeth / 15 teeth Maximum Buffer Capacity

Read more less

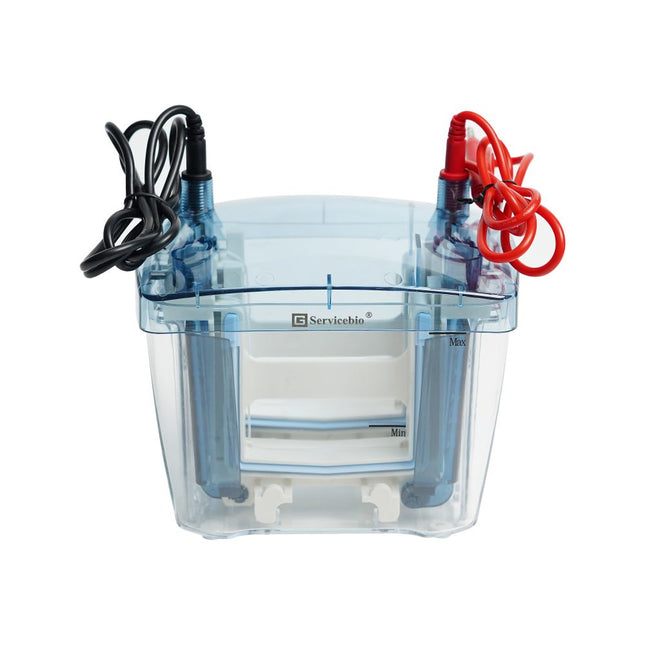

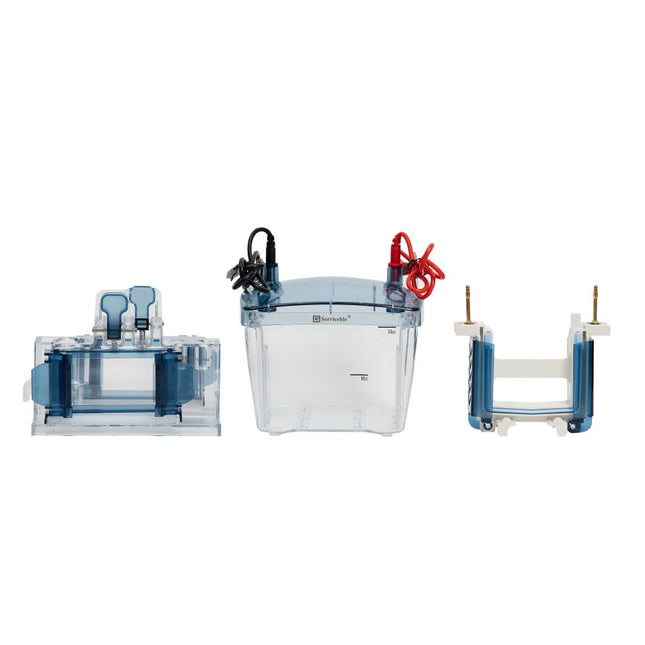

It adopts a separate gel preparation mode for stable and reliable performance, while being compatible with the electrophoresis requirements of prefabricated gel products of this model and specification. The uniquely designed gel preparation frame is compact and space-saving, allowing for flexible combination and full utilization of space. It can be adapted to various thicknesses of glass plates and sample combs (1.5mm, 1mm, 0.75mm), meeting different usage requirements. It allows for simultaneous electrophoresis of two or four gels. It can be used in conjunction with BVT-4 transfer electrophoresis instruments. Gel Size 1-4 Gel Size 83 X 73mm External Dimensions 140 x 180 x 185mm Comb Specifications 1.0 mm : 11 teeth / 15 teeth 1.5mm: 11 teeth / 15 teeth 0.75 mm: 11 teeth / 15 teeth Maximum Buffer Capacity 1.5 L
