Easy operation with intuitive menu and easy-to-read display
Speed can be set in RPM/RCF
Maintenance-free brushless DC motor
Quick spin function with press and hold pulse key
Lid with electric lock and automatic release function
Automatic lid-lock release after running
Braking time 2 steps adjustable only for A6-50P rotor
High strength plastic rotor gives excellent balance to guarantee stable working
Dual protection housing particularly benefit for safe running
Gentle braking at low speeds with efficient separation
CE marked, cTÜVus, and passed explosion-proof test
Accessories Sold Separately

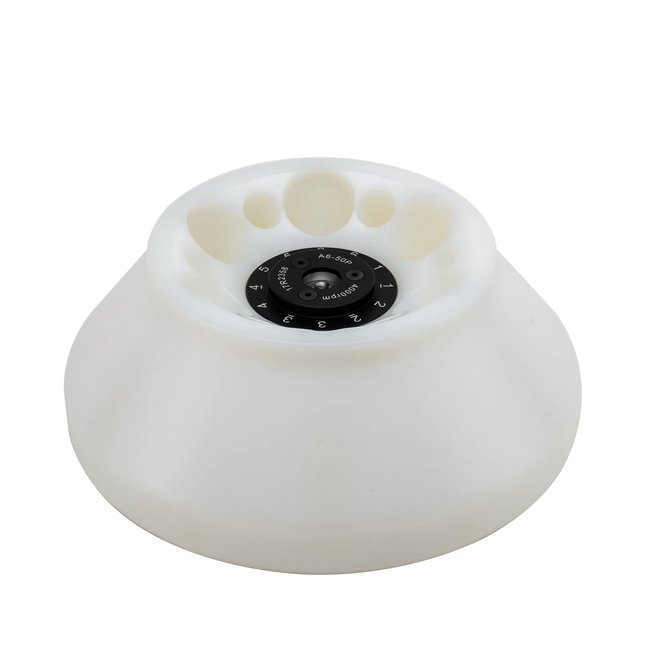

1. A6-50P Plastic rotor (15ml*6 & 50ml*6)
Max.speed: 4000rpm
Max.RCF: 1800×g
Rotor capacity: 50mL×6 or 15mL×6
Rotor material: High strength plastic
2. A12-10P Plastic Rotor (15ml*8)
Max. speed: 4500rpm
Max. RCF: 2490×g
Rotor capacity: 8x15mL,12x10mL
Rotor material: High strength plastic
Features
Speed Range: 100–3500 rpm, adjustable in 100 rpm increments
Rotor Capacity: Accommodates 12 × 10 mL (inner ring) and 12 × 15 mL (outer ring) tubes
Dual Operation Modes: Supports both timed and continuous operation to meet various experimental needs
Adjustable Braking: 6-speed deceleration with optimized braking curve minimizes sample disturbance and enhances separation quality
LCD Display: Real-time display of speed, time, and operation status for intuitive monitoring
Low Noise Performance: Operating noise ≤ 55 dB(A), enabled by a high-strength rotor and dynamic balancing technology
Built-in Safety Functions: Includes operation progress display, audible alarm, and status diagnostic system for enhanced safety and reliability
Product Parameters
Speed Range
100-3500rpm, increment: 100rpm
Max. RCF
2260 xg
Speed Accuracy
±20rpm
Rotor Capacity
12×15mL+12×10mL
Run Time
30s-99min59s/Continuous
Display
LCD
Safety Devices
1↑/6↓
Acceleration/Braking time[Sec]
Brushless DC Motor
Program Memory
170W
Motor
481.5×414×253.5mm
Power
15kg
Features
Speed range from 300-5000 rpm
Set and displayed by RPM or G-force
Two programs P1/P2, easy to start the procedure by one key
Two deceleration speeds setting to meet different requirements
Easy-to-read LCD display and sound alert
Automatic lid-lock release after running
Maintenance-free brushless DC motor
Product Parameters
Speed Range
300-5000rpm, increment:10rpm
Max. RCF
2600xg, increment: 10×g
Speed Accuracy
±20rpm
Rotor Capacity
1.5-5mL/7mL/10mL/15mL/ x6
Run Time
30sec-99min, HD (continuous running)
Display
LCD
Safety Devices
Door interlock, Overspeed detector, Automatic internal diagnosis
Acceleration/Braking time[Sec]
1↑ 2↓
Preloaded Program
P1/P2
Motor
Brushless DC motor
Power
Single-phase, 100V-240V, 50Hz/60Hz, 70W
Dimension[WxDxH]
300X240X180mm
Weight
5.2kg
Advanced features
Speed/RCF switch; sound-alert function
Accessories includes
SE4-100 rotor (19400041)
100ml baskets (19400042)
Maintenance video: https://www.youtube.com/watch?v=IWKShMGN2TY
Spinplus is the most economical centrifuge in its class. Two types of rotors are used. TC-Spinplus-8 rotor has 8 positions for 15ml conical tubes or 10ml blood collection tubes. TC-Spinplus-12 rotor has 12 positions for 5ml conical tubes or 5ml Eppendorf centrifuge tubes. The speed can reach up to 5000RPM.
Features
Safety lid-lock
LCD display
Adjustable speed: 0 - 5000rpm
Adjustable time: 15 seconds to 99 minutes, bell sound after finish
Interchangeable RPM and RCF display
Short spin button for quick spins
Automatic release the lid when operation completes
1 YEAR WARRANTY
For 5ml conical tubes or 5ml Eppendorf centrifuge tubes
12 positions
Technical Data
Model
TC-Spinplus
Power supply
110 v-60 Hz
Power requirement
40 W
Rotational speed (rpm)
100-5000rpm (in 100 rpm increments)
Relative centrifugal force (rcf)
3074 x g
Timer
15 sec - 99 min
Acceleration time to max. speed
20-80 seconds available
Braking time from max. speed
20-80 seconds available
For 15ml conical tubes or 10ml blood collection tubes
8 positions
Introduction
Spinplus is the most economical centrifuge in its class. Two types of rotors are used. TC-Spinplus-8 rotor has 8 positions for 15ml conical tubes or 10ml blood collection tubes. TC-Spinplus-12 rotor has 12 positions for 5ml conical tubes or 5ml Eppendorf centrifuge tubes. The speed can reach up to 5000RPM.
Features
Safety lid-lock
LCD display
Adjustable speed: 0 - 5000rpm
Adjustable time: 15 seconds to 99 minutes, bell sound after finish
Interchangeable RPM and RCF display
Short spin button for quick spins
Automatic release the lid when operation completes
1 YEAR WARRANTY
Technical Data
Model
TC-Spinplus
Power supply
110 v-60 Hz
Power requirement
40 W
Rotational speed (rpm)
100-5000rpm (in 100 rpm increments)
Relative centrifugal force (rcf)
3074 x g
Timer
15 sec - 99 min
Acceleration time to max. speed
20-80 seconds available
Braking time from max. speed
20-80 seconds available
Nextspin SERIES centrifuge have powerful functionality, high versatility, simple operation etc features. The centrifuge suitable for extraction of medical products, blood bank, clinical trial and of blood serum, plasma, body fluids and biological specimen in biology laboratory, it is more significantly in the genetic, Protein&Nucleic Acid, PCR products field for experimental research.
Rotor has 6 positions for 50ml conical centrifuge tubes
Power
200W 110V 60Hz
Rotor
3mL/5mL/8mL vaccum tube or 15mL conical tube x12
Max RCF
2740xg
Speed
100-5000 rpm; increment: 100-5000rpm
Max capacity
8mL/5mL/3mLx24, 50mLx6
Time Range
0-99m, 59s
Safety
Safety lid-lock, Imbalance system
Working Noise
≤56db
Acceleration/Deceleration
20s↑20s↓
Nextspin SERIES centrifuge have powerful functionality, high versatility, simple operation etc features. The centrifuge suitable for extraction of medical products, blood bank, clinical trial and of blood serum, plasma, body fluids and biological specimen in biology laboratory, it is more significantly in the genetic, Protein&Nucleic Acid, PCR products field for experimental research.
Power
200W 110V 60Hz
Rotor
3 mL/5mL/8mL vaccum tubeX24 double row angle rotor
Max RCF
2850xg
Speed
100-5000 rpm; increment: 100-5000rpm
Max capacity
8mL/5mL/3mLx24, 50mLx6
Time Range
0-99m, 59s
Safety
Safety lid-lock, Imbalance system
Working Noise
≤56db
Acceleration/Deceleration
20s↑20s↓
Nextspin SERIES centrifuge have powerful functionality, high versatility, simple operation etc features. The centrifuge suitable for extraction of medical products, blood bank, clinical trial and of blood serum, plasma, body fluids and biological specimen in biology laboratory, it is more significantly in the genetic, Protein&Nucleic Acid, PCR products field for experimental research.
Rotor has 6 positions for 50ml conical centrifuge tubes
Power
200W 110V 60Hz
Rotor
50 mL conical tube X6 angle rotor
Max RCF
2740xg
Speed
100-5000 rpm; increment: 100-5000rpm
Max capacity
8mL/5mL/3mLx24, 50mLx6
Time Range
0-99m, 59s
Safety
Safety lid-lock, Imbalance system
Working Noise
≤56db
Acceleration/Deceleration
20s↑20s↓
Nextspin SERIES centrifuge have powerful functionality, high versatility, simple operation etc features. The centrifuge suitable for extraction of medical products, blood bank, clinical trial and of blood serum, plasma, body fluids and biological specimen in biology laboratory, it is more significantly in the genetic, Protein&Nucleic Acid, PCR products field for experimental research.
Rotor has 24 positions for
15ml conical centrifuge tubes
OR
13x75mm, 13x100mm vacuum blood collection tubes with tube adaptors
Power
200W 110V 60Hz
Rotor
15 mL conical tube X24 double row angle rotor
Max RCF
2850xg
Speed
100-5000 rpm; increment: 100-5000rpm
Max capacity
8mL/5mL/3mLx24, 50mLx6
Time Range
0-99m, 59s
Safety
Safety lid-lock, Imbalance system
Working Noise
≤56db
Acceleration/Deceleration
20s↑20s↓
