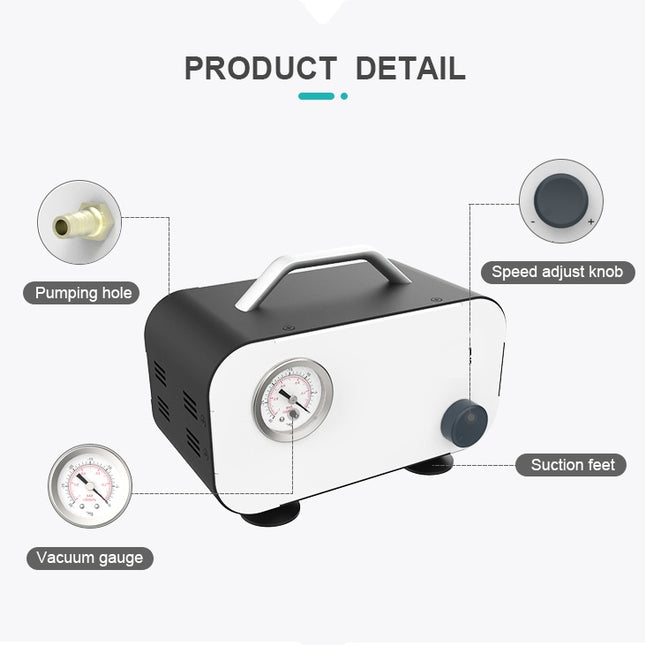

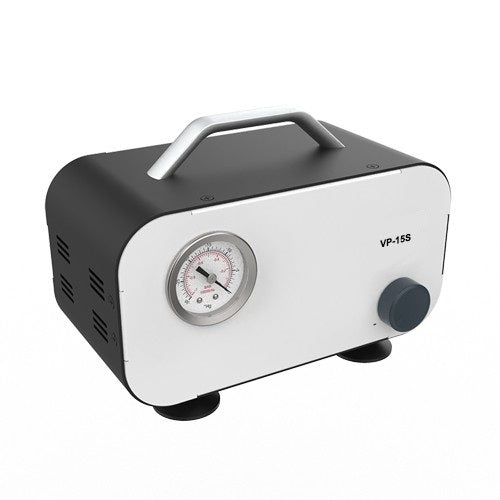

Working without pump oil. Adjustable suction flow rate: 0-10 L/min. Universal voltage 110V~220V. Overload protection, over temperature protection, short circuit protection. Can work without stopping for a long time, over 24 hours. Technical Data Pumping speed 10L/min Negative Pressure 0.075 Mpa Noise Level <40 dB Motor power 20W Diaphragm NBR Overload protection Yes Over temperature protection Yes Short circuit protection Yes Dimension [D×W×H]: 192x100x135 mm Weight 1.6 kg

Read more less

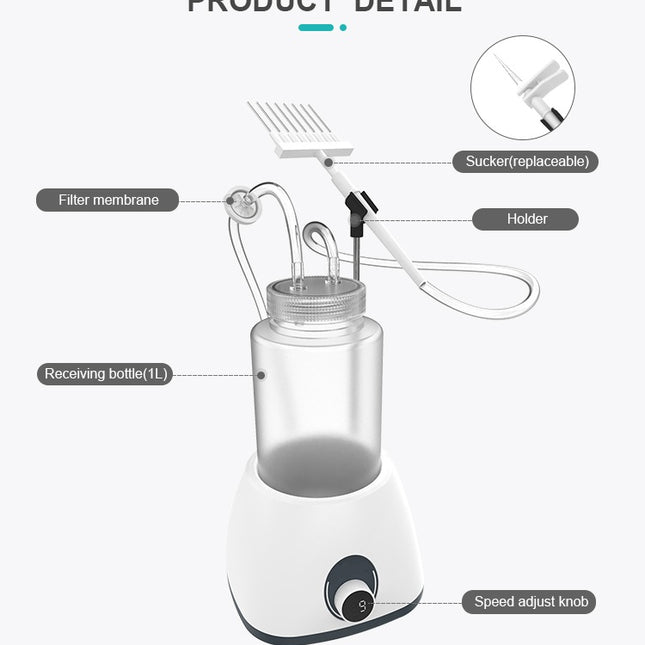

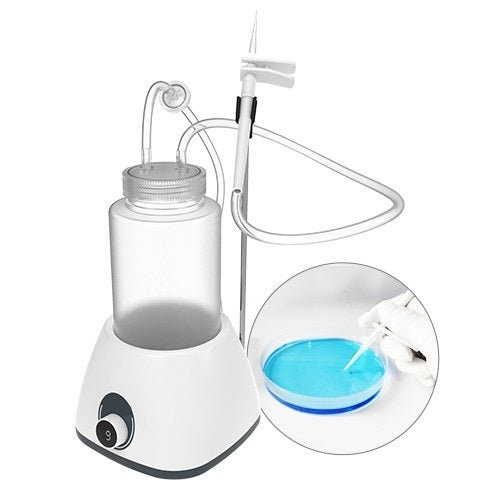

Vacuum power can be set to different levels to achieve 1.6L/min to 6L/min aspiration speed. Sensitive level sensor to prevent liquid overflow during the operation. High temperature disinfection waste collection bottle(receiving bottle),tubing and handle. Lid,tubing and handle are easy for disassembling,cleaning and disinfecting. Wide range of adapters to fit tube,micro plate and disc plate for various tasks. Interchangeable hand operator-tip adapters make it suitable for various tasks from single channel to 8-channel based on the applications in tube,micro plate,disc plate etc.

Read more less

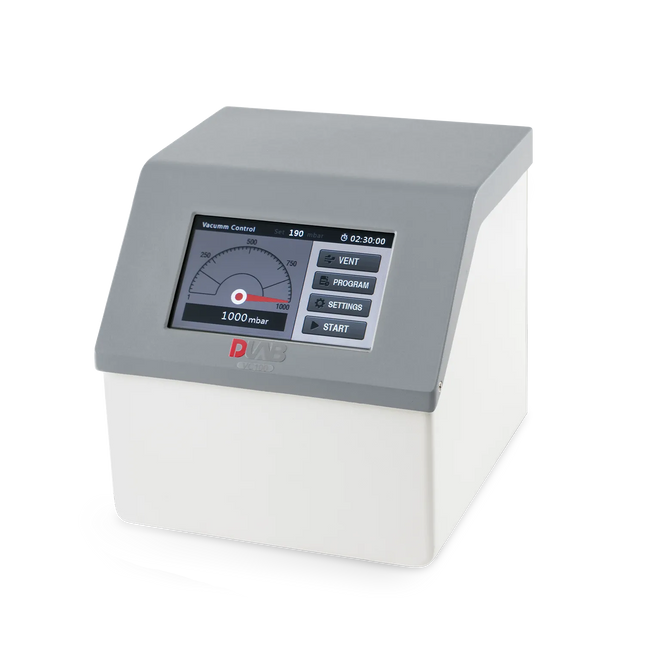

• Wide range of measurement and control, 1-1,000mbar • Two control modes available Single-point control and programmed control •Stores up to 5 programs, each containing up to 5 steps of programming control •Large TFT touch screen display control provides easy operation  •All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials which effectively resists corrosion caused by organic solvents, water, acid and alkali •Built-in vent valve can feed inert gas into system equipment •One-click decompression allows easy installation and dismantling of vacuum system Cat.No. 6031100300 Vacuum setting range 1-1000mbar Control mode Single-point control mode, Programmed control mode Control program Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time) Setting method Touch screen setting Display 5‘’TFT Sensor overload pressure 1,500mbar Compatible conditions Power of 50Hz vacuum pump ≤400W；Power of 60Hz vacuum pump ≤500W Connector diameter 8mm Materials in contact PTFE, PP, silicone and ceramics Power 600W Voltage,Frequency 110-240V,50/60Hz Overall dimensions [WxDxH] 189x207x193mm Weight 4.0kg Ambient temperature 10-40℃ Permissible ambient humidity ≤80% RH

Read more less

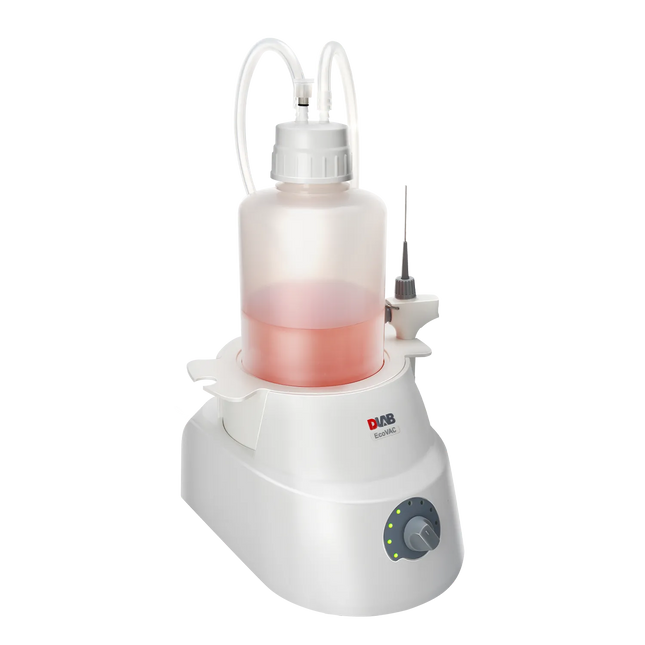

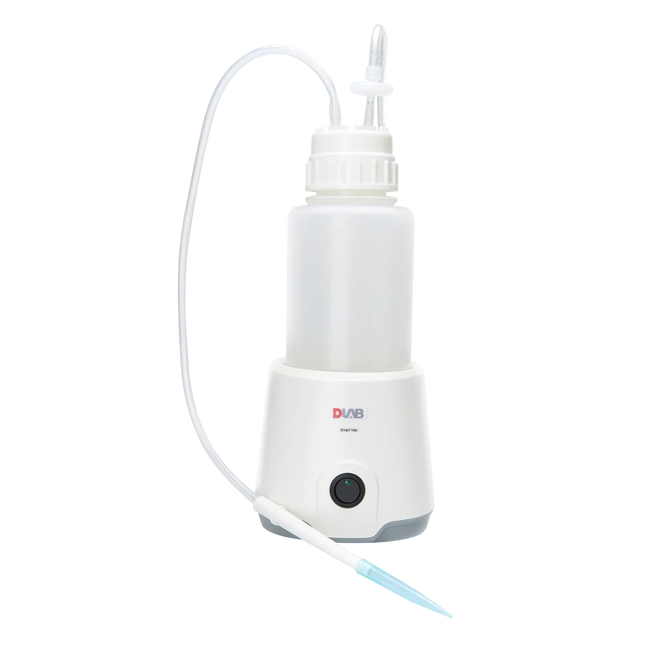

Compact, user-friendly design Level detection system prevents bottle overfill (SafeVac) Control knob for vacuum setting The parts in contact with liquids are autoclavable Easy to disassemble and clean Manual and continuous mode  Ideal tool to avoid lab air contamination and protect personnel safety Adjustable vacuum level with indicator light is designed for various applications Complies with applicable CE, UKCA, FCC, ICES, WEEE,REACH and RoHS requirements and has also obtained CB and cTUVus certifications Applications: Designed for rapid and safe collection of laboratory waste liquids. Applications include aspiration of cell-culture waste, media changes, collection of cell supernatants, plate-washing waste recovery, removal of post-centrifugation supernatant, PCR and molecular-biology waste handling, ELISA wash waste, immunoassays, microbial culture and sample pretreatment. Compatible with pipette tips, Pasteur pipettes and aspiration needles for continuous aspiration, centralized collection and filter protection. It reduces splashing, aerosols and cross-contamination and lowers biosafety risk. Typical applications: cell culture, ELISA, analytical biology, microbiology and drug R&D. Specifications Cat. No. 7035100000 7035200001 7035200002 Model SafeVac EcoVac SmartVac Vacuum range 0-600mbar 0-500mbar 0-500mbar Aspirating speed 15L/min (air) 15L/min (air)   Flow rate [liquid] 17mL/s 17mL/s 11.6L/min Bottle 4L 2L standard, 1L optional with adaptor 1L collection bottle in Standard package /500mL bottle with an adaptor, or filtration flask optional Autoclave component   Tube; waste bottle; operation handle Components in contact with liquids are suitable for high-temperature, high-pressure steam sterilization Components in contact with liquids are suitable for high-temperature, high-pressure steam sterilization Motor type Brushless Motor Brushless Motor Brushless Motor Noise level ≤55dB ≤55dB 53dB Input voltage 100-240VAC，50/60Hz 100-220VAC，50/60Hz DC2V, 1.0A Continuous work for 5 hrs after fully charged Dimension [WxDxH] 180x240x450mm 180x240x340mm 127x 144x244mm Weight 3kg 2.8kg 0.5kg

Read more less

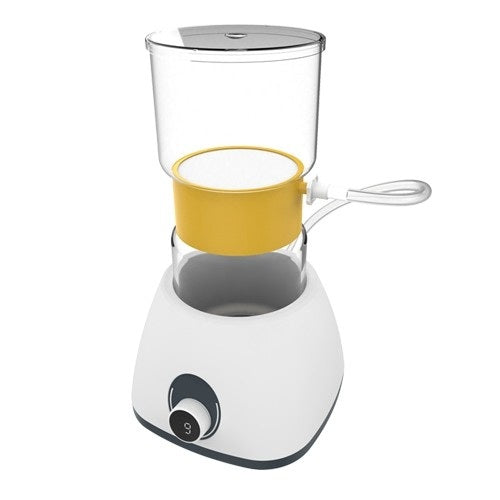

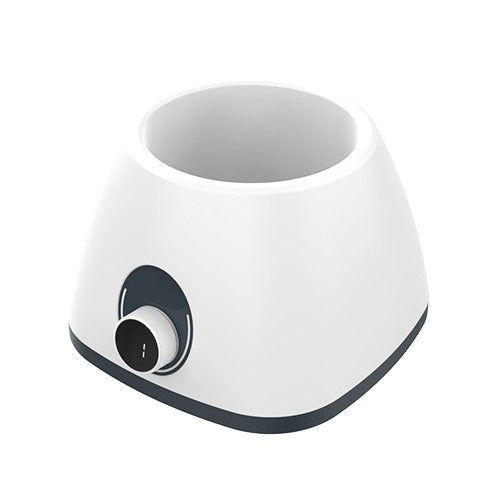

Ideal for vaccum filtration systems Adjustable suction flow rate: 0-6L/min Digital display on knob Low working noise Small size and easy to carry 9 levels speed regulation
