- Compact, user-friendly design
- Level detection system prevents bottle overfill (SafeVac)
- Control knob for vacuum setting
- The parts in contact with liquids are autoclavable
- Easy to disassemble and clean
- Manual and continuous mode
- Ideal tool to avoid lab air contamination and protect personnel safety
- Adjustable vacuum level with indicator light is designed for various applications
- Complies with applicable CE, UKCA, FCC, ICES, WEEE,REACH and RoHS requirements and has also obtained CB and cTUVus certifications
Applications:
Designed for rapid and safe collection of laboratory waste liquids. Applications include aspiration of cell-culture waste, media changes, collection of cell supernatants, plate-washing waste recovery, removal of post-centrifugation supernatant, PCR and molecular-biology waste handling, ELISA wash waste, immunoassays, microbial culture and sample pretreatment. Compatible with pipette tips, Pasteur pipettes and aspiration needles for continuous aspiration, centralized collection and filter protection. It reduces splashing, aerosols and cross-contamination and lowers biosafety risk. Typical applications: cell culture, ELISA, analytical biology, microbiology and drug R&D.
Specifications
|
Cat. No.
|
7035100000
|
7035200001
|
7035200002
|
|
Model
|

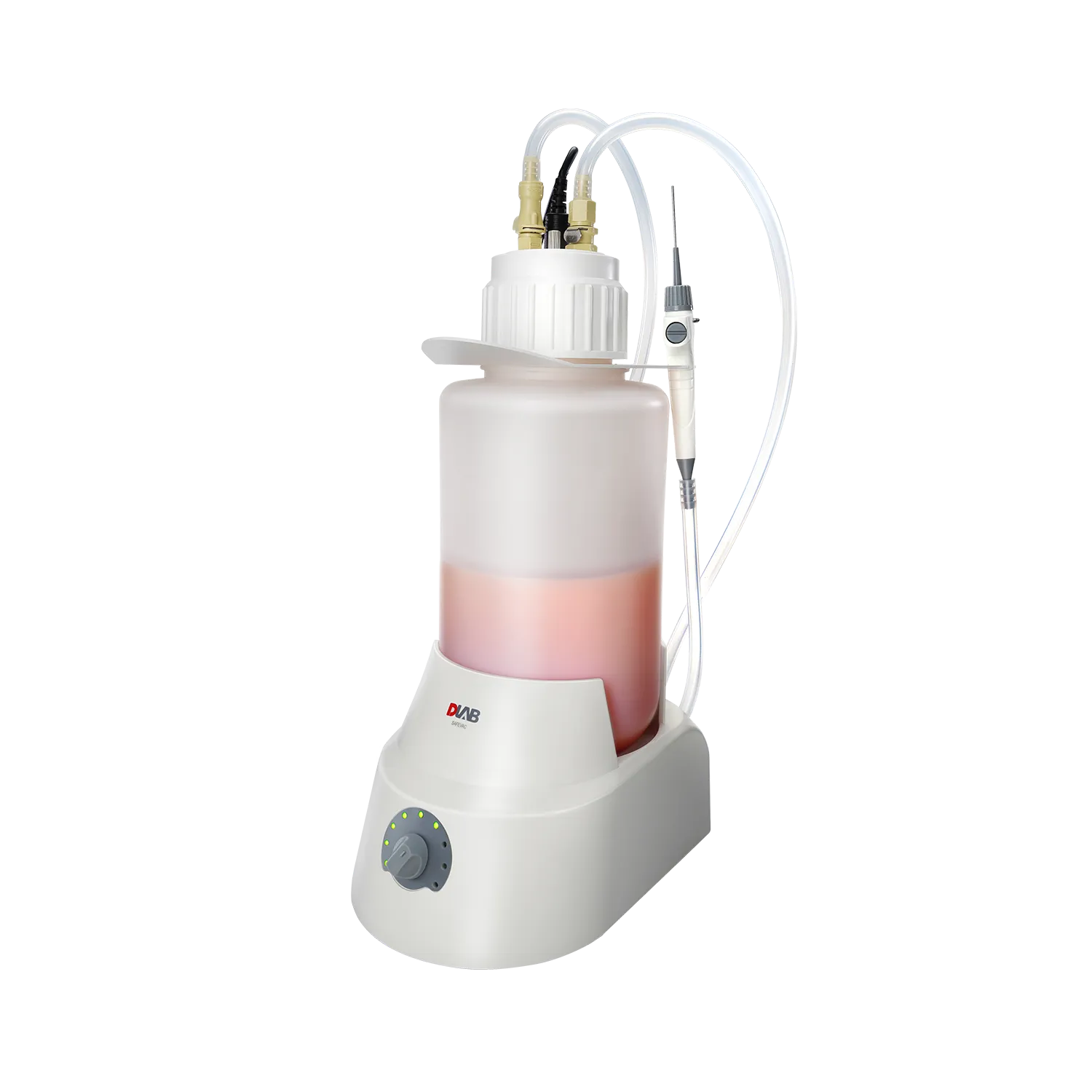

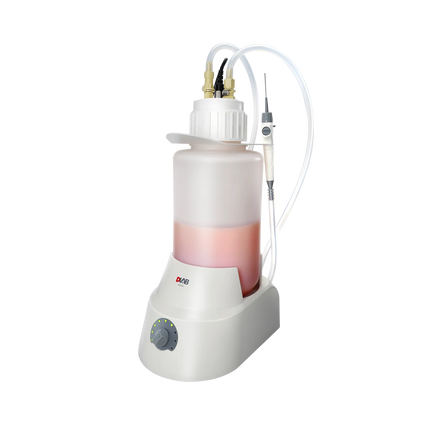

SafeVac
|

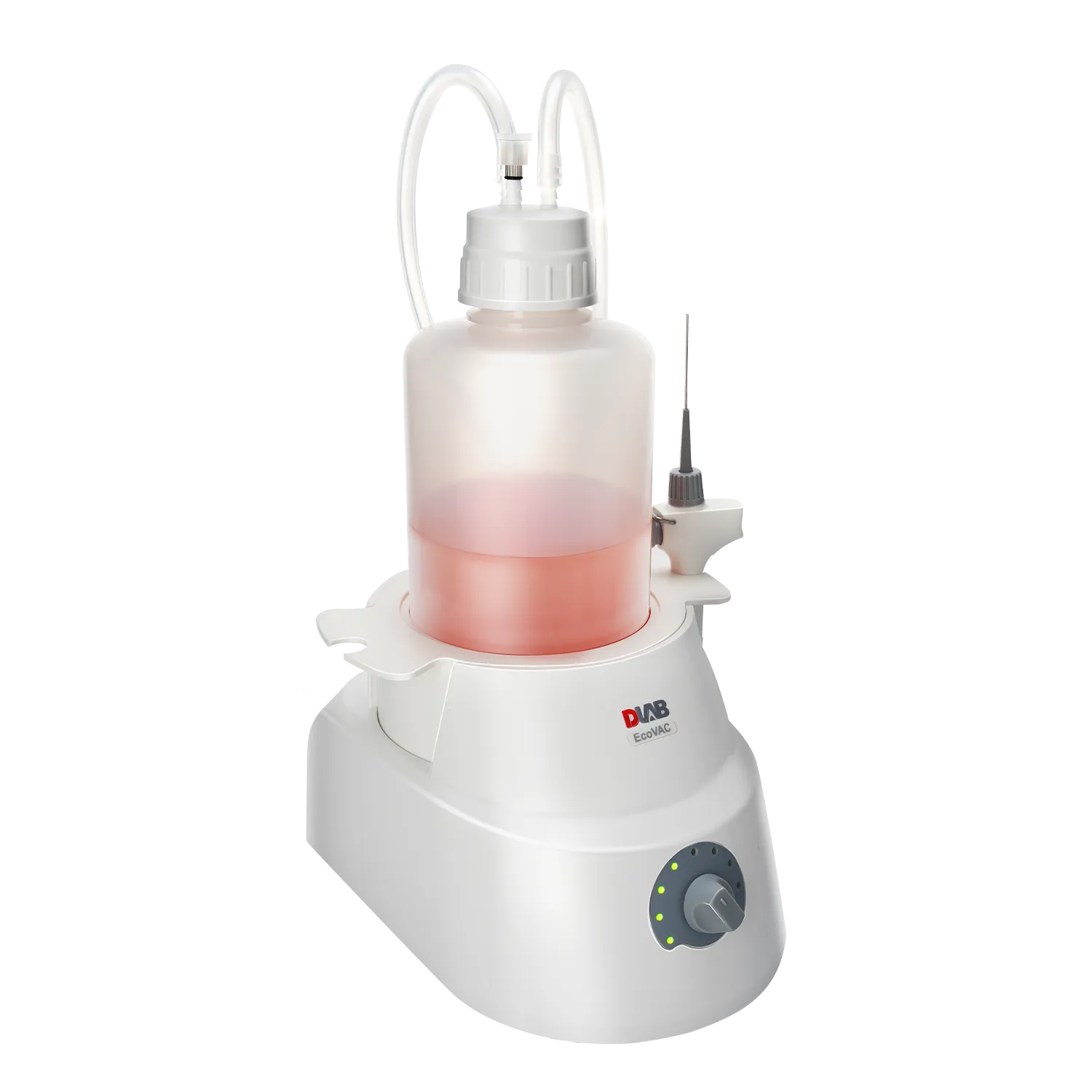

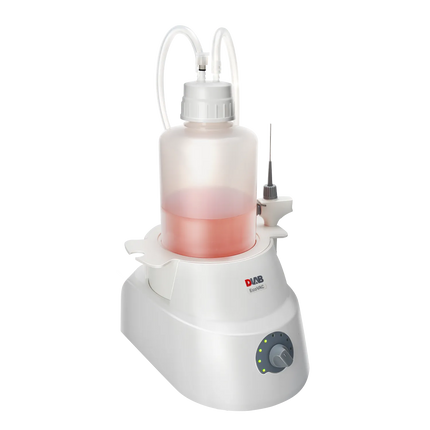

EcoVac
|

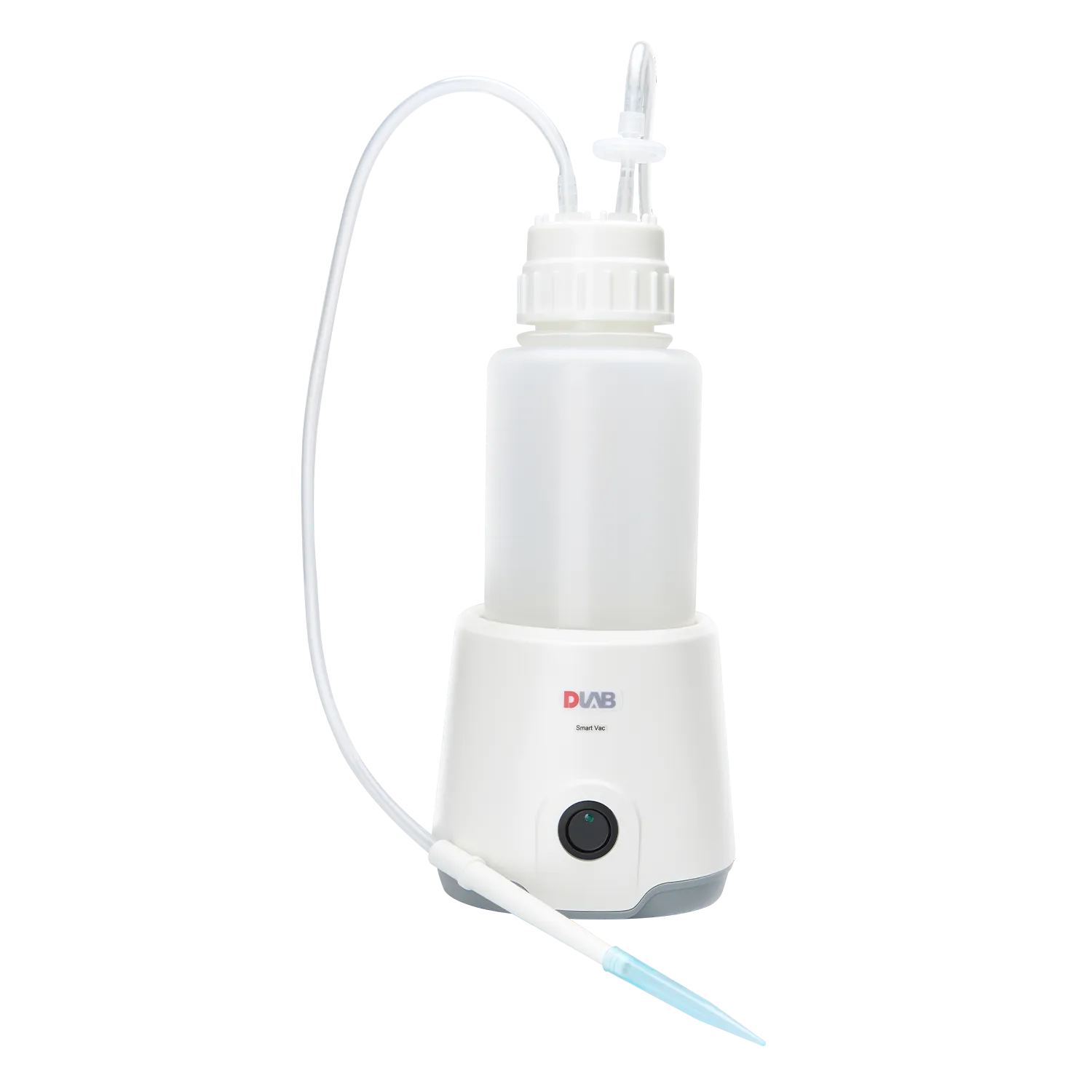

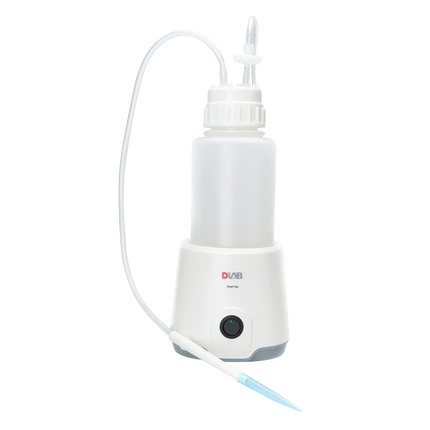

SmartVac
|
|
Vacuum range
|
0-600mbar
|
0-500mbar
|
0-500mbar
|
|
Aspirating speed
|
15L/min (air)
|
15L/min (air)
|
|
|
Flow rate [liquid]
|
17mL/s
|
17mL/s
|
11.6L/min
|
|
Bottle
|
4L
|
2L standard, 1L optional with adaptor
|
1L collection bottle in Standard package /500mL bottle with an adaptor, or filtration flask optional
|
|
Autoclave component
|
Tube; waste bottle; operation handle
|
Components in contact with liquids are suitable for high-temperature, high-pressure steam sterilization
|
Components in contact with liquids are suitable for high-temperature, high-pressure steam sterilization
|
|
Motor type
|
Brushless Motor
|
Brushless Motor
|
Brushless Motor
|
|
Noise level
|
≤55dB
|
≤55dB
|
53dB
|
|
Input voltage
|
100-240VAC，50/60Hz
|
100-220VAC，50/60Hz
|
DC2V, 1.0A
Continuous work for 5 hrs after fully charged
|
|
Dimension [WxDxH]
|
180x240x450mm
|
180x240x340mm
|
127x 144x244mm
|
|
Weight
|
3kg
|
2.8kg
|
0.5kg
|
