Introduction

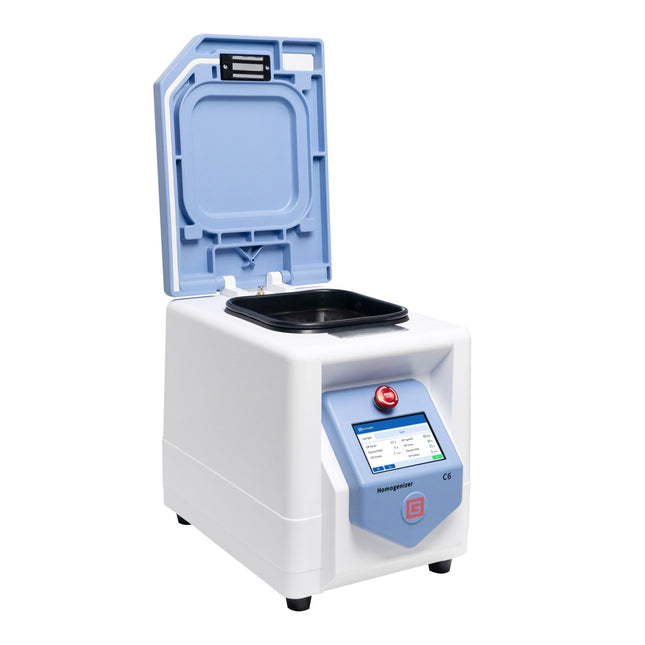

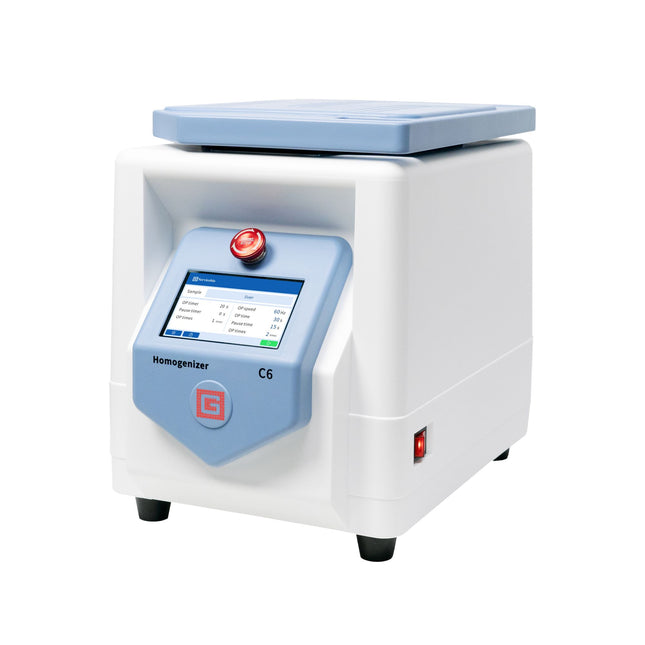

The tissue homogenizer utilizes a vertical shock system with high-speed reciprocating motion to make the frozen samples in the grinding tube collide with the grinding beads, The resulting grinding shear force and impact force completely crush the tissues, making it a specialized device for rapid one-time processing of multiple samples in research institutions, universities and agricultural, biomedical, food testing fields.
Features:
Linear guide rail, stable and durable, capable of continuous grinding for 24 hours
Capable of processing up to 24 samples at a time
Adapter module can be pre-cooled at low temperature to reduce sample degradation
Multiple adapters are optional
Compact and sleek appearance

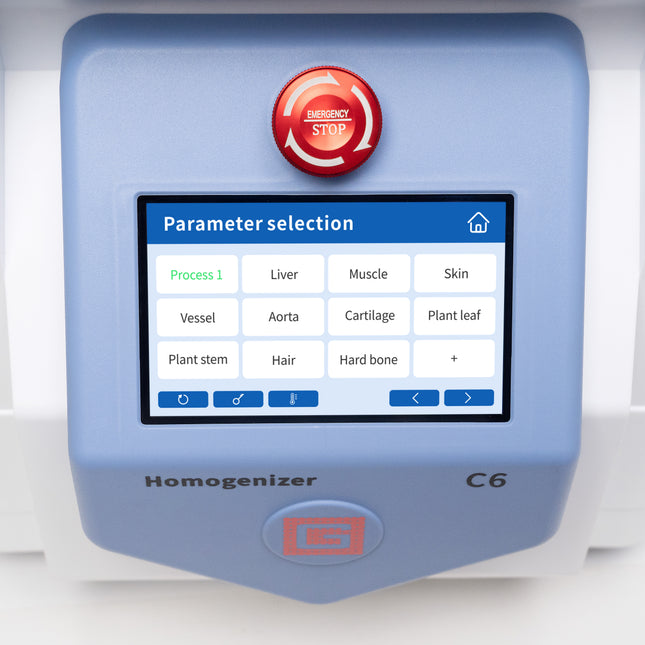

Parameter settings and reference for grinding beads
Tissues
Grinding Beads
Grinding Time
Pause Time
Cycle Number
Frequency
Liver and Spleen
4mm*13mm*1
30s
15s
2
60Hz
Muscle
4mm*23mm*2
45s
15s
2
60Hz
Skin
4mm*23mm*3
60s
20s
4
70Hz
Blood Vessel
4mm*23mm*2
60s
15s
3
70Hz
Aorta
4mm*23mm*3
60s
15s
4
70Hz
Soft Bone
4mm*23mm*3
60s
20s
5
70Hz
Plant Leaf
4mm*13mm*2
45s
15s
3
60Hz
Plant Stem
4mm*13mm*2
60s
15s
3
60Hz
Hair
4mm*23mm*3
90s
20s
4
70Hz
Hard Bone
4mm*23mm*3
90s
30s
5
70Hz
*It is recommended to use steel grinding beads for protein extraction and zirconia grinding beads for RNA extraction.
Notes
When using 4mm grinding beads or large grinding beads, it is necessary to use a 2mL U-bottom tube. 1.5mL conical tube may cause obstruction, affecting the grinding effect (it is recommended to use our 2ml centrifuge tubes, which have thicker walls and higher material strength, suitable for grinding, SKU: TUBE0020-H).
The tissue size is preferably below 1-3mm, and the weight should be within 100mg.
If you want to reuse the grinding beads, it is recommended to soak them in absolute ethanol for 15 minutes before use, then filter out the grinding beads and dry them for future use.
To prevent sample degradation while ensuring the grinding effect, the following principles should be followed:
Minimize the number of grinding beads used
Minimize the grinding time
When using the instrument, ensure that the load on both sides of the adapter is balanced, and do not use it unilaterally.
To protect the internal circuitry and mechanics of the instrument, do not rinse it with running water. Use a damp cloth to clean it.
If any abnormality occurs during use, immediately disconnect the power and contact a professional for handling.
The instrument must be placed on a horizontal and flat laboratory bench to prevent vibration during operation.
After ensuring that the adapter and fastening screws are correctly installed, close the top cover and start the instrument.

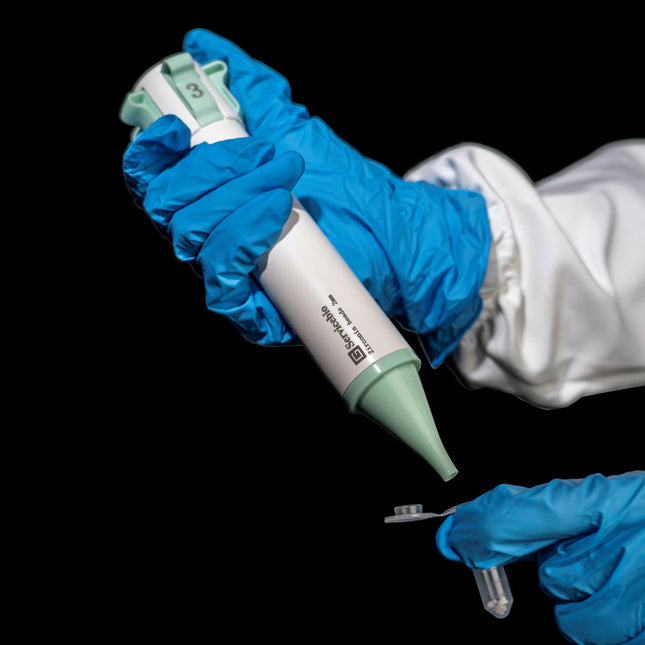

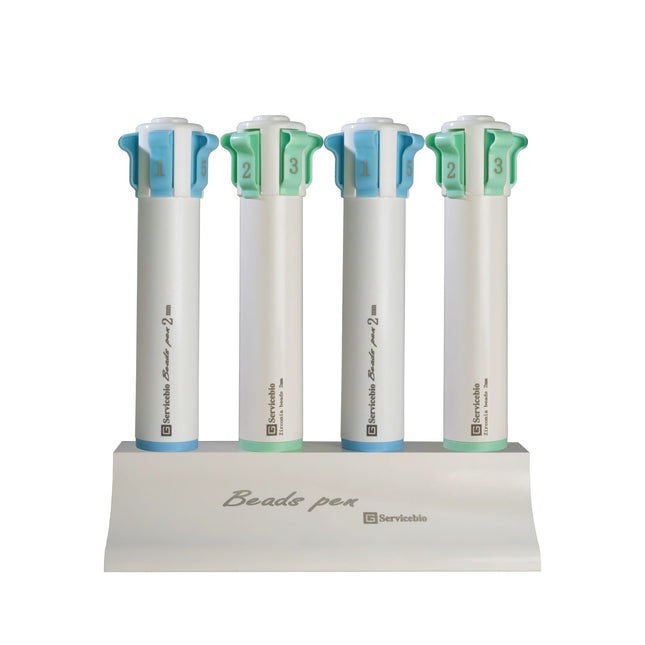

The beads pen is an innovative product used with the tissue homogenizer beads grinding system. The grinding beads have been pre-installed in the beads pen, The specified number of beads can be pressed out according to specific needs, which perfectly solves the difficulty of adding beads by tweezers. No longer have to worry about the cross-contamination of beads after opening the cap.
Product Name
SKU
Specification
Beads Output Per Time/Pcs
Volume
Pen Color
Bead Color
Beads Pen (RNase and DNase free, Sterile)
SYM-02Z
Piece (Zirconia Beads 2 mm)
1, 2, 3, 4, 5
2000 pcs (20 ml 70g)
Green
White
Beads Pen (RNase and DNase free, Sterile)
SYM-03Z
Piece (Zirconia Beads 3 mm)
1, 2, 3, 4
600 pcs (20 ml 70g)
Green
White
Beads Pen (RNase and DNase free, Sterile)
SYM-04Z
Piece (Zirconia Beads 4 mm)
1, 2, 3
400 pcs (20 ml 70g)
Green
White
Beads Pen (Sterile)
SYM-02B
Piece (Steel Beads 2 mm)
1, 2, 3, 4, 5
2000 pcs (20 ml 90g)
Blue
Silver
Beads Pen (Sterile)
SYM-03B
Piece (Steel Beads 3 mm)
1, 2, 3, 4
600 pcs (20 ml 90g)
Blue
Silver
Beads Pen (Sterile)
SYM-04B
Piece (Steel Beads 4 mm)
1, 2, 3
400 pcs (20 ml 90g)
Blue
Silver
*It is recommended to use steel grinding beads for protein extraction and zirconia grinding beads for RNA extraction.
Features
Simple operation, easy to add beads, and improve work efficiency;
The sizes 2 mm, 3 mm, and 4 mm of zirconia beads and steel beads both are optional;
Number and color identification, which is convenient for distinction and operation;
The number of beads output:
2mm: 1/2/3/4/5,
3mm: 1/2/3/4,
4mm: 1/2/3,
According to the number marked on the button, you can output the corresponding quantity
Precautions
Before the operation, remove the sealing plug at the tip of the nozzle;
If there is an error in the number of beads, you can press button 1 (or other numbers) to replenish beads;
Press the button to the bottom and return to the highest point when it bounces back. If it does not return to the highest point, please push the button back to the highest point with your thumb;
If the number of beads is not accurate during use, please shake the beads pen up and down, then press it again to release the beads.

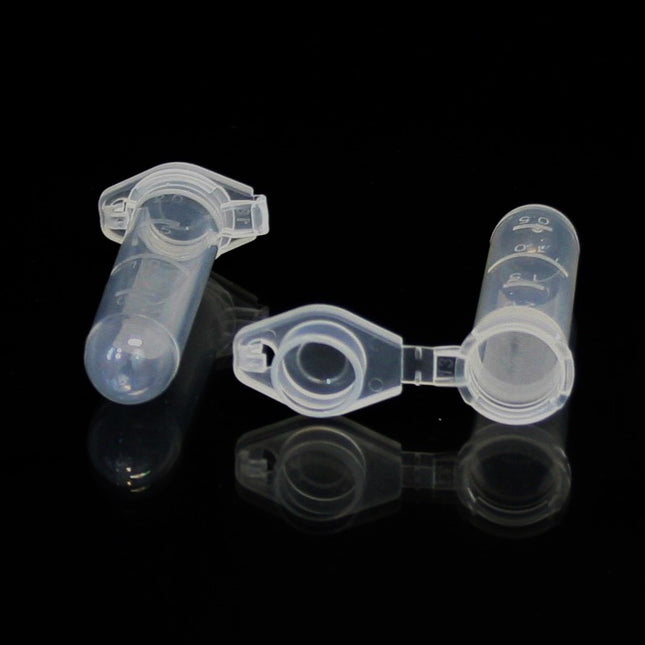

For tissue homogenizer
The maximum centrifuge speed up to 18,000RCF
RNase, DNase, DNA and Endotoxin-Free
Autoclavable; Temperature range from -90oC to 121oC
Thickeded wall for safe grinding
A box of 500 tubes
