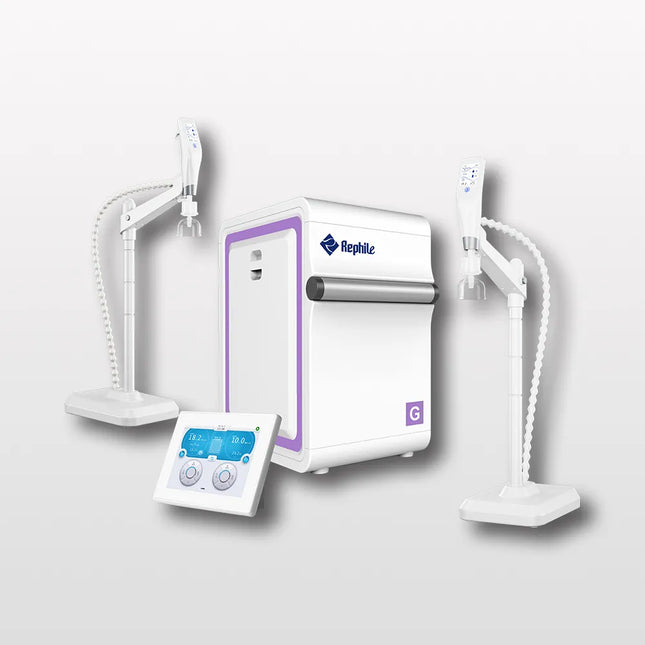

Genie G produces ultrapure water (Type I water) and EDI water (Type II water) from tap water directly, it offers desired solutions for research professionals who work with varieties of applications utilizing Type I ultrapure and Type II pure water in the lab. Quality of ultrapure water and EDI water meet or exceeds ASTM, CLSI, CAP, and ISO Type I water and Type II water standards, respectively.
Genie G Set
Feed: tap water
Product: Type II water and Type I
System includes
Main system with TOC
Control Console
One Dispenser
RO membrane(s)
UV preinstalled

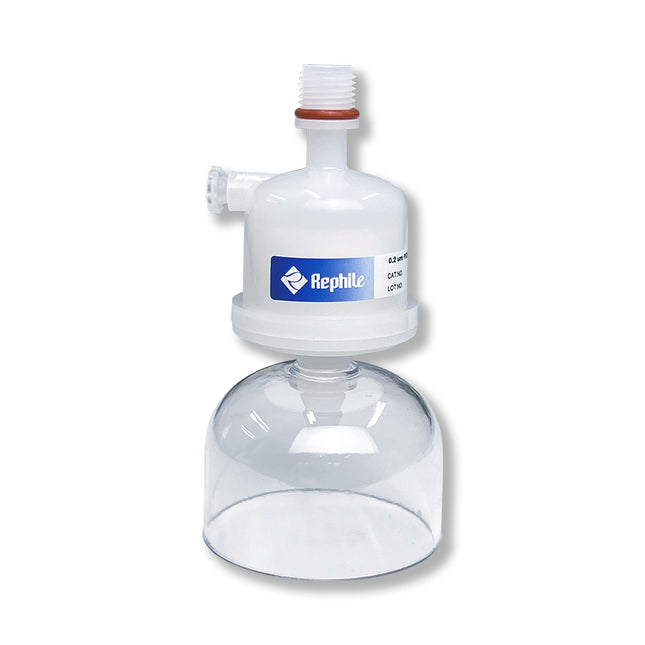

Three cartridges and a 0.2 um final filter
30L tank
Tank vent filter
Leak protector
More dispensers are optional
Feed Water Requirements
Tap Water
Municipal water, Conductivity < 2000 μS/cm (1000 ppm)
Operating temperature
5 – 35 ℃
Feed water pressure
1 – 6 bar (15 – 90 psi)
Water Flow Rate
EDI water production rate (@ 25℃)
5, 10, 15 L/hr
EDI water dispensing rate
Up to 2.0 L/min
Ultrapure water dispensing rate
Up to 2.0 L/min
Product Water Quality
RO rejection
97 to 98% ionic rejection (new RO cartridge)> 99% organic rejection> 99% particulates & bacteria rejection
EDI water resistivity (@ 25℃)
> 5 MΩ·cm (typically 10 – 16 MΩ·cm)
EDI water TOC*
< 30 ppb
Ultrapure water resistivity (@ 25℃)
18.2 MΩ·cm
Ultrapure water TOC*
< 2 ppb
Particles in ultrapure water
( > 0.2 μm)
No particles (with a 0.2 μm final filter or RephiBio filter)
Microorganisms in ultrapure water
< 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter)
Pyrogens in ultrapure water
< 0.001 Eu/ml (with a RephiBio filter)
RNase in ultrapure water
< 0.5 pg/ml (with a RephiBio filter)
DNase in ultrapure water
<10 pg/ml (with a RephiBio filter)
Product Water Quality Stored in Tank ( for tank recirculation models )
Resistivity (＠25℃)
> 1 MΩ·cm (default), adjustable
Dimensions
Main system dimensionsWidth × depth × height
32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in)
Dispenser dimensions
Width × depth × height
21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in)
Weight
20 kg
Input Voltage
110 – 240 VAC
Operating Voltage
24 VDC
*In the appropriate operating conditions, otherwise typically ≤5 ppb.

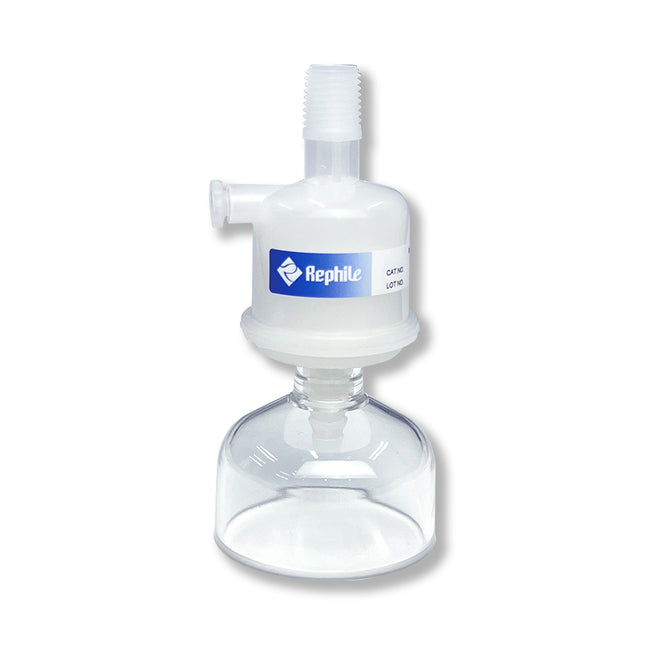

Rephibio Filter RAFFB0201 is a disposable final filter for ultrapure water in biological applications to effectively remove endotoxin, RNases, DNases and bacteria from water.RephiBio filter is suitable for use with cell culture, molecular biology or other biochemistry applications that require biologically active impurities-free ultra-pure water.Every filter is integrity tested. Each product package comes with a quality certificate stating its performance specifications and operating conditions.
Package：1 / PK
Specifications：
Material of shell: PP (Polypropylene)
Material of membrane: Positively charged Nylon-66, double layer
Pore Size Rating: 0.2 μm
Maximum Operating Temperature: 80 ℃
Maximum Operation Pressure: 0.40 MPa (4 bar) @ 30 ℃
Maximum Flow Rate: 2 L/min
Connection: ¼ NPT
Product Water Specifications (when used in a clean environment)
Pyrogen : ＜0.001 Eu/mL
RNases: < 0.5 pg/mL (non-detectable level)
DNases : < 10 pg/mL (non-detectable level)
Bacteria : < 0.01 cfu/mL
Package Dimensions & Gross Weight:
Length X Depth X Height (mm): 140 X 80 X 90
Gross Weight (kgs): 0.10
Suitable for the following water systems:
Direct-Pure Genie
Direct-Pure UP
Direct-Pure EDI
Direct-Pure adept
PURIST
PURIST Pro

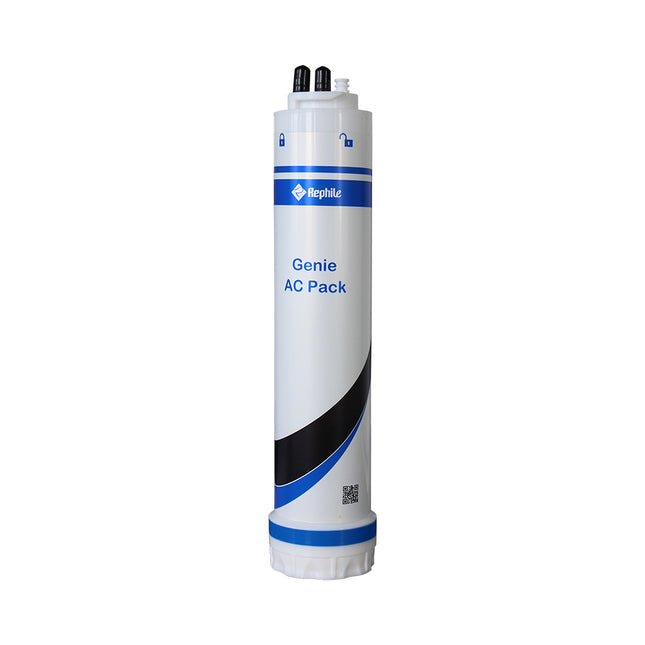

Genie AC Pack is designed as pre-purification pack for Genie water system to remove free chlorine from tap water. This protects the reverse osmosis (RO) membrane against chlorine oxidation.
Purification Technologies
Activated carbon for free chlorine reduction and bacteriostatic protection
Technical Specifications
Burst pressure
≥20bar
Flow rate
≥2L/min（Feed pressure ≥ 2 bar）
Height
393.8mm
Diameter
φ90mm
Suitable for Genie water systems
Genie G
Genie U
Genie E
Genie R

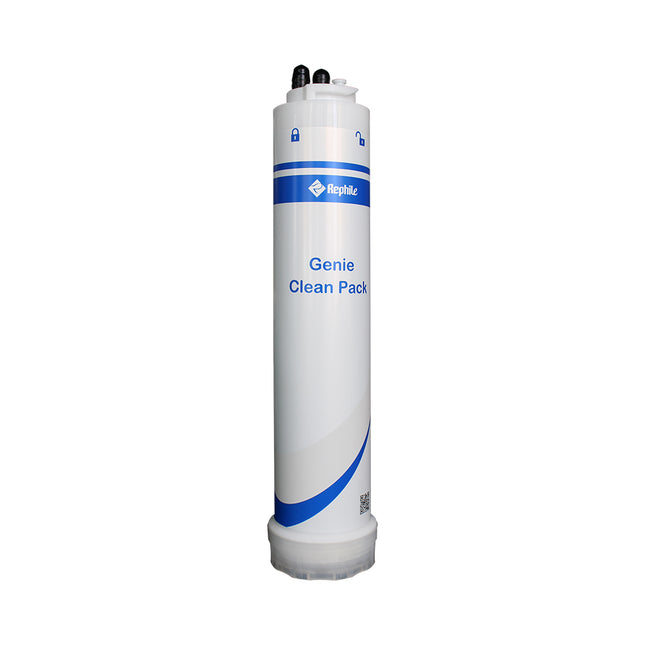

Genie Cleaning Pack used as cleaning pack for Genie water system to clean RO membrane.
Specifications：
Flow rate: ≥2L/min（Feed pressure ≥ 2 bar）
Height: 393.8mm
Diameter: φ90mm
Package Dimensions & Gross Weight:
Length X Depth X Height (mm): 460 X 130 X 130
Gross Weight (kgs): 1.70
Suitable for Genie water systems:
Genie G
Genie U
Genie A
Genie E
Genie R

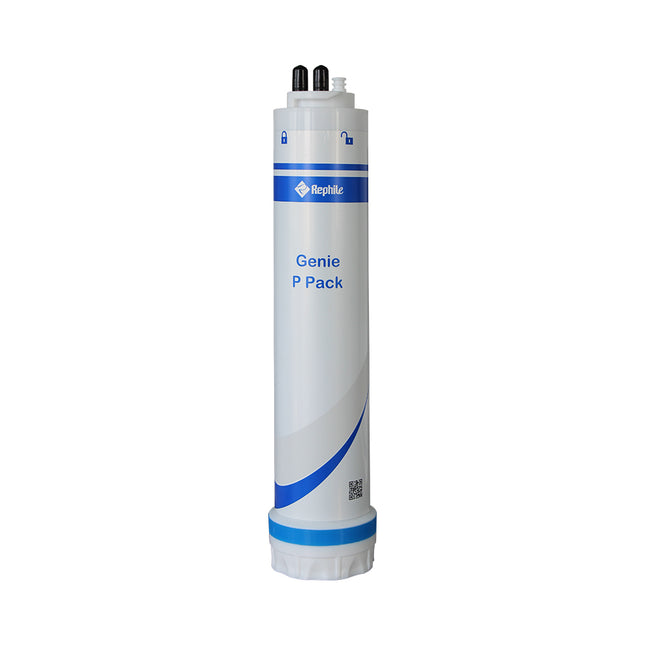

Genie P Pack is designed to remove particles, organic compounds and free chlorine from tap water. This protects the reverse osmosis (RO) membrane against mineral scaling, organic fouling and chlorine oxidation.
Purification Technologies:
Polyphosphate for anti-scaling protection
Activated carbon for free chlorine reduction and bacteriostatic protection
Depth-filtration for particles removal
Technical Specifications:
Burst pressure
≥20bar
Flow rate
≥2L/min（Feed pressure ≥ 2 bar）
Height
393.8mm
Diameter
φ90mm
Suitable for Genie water systems:
Genie G
Genie U
Genie A
Genie E
Genie R
Genie P Pack is designed to remove particles, organic compounds and free chlorine from tap water. This protects the reverse osmosis (RO) membrane against mineral scaling, organic fouling and chlorine oxidation.
Purification Technologies:
Polyphosphate for anti-scaling protection
Activated carbon for free chlorine reduction and bacteriostatic protection
Depth-filtration for particles removal
Technical Specifications:
Burst pressure
≥20bar
Flow rate
≥2L/min（Feed pressure ≥ 2 bar）
Height
393.8mm
Diameter
φ90mm
Suitable for Genie water systems:
Genie G
Genie U
Genie A
Genie E
Genie R

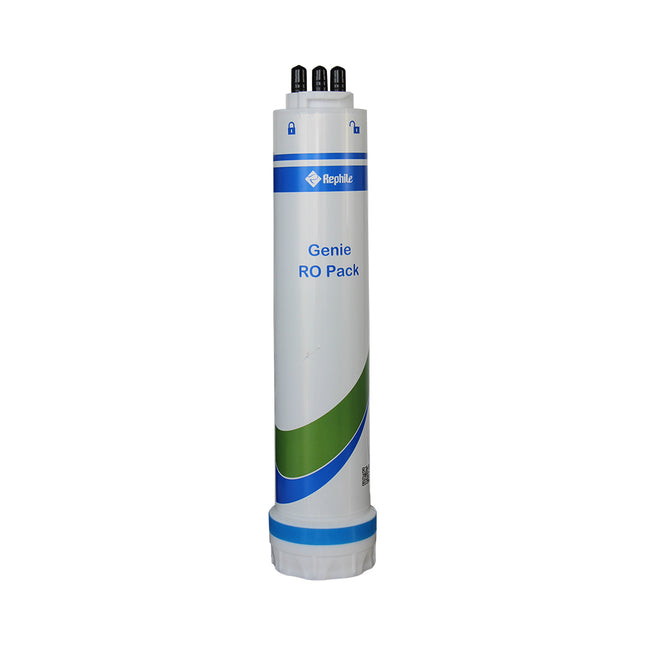

Genie RO Pack is designed to reduce most of the ions, organic carbons and particulates.
Technical Specifications:
Burst pressure
≥20bar
Flow rate
≥16L/min（Feed pressure ≥ 3.4 bar）
Height
393.8mm
Diameter
φ90mm
Purification Technologies
Reverse Osmosis
Suitable for Genie water systems:
Genie G15
Genie U32
Genie A
Genie E15
Genie R32

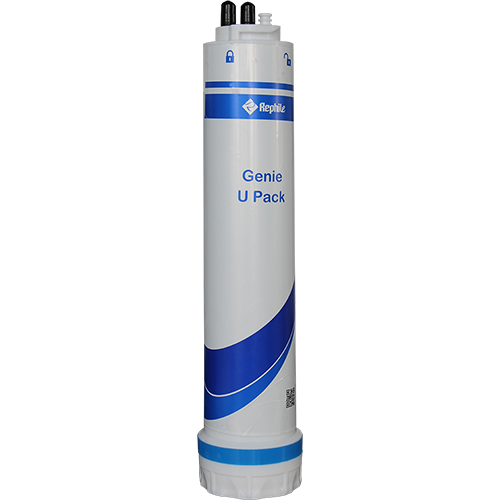

Genie U Pack is designed for removing ionic and organic contaminants below trace level to match the water quality required for your application.
Purification Technologies:
Ion-exchange resins for removing trace level ionic contaminants
Activated carbon for trace level of organic contaminants
Technical Specifications:
Burst pressure
≥20bar
Flow rate
≥2L/min（Feed pressure ≥ 2 bar）
Height
393.8mm
Diameter
φ90mm
Dynamic Capacity
≥30 gNaCl
Suitable for Genie water systems:
Genie G
Genie U
Genie A
Genie PURIST

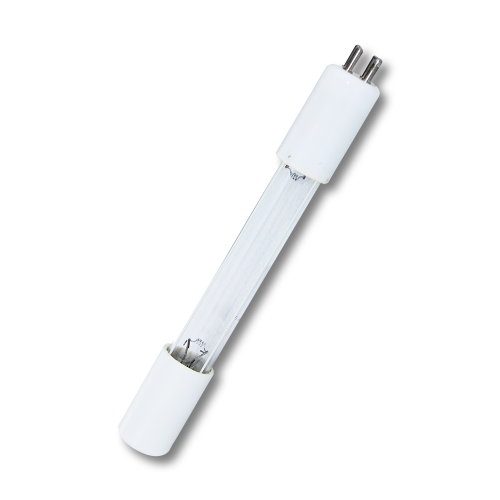

UV Lamp, 254nm for Genie is used to reduce the bacterial count to provide optimum water quality for bacteria-sensitive applications.
Purification Technologies:
Degerming for killing bacteria
Suitable for Genie water systems:
Genie G
Genie E

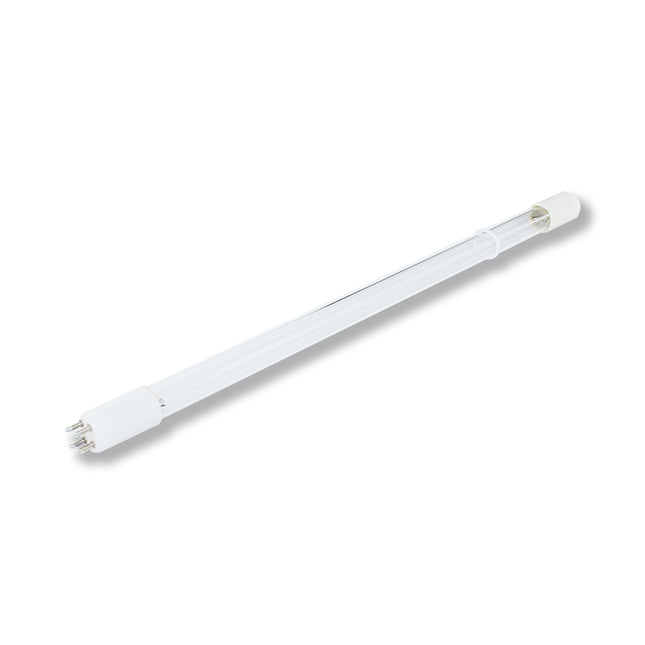

UV Lamp RAUV357B7 is a 185 / 254 nm UV lamp and is used to reduce TOC level in ultrapure water.
Package：1/ PK
Specifications：
wavelength: 185/254 nm
Package Dimensions & Gross Weight
Length X Depth X Height (mm): 430 X 80 X 60
Gross Weight (kgs): 0.30
Suitable for the following water systems:
Genie G Genie U Genie A Genie PURIST
Large Genie G Large Genie U
Super-Genie G (Jan., 2020 – now) Super-Genie U (Jan., 2020 – now)
