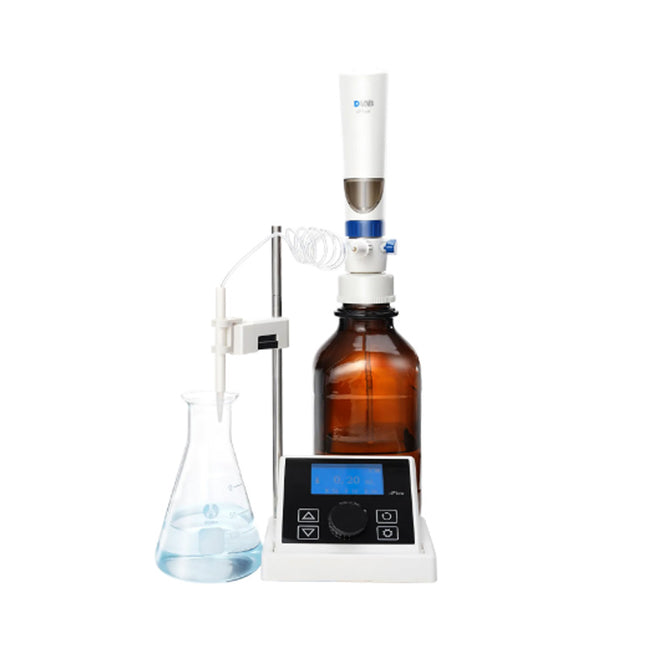

• Motor controlled digital,fatigue free operation• High quality stepper motor provides smooth and accurate dispensing• Adjustable aspiration and dispensing speed• Reagent recovery feature minimizes waste• TFT display module for simple volume selection and control• Two operation modes:continuous dispenser or stepper
Cat. No.
7012300001
Volume Range
0.1-99.9mL, Max piston lift is 10mL, resolution is 100μL
Volume Accuracy
10mL R=0.5% CV=0.3%;5mL R=1.0%
Speed
16 Levels
Operating Temperature Range
15℃-40℃
Quality Control
DIN EN ISO 8655
Control Type
External control
An Electronic Bottle-Top Dispenser is a highly useful device in various fields. It is designed to accurately dispense liquids from bottles.
This type of dispenser typically utilizes Electronic Bottle-Top Dispenser to control the amount of liquid being dispensed. It offers several advantages over traditional manual dispensers. For example, it can provide more precise measurements, which is crucial in laboratory settings where accurate volumes of reagents are required. In the medical field, it can ensure the correct dosage of medications when dispensing liquid drugs from bottles.
Moreover, the Electronic Bottle-Top Dispenser often has features like adjustable dispensing volumes, allowing users to set the desired amount according to their specific needs. It may also come with a digital display that shows the volume dispensed or the remaining volume in the bottle. This not only improves efficiency but also reduces the risk of human error in the dispensing process.

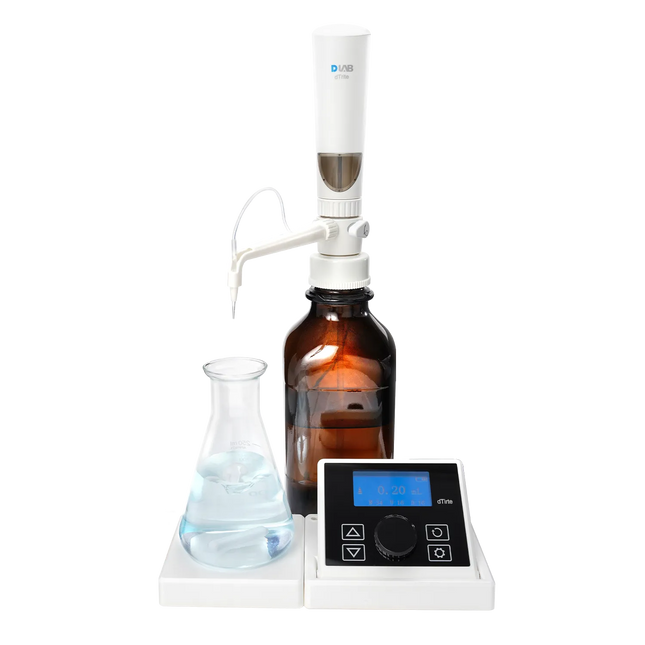

High quality motor with excellent precision and accuracy
Electronic control provides fatigue-free operation
Remote control panel prevents manual disturbance during operation
Built-in magnetic stirrer for a complete and easy operation
Large LCD display parameters
Product Parameters
Volume Range
0.01mL-99.99mL, Max piston lift is 10mL, resolution is 10μL
Volume Accuracy
10mL R=0.2% CV=0.07%;5mL R=0.2% CV=0.1%;1mL R=1% CV=0.5%
Speed
16 Levels
Operating Temperature Range
15°C-40°C
Quality Control
CDIN EN ISO 8655
Control Type
External control, including the stirrer and the burette program
