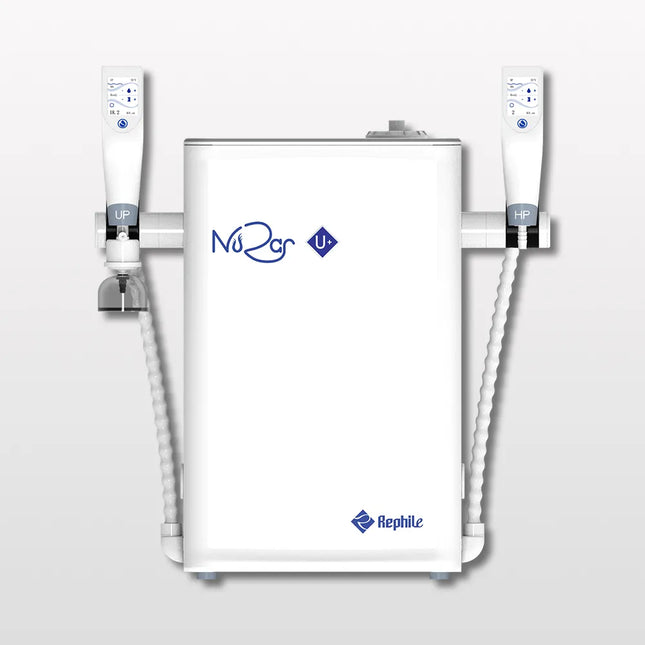

NuZar U Light water system set, produces ultrapure water (Type I water) and RO water from tap water directly. Quality of ultrapure water meets or exceeds ASTM, CLSI, CAP, and ISO Type I water standards. The NuZar water purification systems are compact and powerful. They are specifically designed for laboratories that demand a balance between cost of ownership and exceeding their purified water requirements. The system is CE/RoHS certified. RephiLe provides full documents support to meet user's GMP, GSP, GAP, GCP, GLP requirements. General Specifications Operating voltage 24 VDC Input voltage 100 – 240 VAC Main system power < 190 W Feed Water Requirements Feed water Tap water Feed water conductivity / TDS < 2000 μS/cm/ < 1000 ppm Operating temperature 5 – 35 °C Feed water pressure 1 – 6 bar psi (15 – 90) Product Water Quality Ultrapure water dispensing rate Up to 2 L/min Ultrapure water resistivity (@25°C) 18.2 MΩ­·cm Ultrapure water TOC < 5 ppb* Particles in ultrapure water No Particles with size > 0.22 μm (with a 0.2 μm final filter or RephiBio filter) Microorganisms in ultrapure water < 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter) Pyrogens (endotoxins) in ultrapure water < 0.001 Eu/ml (with a RephiBio filter) RNase in ultrapure water < 0.5 pg/ml (with a RephiBio filter) DNase in ultrapure water < 10 pg/ml (with a RephiBio filter) RO production rate 24 L/hr RO water dispensing rate Up to 2 L/min RO water conductivity  (@25°C) Typically < 20 μS/cm RO rejection 97 to 98% ionic rejection (new RO cartridge)> 99% organic rejection> 99% particulates & bacteria rejection Dimensions Main system dimensionsWidth × depth × height w/ 10L tank 491 x 422 x 624 mm (19.3 x 16.6 x 24.5 in) Main system dimensionsWidth × depth × height w/o 10L tank 491 x 310 x 624 mm (19.3 x 12.2 x 24.5 in) Dispenser dimensions Width × depth × height 21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in) Weight (Net approx) 21 kg Weight (Gross approx) 30 kg *When TOC Level of feed water is < 50 ppb.

Read more less

NuZar U24 water system set, produces ultrapure water (Type I water) and RO water from tap water directly. Quality of ultrapure water meets or exceeds ASTM, CLSI, CAP, and ISO Type I water standards. The NuZar water purification systems are compact and powerful. They are specifically designed for laboratories that demand a balance between cost of ownership and exceeding their purified water requirements. The system is CE/RoHS certified. RephiLe provides full documents support to meet user’s GMP, GSP, GAP, GCP, GLP requirements. General Specifications Operating voltage 24 VDC Input voltage 100 – 240 VAC Main system power < 190 W Feed Water Requirements Feed water Tap water Feed water conductivity / TDS < 2000 μS/cm/ < 1000 ppm Operating temperature 5 – 35 °C Feed water pressure 1 – 6 bar psi (15 – 90) Product Water Quality Ultrapure water dispensing rate Up to 2 L/min Ultrapure water resistivity (@25°C) 18.2 MΩ­·cm Ultrapure water TOC < 5 ppb* Particles in ultrapure water No Particles with size > 0.22 μm (with a 0.2 μm final filter or RephiBio filter) Microorganisms in ultrapure water < 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter) Pyrogens (endotoxins) in ultrapure water < 0.001 Eu/ml (with a RephiBio filter) RNase in ultrapure water < 0.5 pg/ml (with a RephiBio filter) DNase in ultrapure water < 10 pg/ml (with a RephiBio filter) RO production rate 24L/hr RO water dispensing rate Up to 2 L/min RO water conductivity  (@25°C) Typically < 20 μS/cm RO rejection 97 to 98% ionic rejection (new RO cartridge)> 99% organic rejection> 99% particulates & bacteria rejection Dimensions Main system dimensionsWidth × depth × height w/ 10L tank 491 x 422 x 624 mm (19.3 x 16.6 x 24.5 in) Main system dimensionsWidth × depth × height w/o 10L tank 491 x 310 x 624 mm (19.3 x 12.2 x 24.5 in) Dispenser dimensions Width × depth × height 21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in) Weight (Net approx) 21 kg Weight (Gross approx) 30 kg *When TOC Level of feed water is < 50 ppb.
