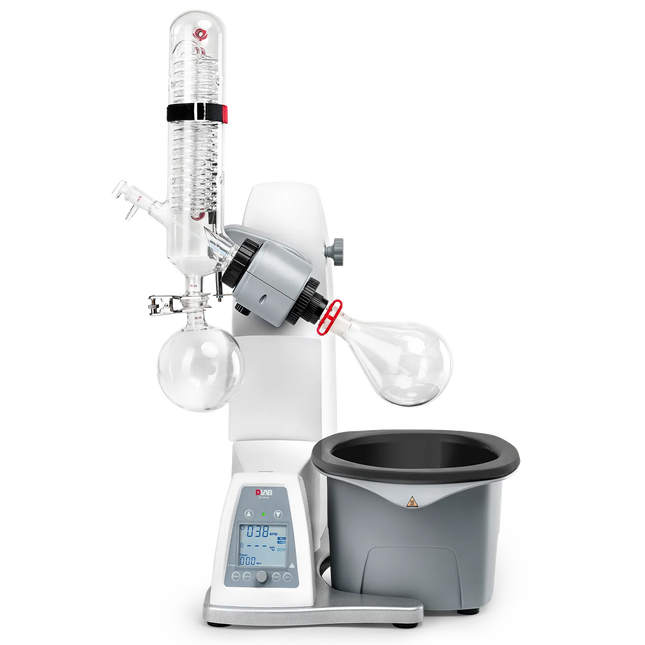

Rotary Evaporator including main unit, heating bath and vertical glassware set 18900173 (condenser (1700 cm²) , evaporatiion (1000ml) and receiving flask (1000ml)
Digital LCD display of both rotation speed and heating temperature allows for optimal control of all distillation processes
Automatic motor lift releases the evaporating flask to a safe position in case of power failure
5L heating bath with wide temperature range from room temperature to 180°C Water/oil heating mode can be changed only through a switch
Overheating protection temperature at 220 °C
Boil-dry protection, automatically power off if heating without water/oil in the heating bath
Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
Condenser (cooling surface 1700cm²) with excellent cooling effect
Ejection mechanism ensures easy removal of evaporating flask
Patented double spring sealing ring made of PTFE provides an excellent sealing performance
Optional glassware with explosion proof film available
Product Parameters
Evaporating flask volume
50-3000mL
Temperature range
Room temp.-180°C
Temperature control accuracy
water: ± 1°C ;oil: ±3°C
Speed range
20-280rpm
Direction of Rotation
Clockwise and counterclockwise
Evaporation capacity
Max.1.56L/h(H20)
Temperature control
Micro processer PID control
Display
LCD
Timer
Yes
Time Setting Range
1-999min
Lifting mode
Motorized
Lifting stroke
150mm
Motor Type
Brushless DC motor
Heating Power
1300W
Power
1400W
Voltage/Frequency
100-120/200-240V,50/60Hz
Dimension[D×W×H]
465×457×583mm
Weight
15kg
Permissible ambient temperature
5-40°C
Permissible ambient humidity
≤80% RH
Protection Class
IP20
USB Interface
Yes
Safety features
Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
Applications
Chemical research, pharmaceutical manufacturing, food processing, cosmetics manufacturing, and chemical laboratories.
