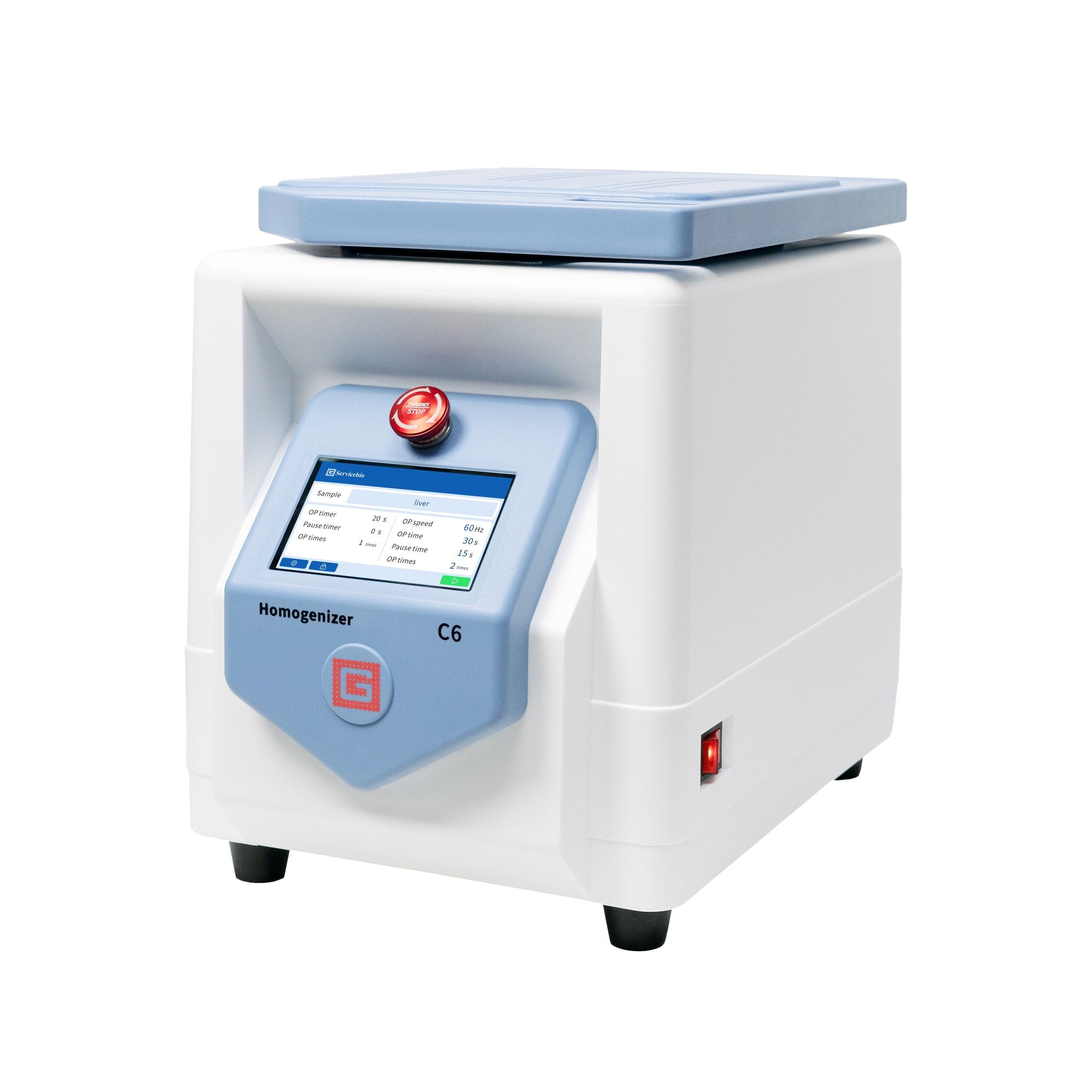

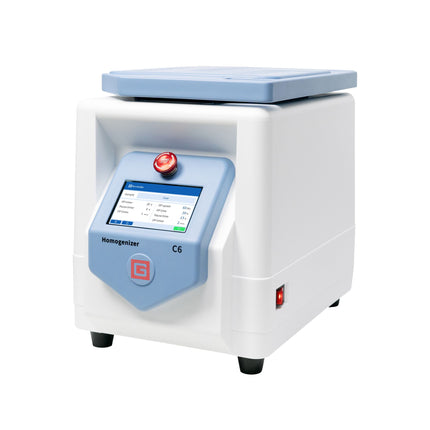

Tissue Homogenizer (Vertical, 24 samples)

    Description

    Introduction

    The tissue homogenizer utilizes a vertical shock system with high-speed reciprocating motion to make the frozen samples in the grinding tube collide with the grinding beads, The resulting grinding shear force and impact force completely crush the tissues, making it a specialized device for rapid one-time processing of multiple samples in research institutions, universities and agricultural, biomedical, food testing fields.

    Features:

    1. Linear guide rail, stable and durable, capable of continuous grinding for 24 hours
    2. Capable of processing up to 24 samples at a time
    3. Adapter module can be pre-cooled at low temperature to reduce Β sample degradation

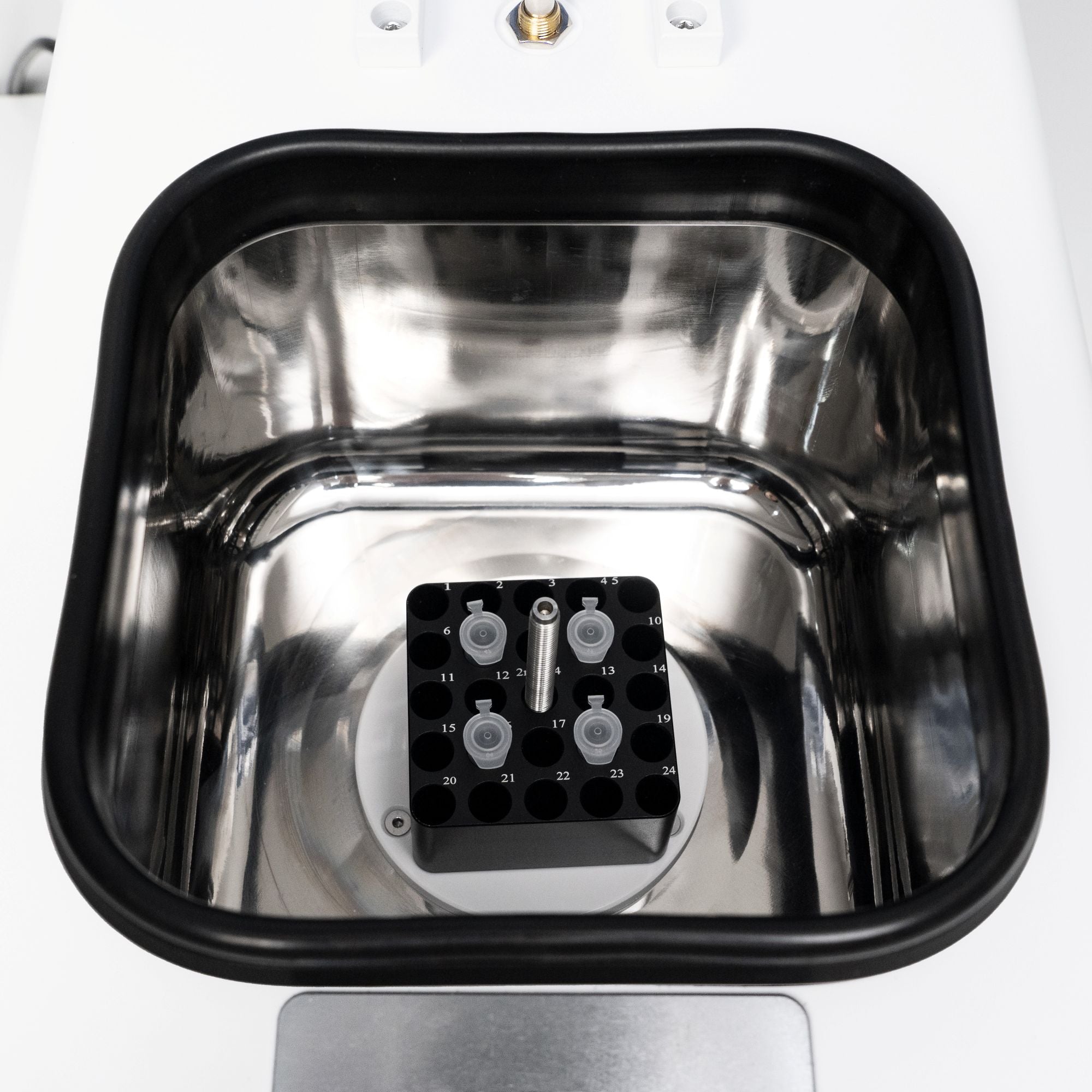

    4. Multiple adapters are optional
    5. Compact and sleek appearance

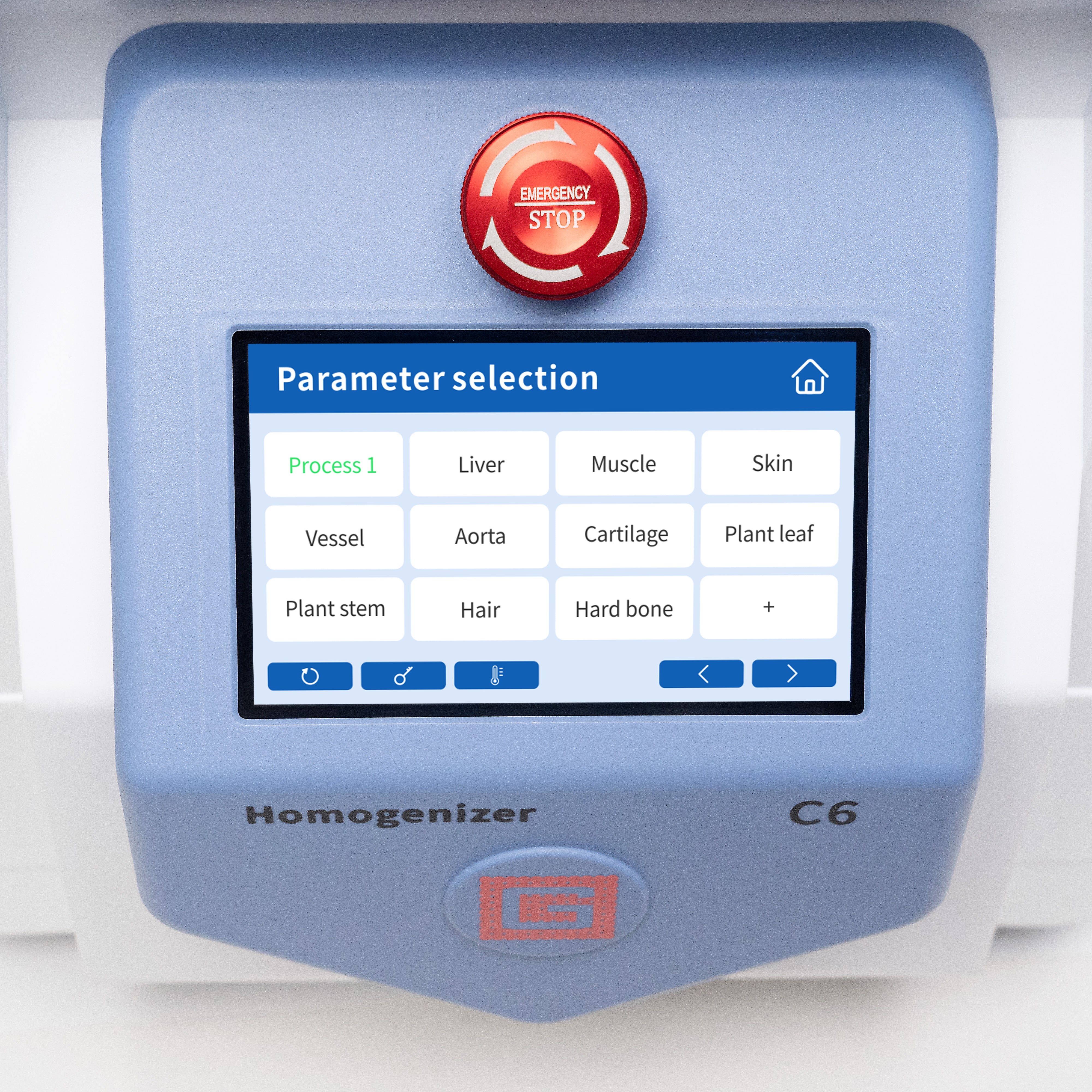

    Parameter settings and reference for grinding beads

    Tissues Grinding Beads Grinding Time Pause Time Cycle Number Frequency
    Liver and Spleen 4mm*1
    3mm*1
    30s 15s 2 60Hz
    Muscle 4mm*2
    3mm*2
    45s 15s 2 60Hz
    Skin 4mm*2
    3mm*3
    60s 20s 4 70Hz
    Blood Vessel 4mm*2
    3mm*2
    60s 15s 3 70Hz
    Aorta 4mm*2
    3mm*3
    60s 15s 4 70Hz
    Soft Bone 4mm*2
    3mm*3
    60s 20s 5 70Hz
    Plant Leaf 4mm*1
    3mm*2
    45s 15s 3 60Hz
    Plant Stem 4mm*1
    3mm*2
    60s 15s 3 60Hz
    Hair 4mm*2
    3mm*3
    90s 20s 4 70Hz
    Hard Bone 4mm*2
    3mm*3
    90s 30s 5 70Hz

    *It is recommended to use steel grinding beads for protein extraction and zirconia grinding beads for RNA extraction.

    Notes

    1. When using 4mm grinding beads or large grinding beads, it is necessary to use a 2mL U-bottom tube. Β 1.5mL conical tube may cause obstruction, affecting the grinding effect (it is recommended to use our 2ml centrifuge tubes, which have thicker walls and higher material strength, suitable for grinding, SKU: TUBE0020-H).
    2. The tissue size is preferably below 1-3mm, and the weight should be within 100mg.
    3. If you want to reuse the grinding beads, it is recommended to soak them in absolute ethanol for 15 minutes before use, then filter out the grinding beads and dry them for future use.
    4. To prevent sample degradation while ensuring the grinding effect, the following principles should be followed:
      1. Minimize the number of grinding beads used
      2. Minimize the grinding time
    5. When using the instrument, ensure that the load on both sides of the adapter is balanced, and do not use it unilaterally.
    6. To protect the internal circuitry and mechanics of the instrument, do not rinse it with running water. Use a damp cloth to clean it.
    7. If any abnormality occurs during use, immediately disconnect the power and contact a professional for handling.
    8. The instrument must be placed on a horizontal and flat laboratory bench to prevent vibration during operation.

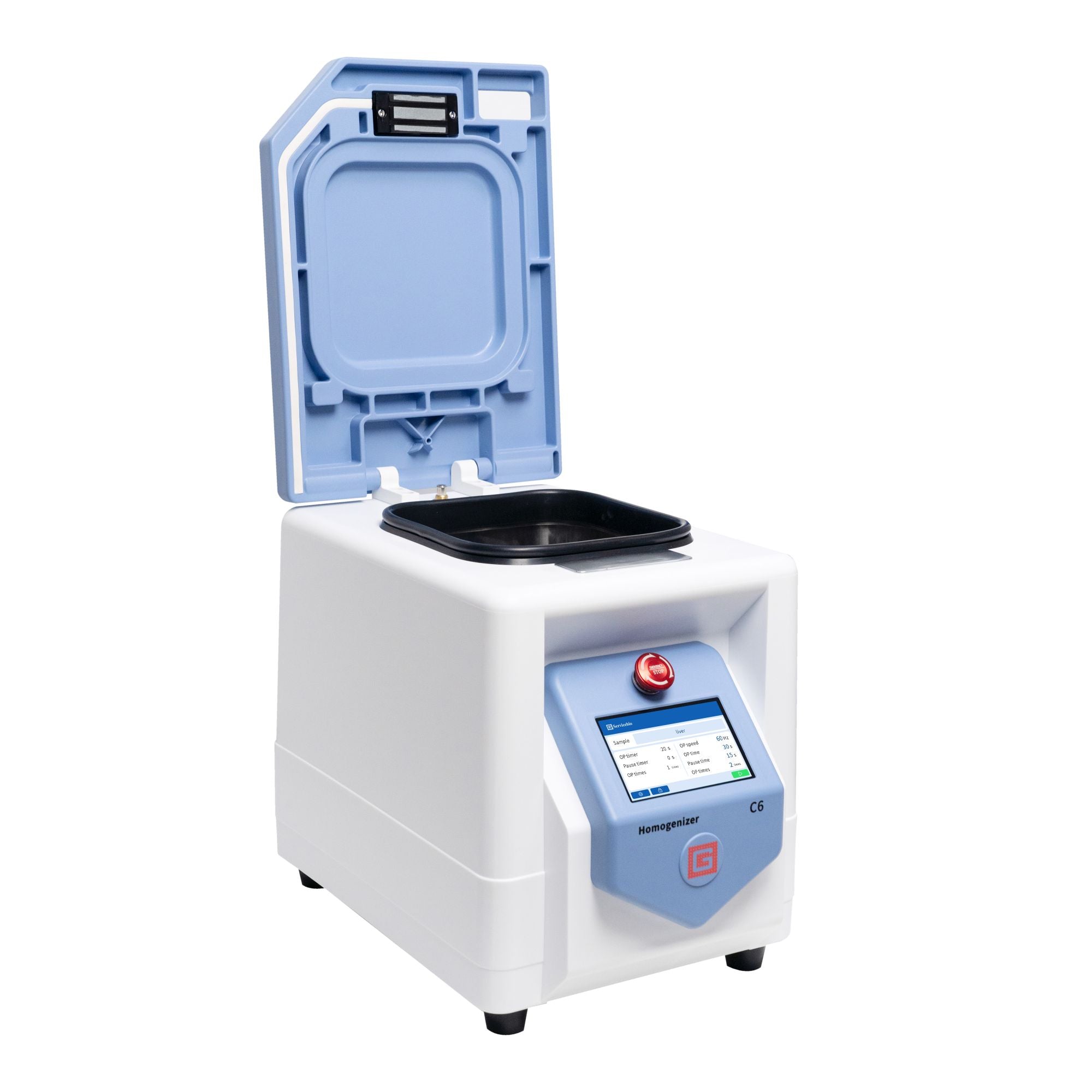

    9. After ensuring that the adapter and fastening screws are correctly installed, close the top cover and start the instrument.
    Product form

    SKU: THV-C6

    Tissue Homogenizer (Vertical, 24 samples)

      Introduction The tissue homogenizer utilizes a vertical shock system with high-speed reciprocating motion to make the frozen samples in the... Read more

      $3,700.00

      Free pickup in our shop(s)
            Want a Bulk Order? Contact us!

          Our team is available Monday through Friday from 9:00am-5:30pm PST.

          Send us a message!

            Instruction Manual

          Description

          Introduction

          The tissue homogenizer utilizes a vertical shock system with high-speed reciprocating motion to make the frozen samples in the grinding tube collide with the grinding beads, The resulting grinding shear force and impact force completely crush the tissues, making it a specialized device for rapid one-time processing of multiple samples in research institutions, universities and agricultural, biomedical, food testing fields.

          Features:

          1. Linear guide rail, stable and durable, capable of continuous grinding for 24 hours
          2. Capable of processing up to 24 samples at a time
          3. Adapter module can be pre-cooled at low temperature to reduce Β sample degradation
          4. Multiple adapters are optional
          5. Compact and sleek appearance


          Parameter settings and reference for grinding beads

          Tissues Grinding Beads Grinding Time Pause Time Cycle Number Frequency
          Liver and Spleen 4mm*1
          3mm*1
          30s 15s 2 60Hz
          Muscle 4mm*2
          3mm*2
          45s 15s 2 60Hz
          Skin 4mm*2
          3mm*3
          60s 20s 4 70Hz
          Blood Vessel 4mm*2
          3mm*2
          60s 15s 3 70Hz
          Aorta 4mm*2
          3mm*3
          60s 15s 4 70Hz
          Soft Bone 4mm*2
          3mm*3
          60s 20s 5 70Hz
          Plant Leaf 4mm*1
          3mm*2
          45s 15s 3 60Hz
          Plant Stem 4mm*1
          3mm*2
          60s 15s 3 60Hz
          Hair 4mm*2
          3mm*3
          90s 20s 4 70Hz
          Hard Bone 4mm*2
          3mm*3
          90s 30s 5 70Hz

          *It is recommended to use steel grinding beads for protein extraction and zirconia grinding beads for RNA extraction.

          Notes

          1. When using 4mm grinding beads or large grinding beads, it is necessary to use a 2mL U-bottom tube. Β 1.5mL conical tube may cause obstruction, affecting the grinding effect (it is recommended to use our 2ml centrifuge tubes, which have thicker walls and higher material strength, suitable for grinding, SKU: TUBE0020-H).
          2. The tissue size is preferably below 1-3mm, and the weight should be within 100mg.
          3. If you want to reuse the grinding beads, it is recommended to soak them in absolute ethanol for 15 minutes before use, then filter out the grinding beads and dry them for future use.
          4. To prevent sample degradation while ensuring the grinding effect, the following principles should be followed:
            1. Minimize the number of grinding beads used
            2. Minimize the grinding time
          5. When using the instrument, ensure that the load on both sides of the adapter is balanced, and do not use it unilaterally.
          6. To protect the internal circuitry and mechanics of the instrument, do not rinse it with running water. Use a damp cloth to clean it.
          7. If any abnormality occurs during use, immediately disconnect the power and contact a professional for handling.
          8. The instrument must be placed on a horizontal and flat laboratory bench to prevent vibration during operation.
          9. After ensuring that the adapter and fastening screws are correctly installed, close the top cover and start the instrument.
