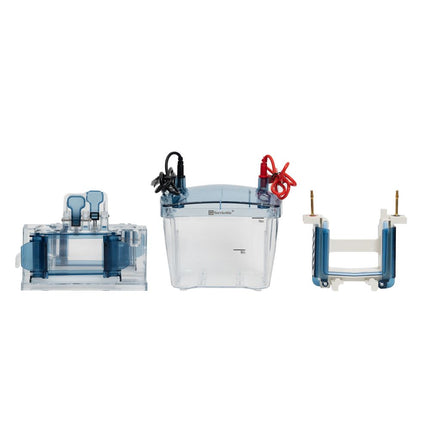

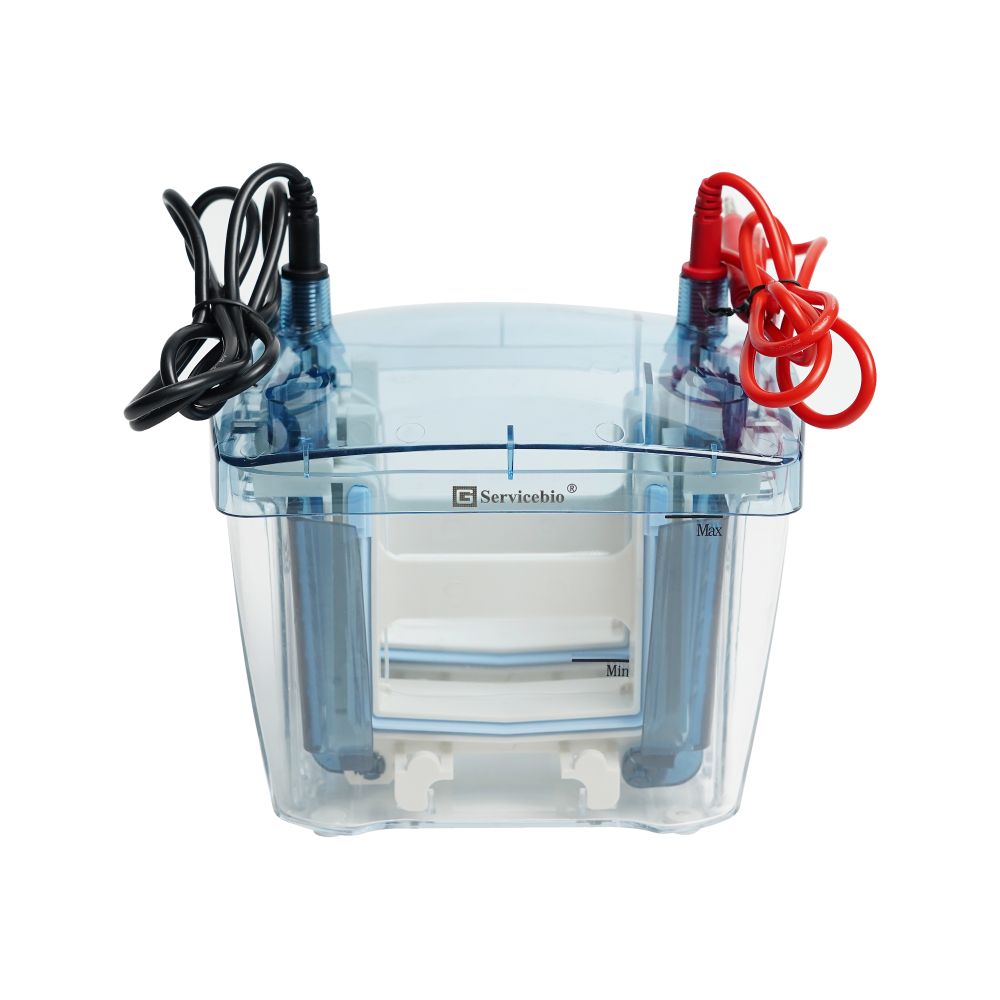

Electrophoresis System For Protein Gels (Up to 4 Gels)

    Description

    • It adopts a separate gel preparation mode for stable and reliable performance, while being compatible with the electrophoresis requirements of prefabricated gel products of this model and specification.
    • The uniquely designed gel preparation frame is compact and space-saving, allowing for flexible combination and full utilization of space.
    • It can be adapted to various thicknesses of glass plates and sample combs (1.5mm, 1mm, 0.75mm), meeting different usage requirements.
    • It allows for simultaneous electrophoresis of two or four gels.
    • It can be used in conjunction with BVT-4 transfer electrophoresis instruments.
    Gel Size 1-4
    Gel Size 83 X 73mm
    External Dimensions 140 x 180 x 185mm
    Comb Specifications

    1.0 mm : 11 teeth / 15 teeth

    1.5mm: 11 teeth / 15 teeth

    0.75 mm: 11 teeth / 15 teeth
    Maximum Buffer Capacity

    1.5 L



    Read more

    Product form

    SKU: BVE-4

    Electrophoresis System For Protein Gels (Up to 4 Gels)

      It adopts a separate gel preparation mode for stable and reliable performance, while being compatible with the electrophoresis requirements of... Read more

      $435.00 $348.00

      Free pickup in our shop(s)
        • Shipped today? Order within: Nov 17, 2025 15:00:00 -0800
          Want a Bulk Order? Contact us!

        Our team is available Monday through Friday from 9:00am-5:30pm PST.

        Send us a message!

          Instruction Manual

        Description

        • It adopts a separate gel preparation mode for stable and reliable performance, while being compatible with the electrophoresis requirements of prefabricated gel products of this model and specification.
        • The uniquely designed gel preparation frame is compact and space-saving, allowing for flexible combination and full utilization of space.
        • It can be adapted to various thicknesses of glass plates and sample combs (1.5mm, 1mm, 0.75mm), meeting different usage requirements.
        • It allows for simultaneous electrophoresis of two or four gels.
        • It can be used in conjunction with BVT-4 transfer electrophoresis instruments.
        Gel Size 1-4
        Gel Size 83 X 73mm
        External Dimensions 140 x 180 x 185mm
        Comb Specifications

        1.0 mm : 11 teeth / 15 teeth

        1.5mm: 11 teeth / 15 teeth

        0.75 mm: 11 teeth / 15 teeth
        Maximum Buffer Capacity

        1.5 L
