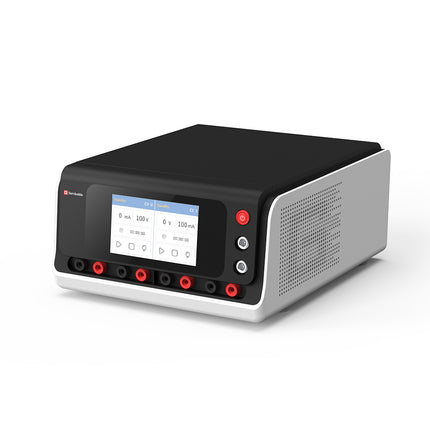

Electrophoresis Power Supply (Dual Module, Programmable)

    Description

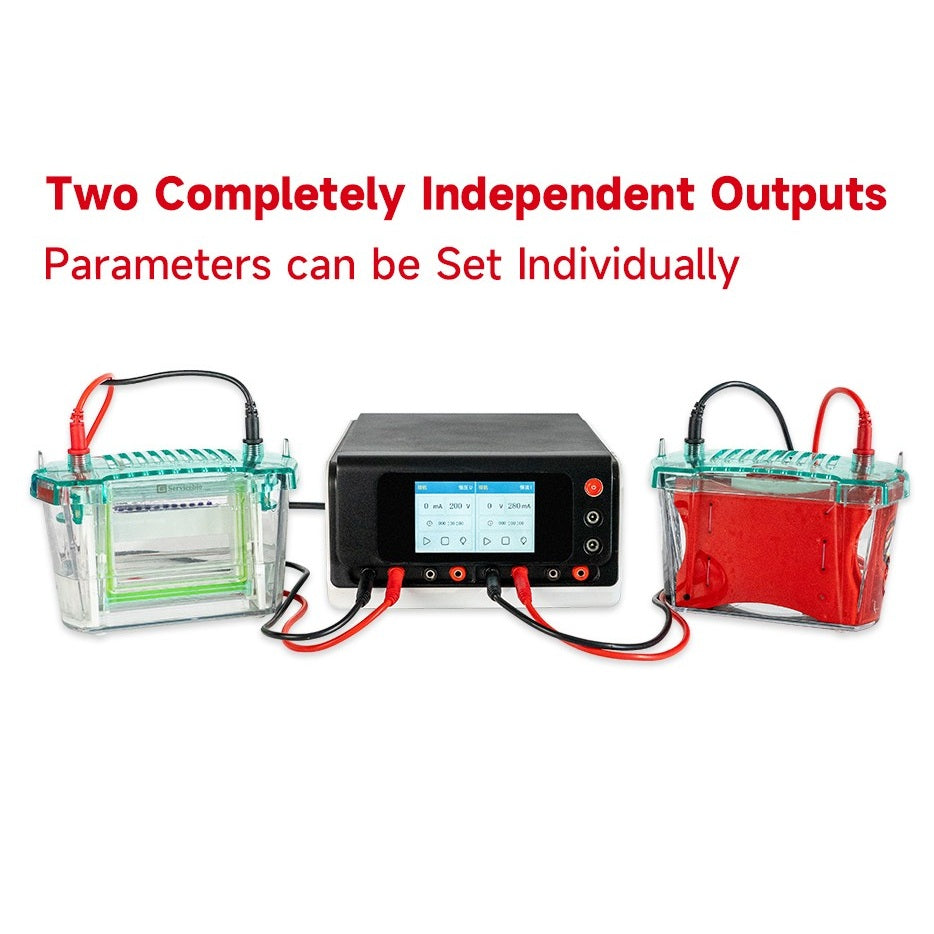

    1. Completely independent dual outputs, with the ability to set parameters separately.
    2. Programmable function, capable of setting four working modes: constant voltage, constant current, voltage gradient, and current gradient.

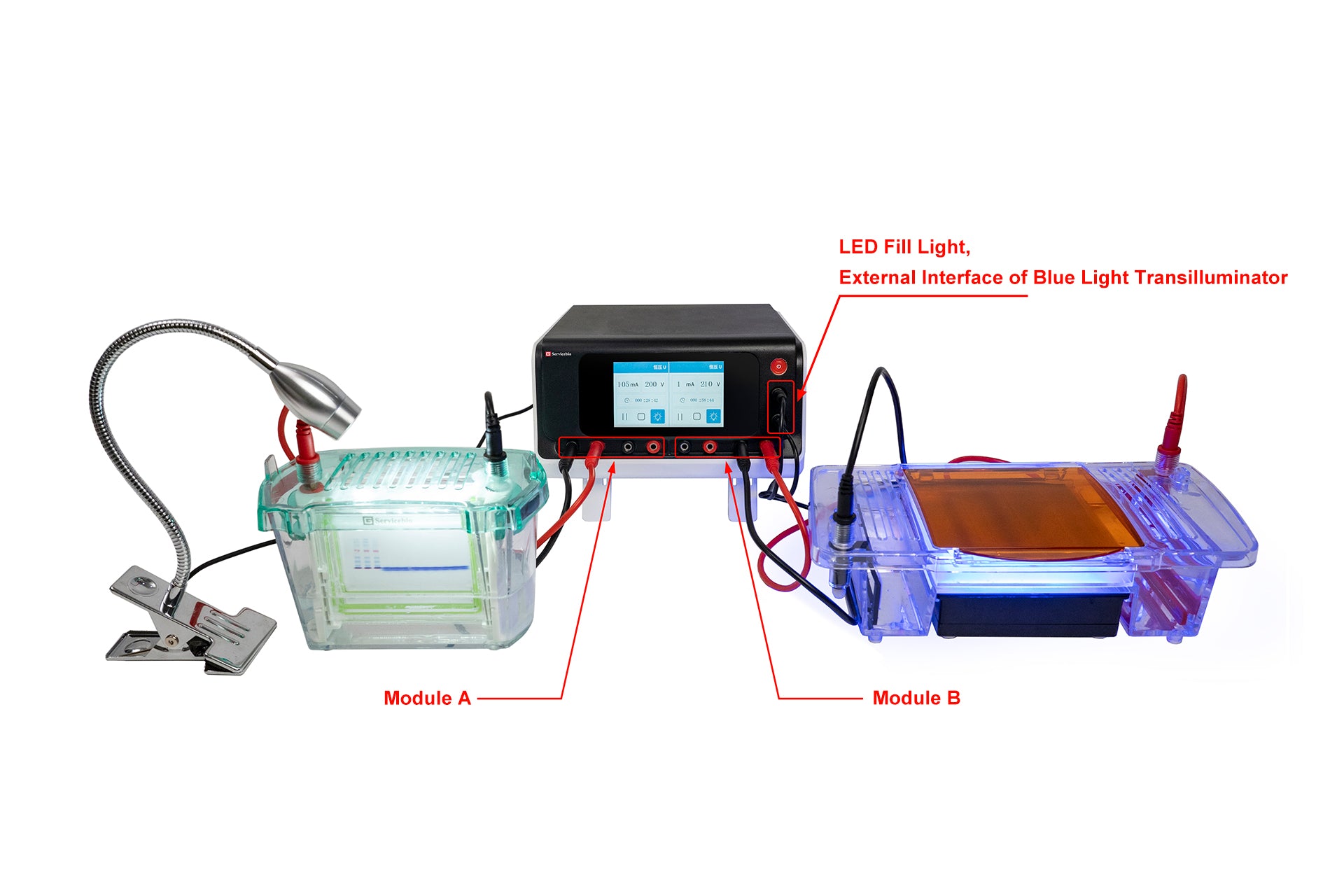

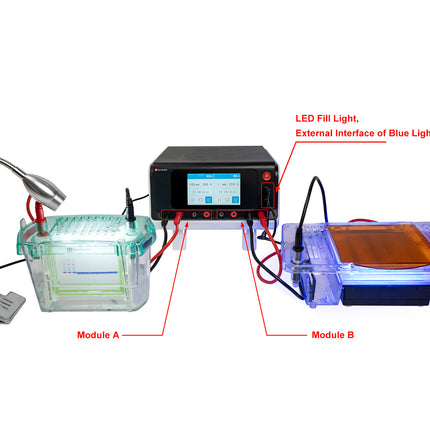

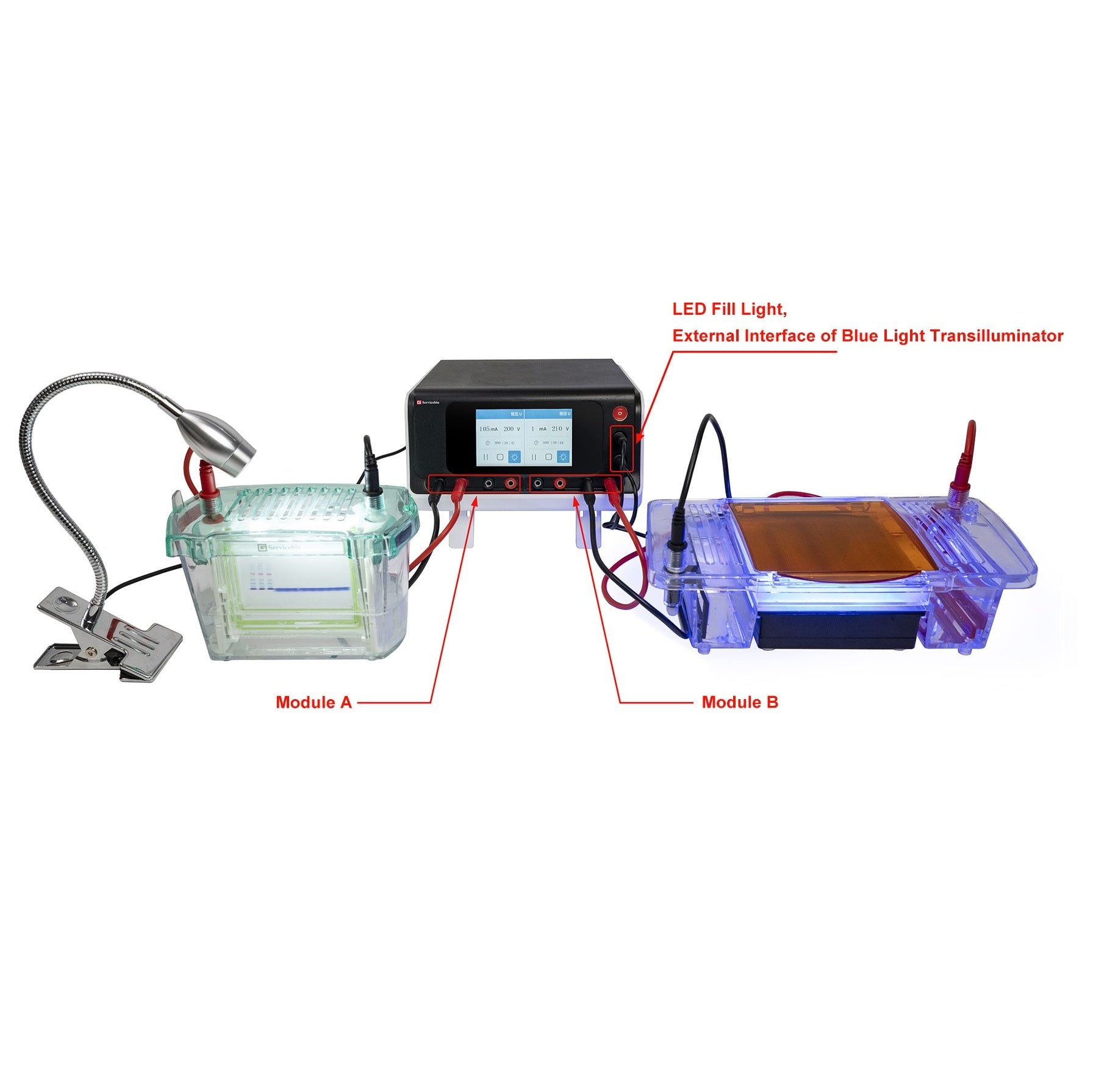

    3. Additional two sets of 12V outputs, suitable for use with blue light illuminator, gel loading lamps, and can be controlled separately.
    4. Equippend with multiple abnormality alerts, including overvoltage, overcurrent, overload, variable load, and no load.

    Specifications

    SKU SPW-DSE
    Channel
    		 Independent dual channels, a total of 6 groups of output ports.
    Terminal The left and right sets of independent dual power supply outputs can also be independently controlled without interfering with each other.
    Temperature 4-35°C
    Parameters 500V, 500mA, 250W
    Voltage Range 6-500V
    Current Range 6mA-500mA
    Type Constant voltage, constant current, gradient voltage, gradient current
    Timing Range 0-99h60min
    Pause/Resume Function YES
    Programmable method Gradient voltage, gradient current, three steps
    Power off memory function YES
    Screen size 4 inches
    Input Power AC 180-240V/110-120V, 50/60HZ
    Size 265*215*120mm
    Net Weight 2.25KG

    Read more

    Product form

    SKU: SPW-DSE

    Electrophoresis Power Supply (Dual Module, Programmable)

      Completely independent dual outputs, with the ability to set parameters separately. Programmable function, capable of setting four working modes: constant... Read more

      $950.00 Excl. VAT

      Free pickup in our shop(s)
            Want a Bulk Order? Contact us!

          Our team is available Monday through Friday from 9:00am-5:30pm PST.

          Send us a message!

            Instruction Manual

          Description

          1. Completely independent dual outputs, with the ability to set parameters separately.
          2. Programmable function, capable of setting four working modes: constant voltage, constant current, voltage gradient, and current gradient.
          3. Additional two sets of 12V outputs, suitable for use with blue light illuminator, gel loading lamps, and can be controlled separately.
          4. Equippend with multiple abnormality alerts, including overvoltage, overcurrent, overload, variable load, and no load.

          Specifications

          SKU SPW-DSE
          Channel
          		 Independent dual channels, a total of 6 groups of output ports.
          Terminal The left and right sets of independent dual power supply outputs can also be independently controlled without interfering with each other.
          Temperature 4-35°C
          Parameters 500V, 500mA, 250W
          Voltage Range 6-500V
          Current Range 6mA-500mA
          Type Constant voltage, constant current, gradient voltage, gradient current
          Timing Range 0-99h60min
          Pause/Resume Function YES
          Programmable method Gradient voltage, gradient current, three steps
          Power off memory function YES
          Screen size 4 inches
          Input Power AC 180-240V/110-120V, 50/60HZ
          Size 265*215*120mm
          Net Weight 2.25KG
