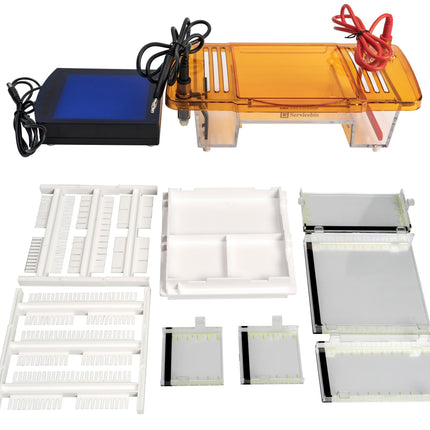

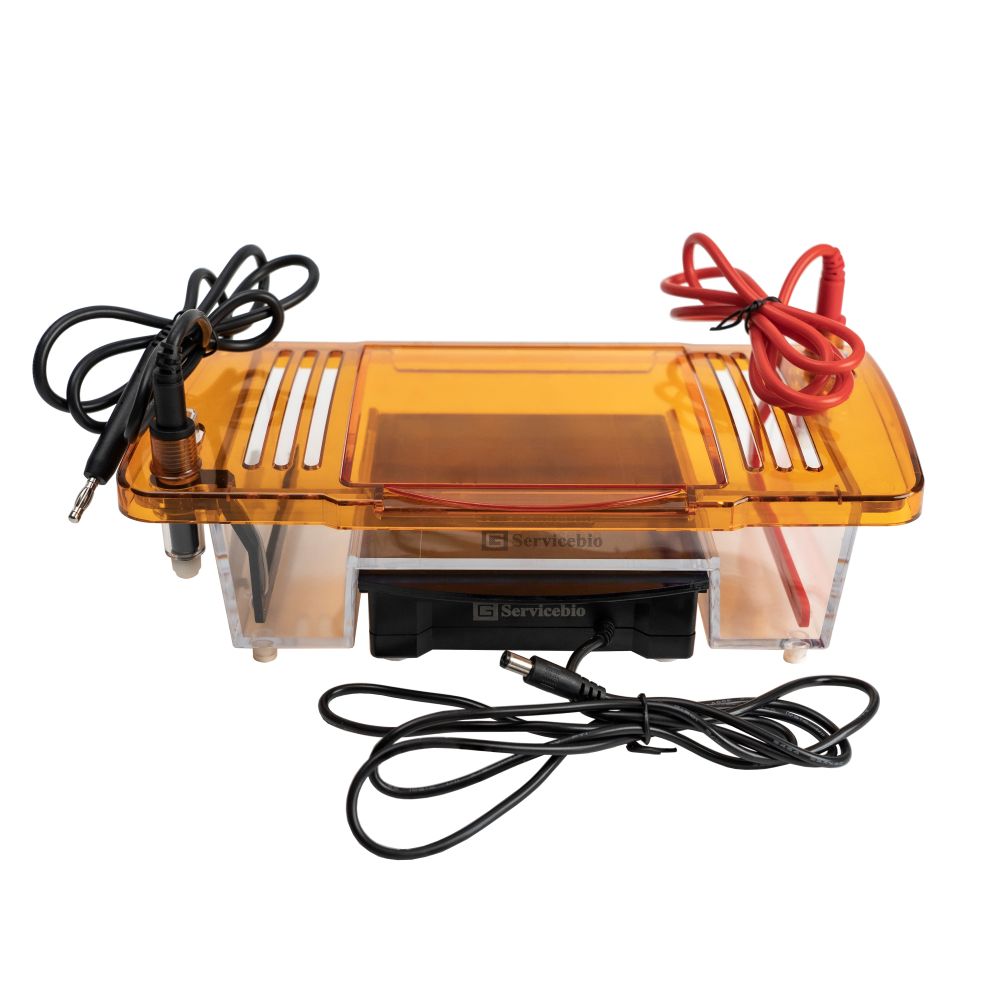

Electrophoresis System for Agarose Gels, with LED

    Description

    • Standard blue light transilluminator is used to directly observe the DNA or RNA bands during the electrophoresis.
    • Four different sizes of gels can be made with the gel mold and trays included.
    • The transparent cover has venting holes, keeping the cover clear for observation.
    • The electrode holder and electrode head are detachable, which is convenient for cleaning and maintenance..

    Product Specifications

    Dimensions (LXWXH) 310X150X120 mm
    Blue light wavelength 470 nm
    Gel tray dimensions

    Large gel 120mm x 120 mm

    Wide gel 60 mm x 120 mm

    Long gel 120mm x 60 mm

    Small gel 60mm x 60mm

    Comb specifications

    1.0mm 25/11 t6 teeh

    1.5mm 13/6 teeth

    2,0mm 3/2 teeth

    Buffer volume 260 mL
    Weight 1 kg



    Product form

    SKU: SVL-2

    Electrophoresis System for Agarose Gels, with LED

      Standard blue light transilluminator is used to directly observe the DNA or RNA bands during the electrophoresis. Four different sizes... Read more

      $480.00

      Free pickup in our shop(s)
        • Shipped today? Order within: Nov 17, 2025 15:00:00 -0800
          Want a Bulk Order? Contact us!

        Our team is available Monday through Friday from 9:00am-5:30pm PST.

        Send us a message!

          Instruction Manual

        Description

        • Standard blue light transilluminator is used to directly observe the DNA or RNA bands during the electrophoresis.
        • Four different sizes of gels can be made with the gel mold and trays included.
        • The transparent cover has venting holes, keeping the cover clear for observation.
        • The electrode holder and electrode head are detachable, which is convenient for cleaning and maintenance..

        Product Specifications

        Dimensions (LXWXH) 310X150X120 mm
        Blue light wavelength 470 nm
        Gel tray dimensions

        Large gel 120mm x 120 mm

        Wide gel 60 mm x 120 mm

        Long gel 120mm x 60 mm

        Small gel 60mm x 60mm

        Comb specifications

        1.0mm 25/11 t6 teeh

        1.5mm 13/6 teeth

        2,0mm 3/2 teeth

        Buffer volume 260 mL
        Weight 1 kg
