- 10.1-inch large screen new Ul interface, divided into single-channel / dual-channel three channel, to meet differentexperimental requirements
- With advanced gradient temperature control technology, high-perfomance and long lasting Peltier refrigeration andheating,which can achieve precise temperature control in zones.
- Multi-channel module design, can run several diferent PCR gradient programs at the sametime, to achievemulti-purpose machine
- Self-adaptive pressure lever hot cap, close and tighten the cap in one step, can be adapted to different heights of testtubes
- Supports up to 199 cycles to perform the next operation, and runs a countdown disc to visually display the remainingtime
- Edge temperature compensation technology for good temperature uniformity and gradient settings for easy optimisationof expenmental conditions
- Real-time display of the running status ofthe programme, you can set the security account and password according to customer demand
- Automatic power failure protection, automatically execute unfinished cycles after power restoration to ensure the safeoperation ofthewhole amplification process.
- Hot lid temperature and hot lid operating mode can be set to meet different experimental application requirements
- USB interface, support for U-disk storage/reading PCR data, support for U-disk software update, can be customised tomeet the function of multiple file storage, support for Touch down PCR and Long PCR experiments
- Compatible with common 0.2ml PCR tubes, PCR-8Strips and 96-well PCR plates (no skirt, half skirt)

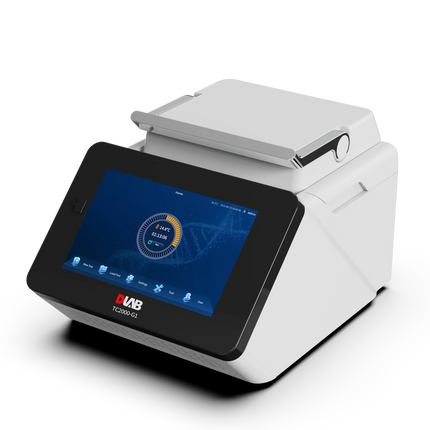

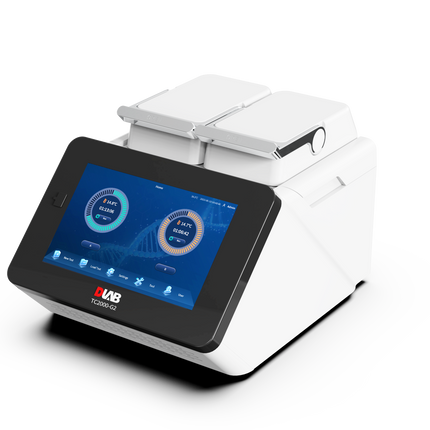

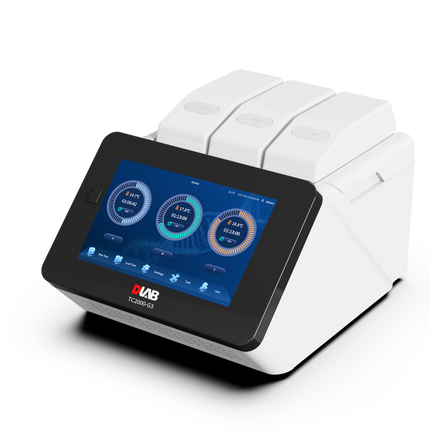

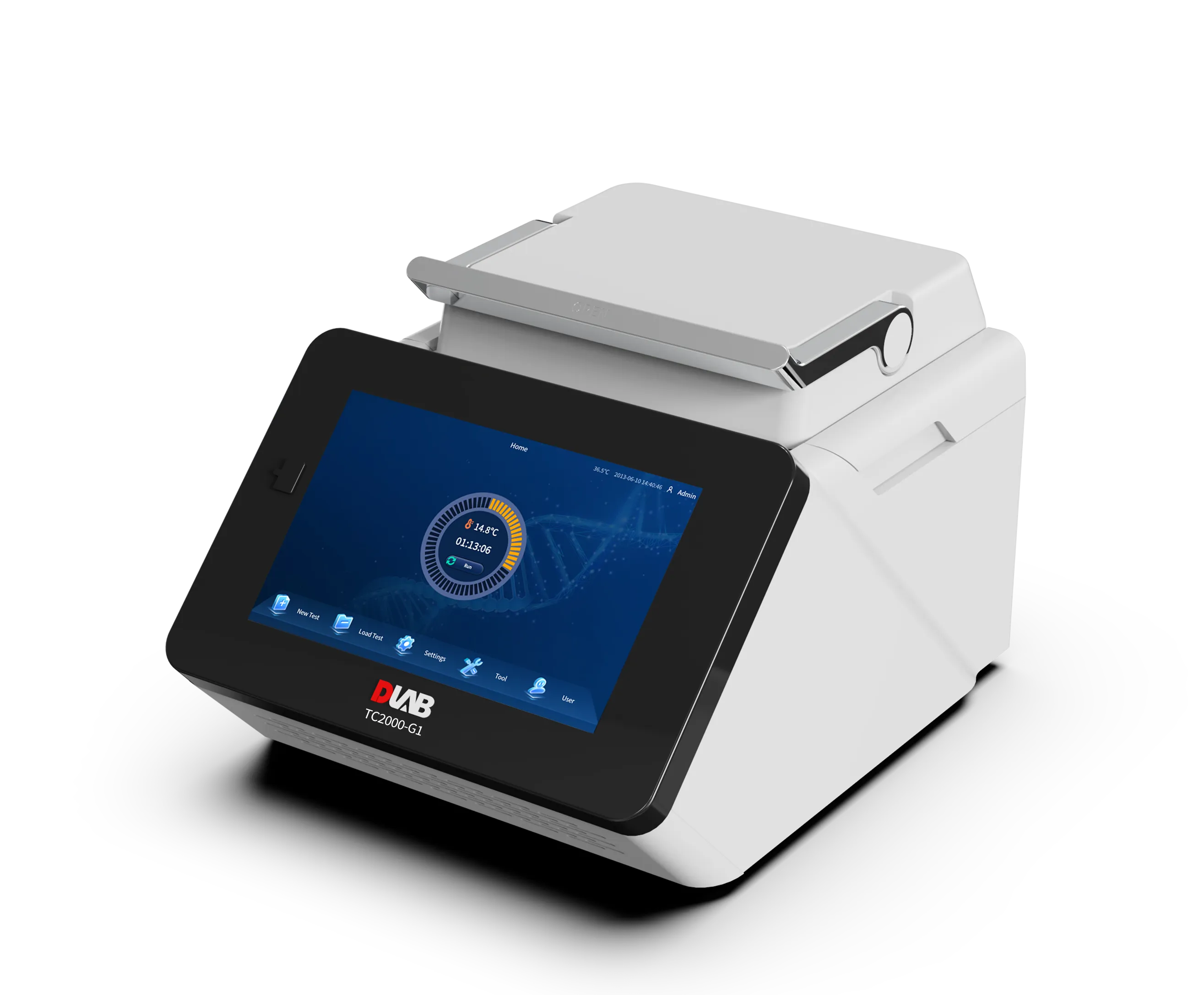

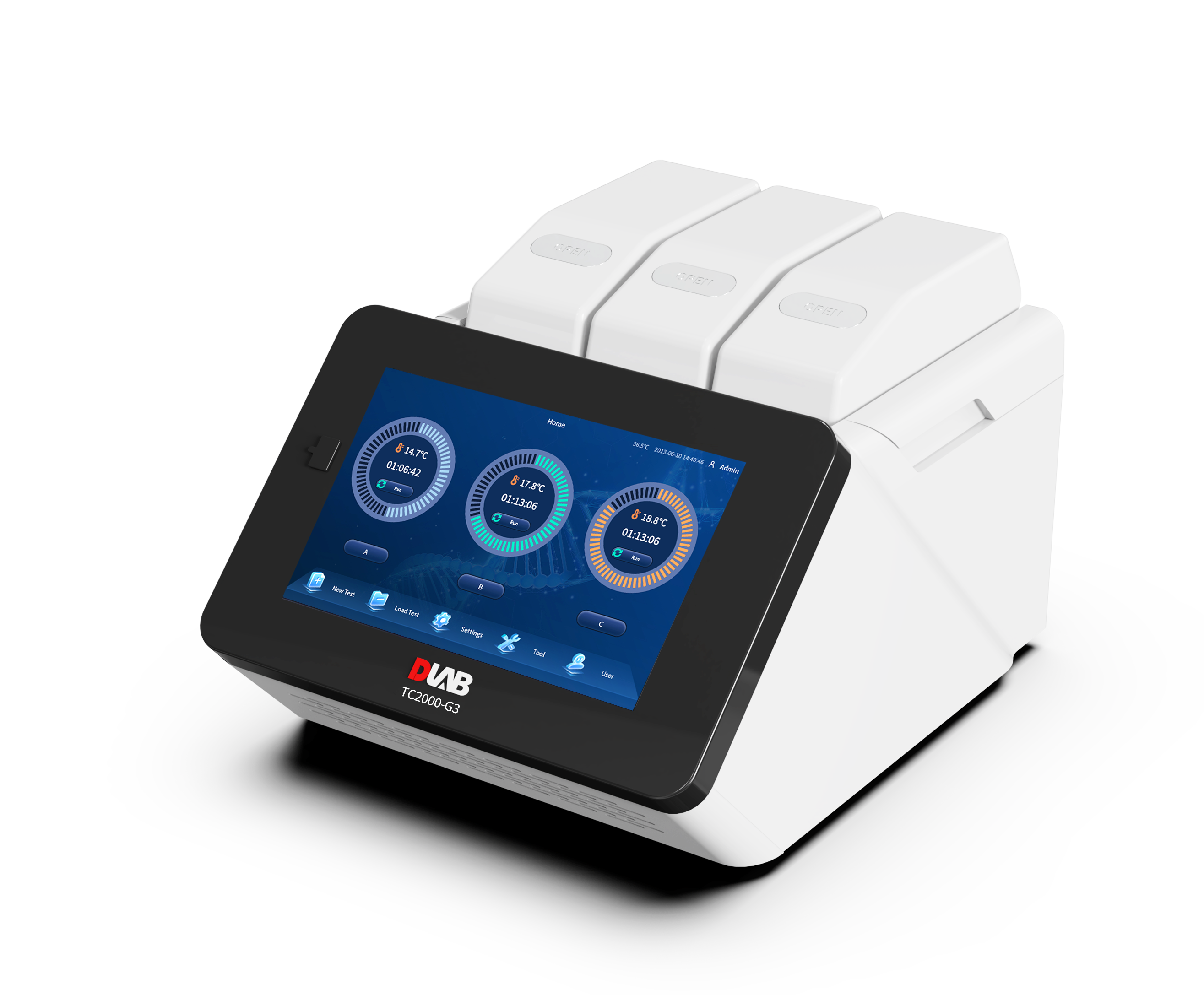

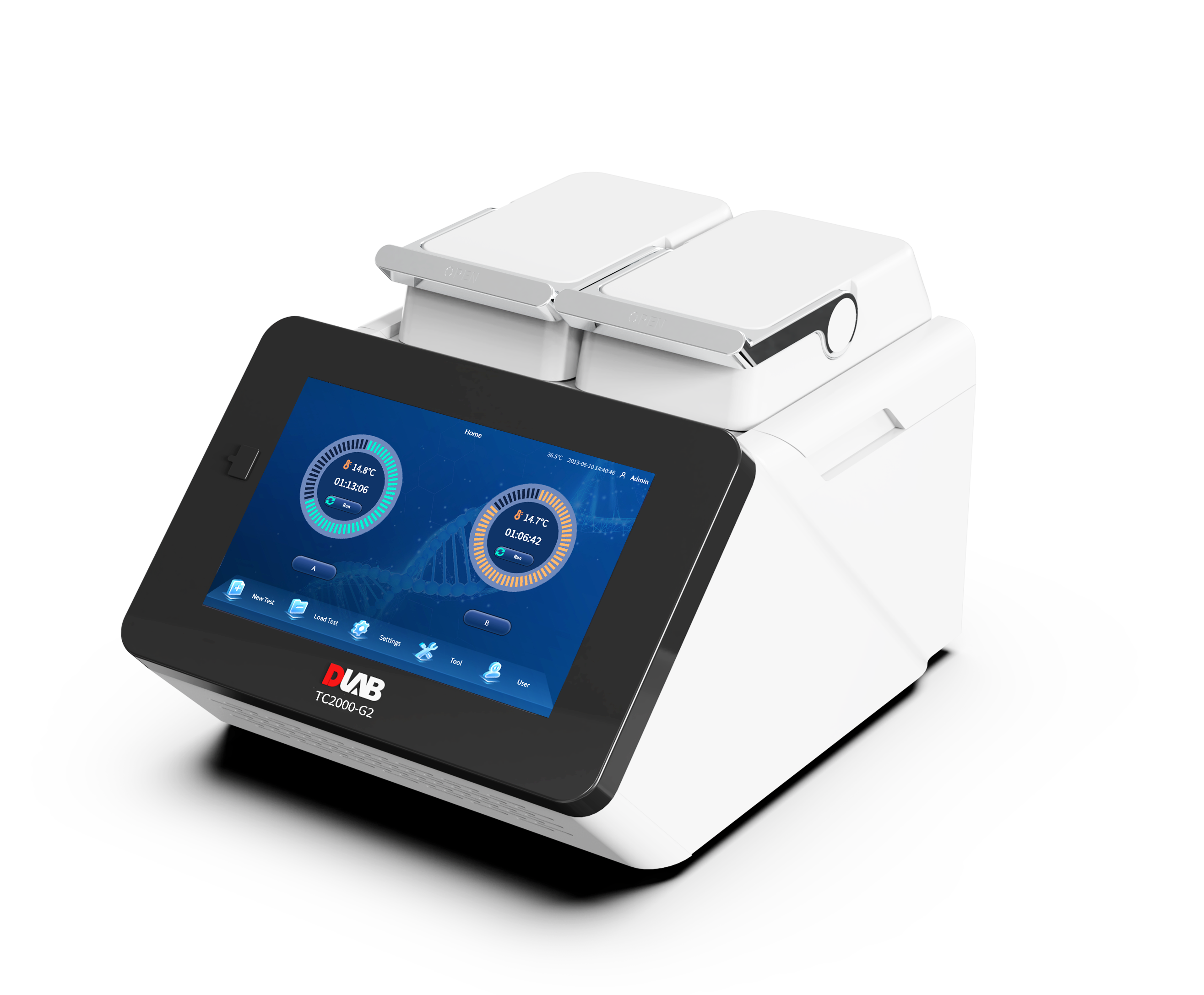

TC2000-G1/2/3 is an indispensable laboratory instrument in the field of molecular biology, which can be used for genesequencing, gene cloning, gene expression, mutation, and plays an important role in various fields such as agriculture,food testing,environmental science, drug development and so on.
Accessories:
| SKU |
Sample Capacity |
| TC2000-G1 |
96×0.2mL PCR tube | 12×PCR-8strips | 1×0.2mL 96-well PCR plate
|
| TC2000-G2 |
96×0.2mL PCR tube | 12×PCR-8strips
|
| TC2000-G3 |
96×0.2mL PCR tube | 12×PCR-8strips
|
Product Parameters
Heating Temperature Range
|
0-105°C
|
Lid Temperature Range
|
30-115°C
|
Temperature Display Accuracy
|
0.1°C
|
Temperature Control Accuracy
|
±0.1°C
|
Temperature uniformity @55℃
|
±0.2°C
|
Max. Heating/Cooling Rate
|
5°C/Sec
|
Gradient Temperature Setting Range
|
30-10°C
|
Gradient Range
|
1-42°C，Turn off gradient on input 0
|
Adapter block material
|
Aluminum
|
Display
|
10.1inches LCD 1280×800
|
Input
|
Touch panel
|
User defined file system
|
Up to 30 steps and 199 cycles in a single program
|
Power off protection
|
Yes
|
Voltage,Frequency
|
100-240V,50/60HZ,600W
|
Dimension[WxDxH]
|
310×422×264mm
|
Weight
|
11 kg
|
