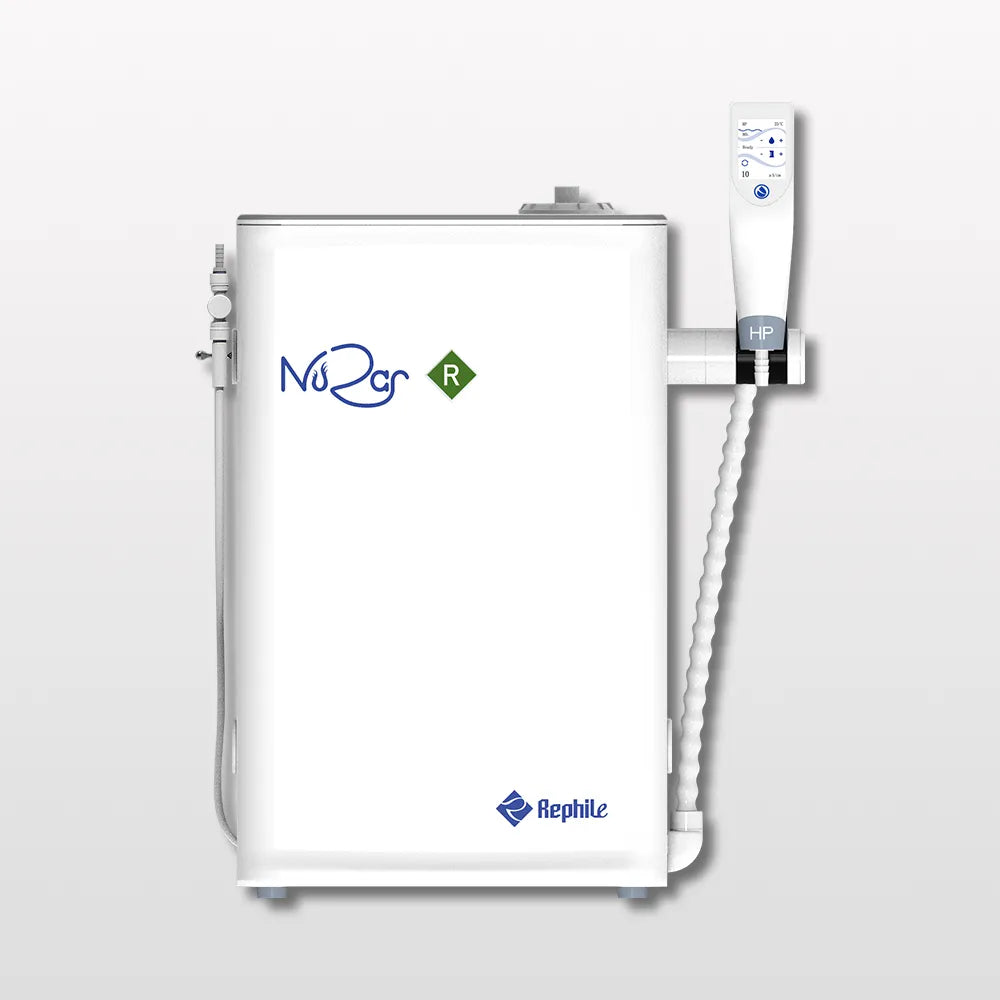

NuZar water system set, R24 produces reverse osmosis (RO) water from tap water directly. It offers desired solutions for research professionals who work with varieties of applications utilizing RO pure water in the lab.
The NuZar water purification systems are compact and powerful. They are specifically designed for laboratories that demand a balance between cost of ownership and exceeding their purified water requirements.
The system is CE/RoHS certified. RephiLe provides full documents support to meet user’s GMP, GSP, GAP, GCP, GLP requirements.
| General Specifications |
|
| Operating voltage |
24 VDC |
| Input voltage |
100 – 240 VAC |
| Main system power |
< 190 W |
| Feed Water Requirements |
|
| Feed water |
Tap water |
| Feed water conductivity / TDS |
< 2000 μS/cm / < 1000 ppm |
| Operating temperature |
5 – 35 °C |
| Feed water pressure |
1 – 6 bar (15 – 90 psi) |
| Product Water Quality |
|
| RO production rate |
24 L/hr |
| RO water dispensing rate |
Up to 2 L/min |
| RO water Conductivity (@25°C) |
Typically < 20 μS/cm |
| RO rejection |
97 to 98% ionic rejection (new RO cartridge)
> 99% organic rejection
> 99% particulates & bacteria rejection
|
| Dimensions & Weight |
|
|
Main system dimensions
Width × depth × height
w/ integrated tank
|
32 × 44 × 54 cm
(12.6 × 17.3 × 21.3 in)
|
| Weight (Approx Net) |
19 kg |
| Weight (Approx Gross) |
28 kg |
