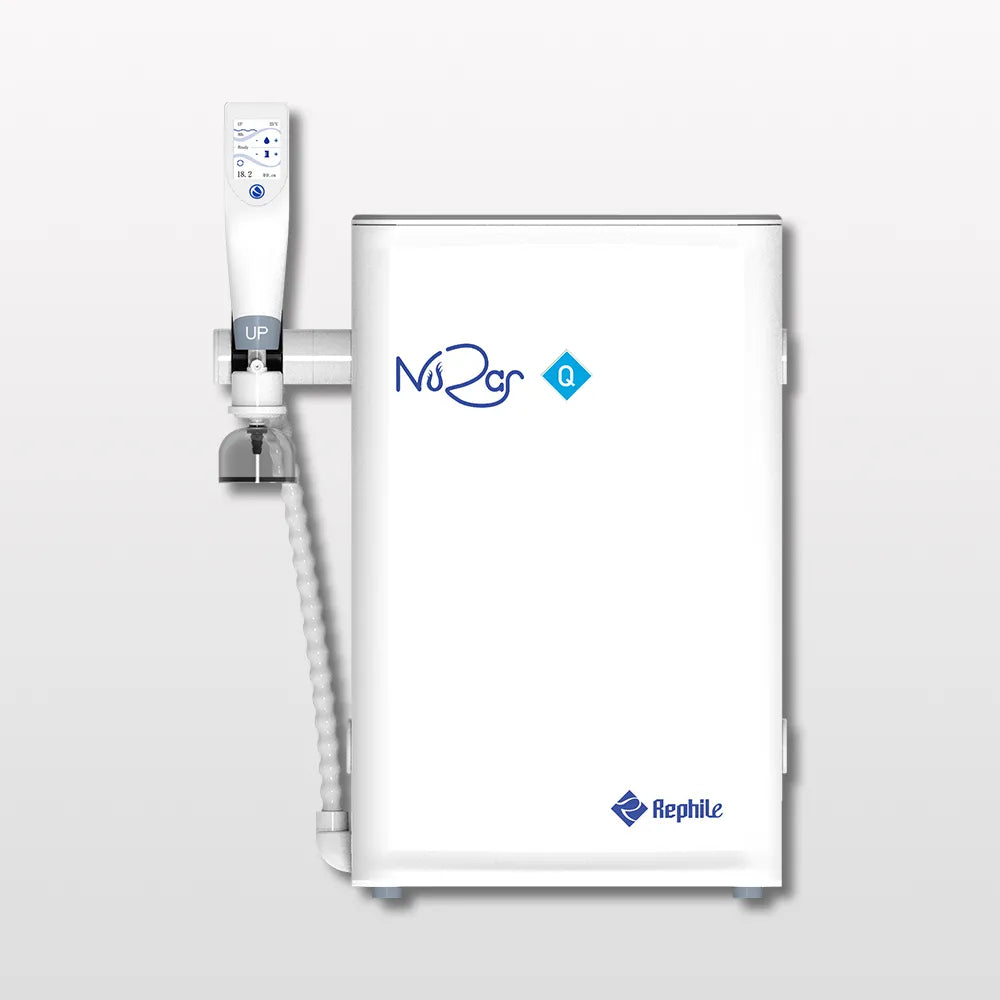

NuZar water system set, Q Lite produces ultrapure water (Type I water) from RO, distilled or deionized water. Quality of ultrapure water meets or exceeds ASTM, CLSI, CAP, and ISO Type I water standards.
The NuZar water purification systems are compact and powerful. They are specifically designed for laboratories that demand a balance between cost of ownership and exceeding their purified water requirements.
The system is CE/RoHS certified. RephiLe provides full documents support to meet user's GMP, GSP, GAP, GCP, GLP requirements.
| General Specifications |
|
| Operating voltage |
24 VDC |
| Input voltage |
100 – 240 VAC |
| Main system power |
< 190 W |
| Feed Water Requirements |
|
| Feed water |
EDI water
RO water
Distilled water
Deionized water
|
| Operating temperature |
5 – 35 °C |
| Feed water pressure |
0 – 1 bar (0 – 15 psi)* |
| Product Water Quality |
|
| Ultrapure water dispensing rate |
Up to 2 L/min |
| Ultrapure water resistivity (@25°C) |
18.2 MΩ·cm |
| Ultrapure water TOC |
< 5 ppb** |
| Particles in ultrapure water |
No Particles with size > 0.22 μm (with a 0.2 μm final filter or RephiBio filter) |
| Microorganisms in ultrapure water |
< 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter) |
| Pyrogens (endotoxins) in ultrapure water |
< 0.001 Eu/ml (with a RephiBio filter) |
| RNase in ultrapure water |
< 0.5 pg/ml (with a RephiBio filter) |
| DNase in ultrapure water |
< 10 pg/ml (with a RephiBio filter) |
| Dimensions |
|
|
Main system dimensions
Width × depth × height
|
414 x 310 x 624 mm (16.3 x 12.2 x 24.5 in)
|
| Weight (Net approx) |
18 kg |
| Weight (Gross approx) |
27 kg |
*It’s recommended to use a pressure regulator if feed water pressure is above 15 psi (1 bar)
**When TOC Level of feed water is < 50 ppb.
