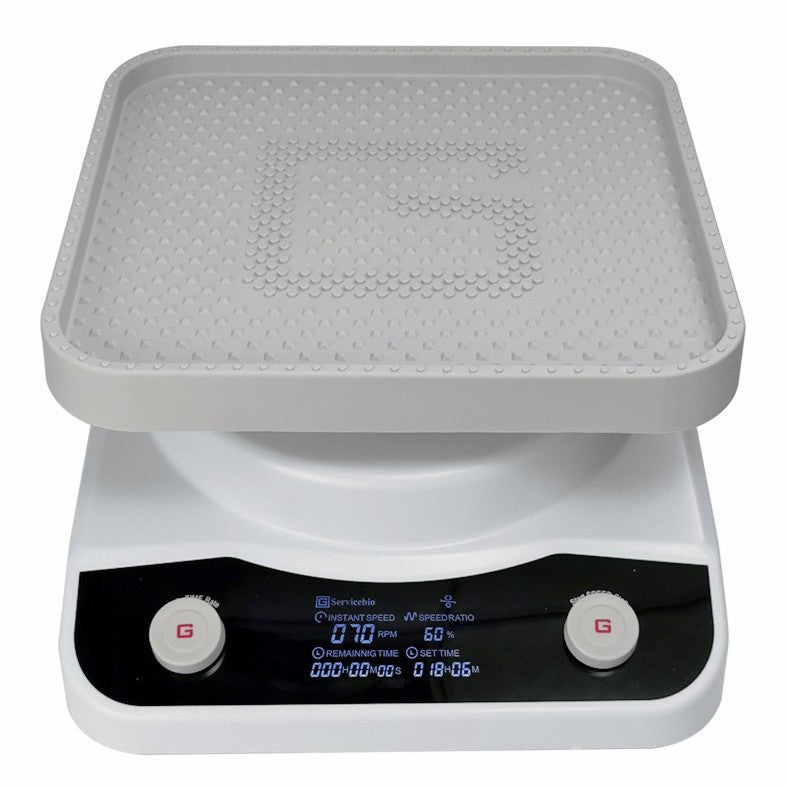

Multi-Functional Shaker (Horizontal + Pendulum+ 3D)

    Description

    Features

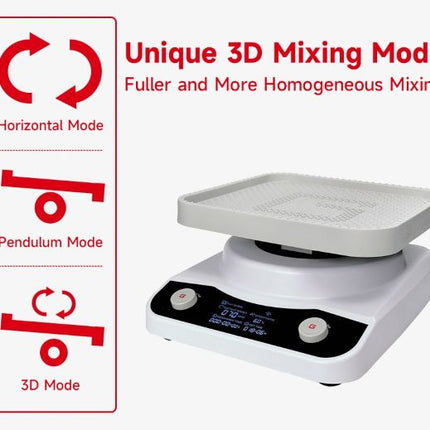

    • Three independent modes: swing, horizontal, and 3D. In 3D mode, the mixing intensity can be set separately.
    • Automatically stops in a horizontal position after operation. Timer and power-off memory function.
    • Equipped with a stepper motor for precise speed control and long lifespan.

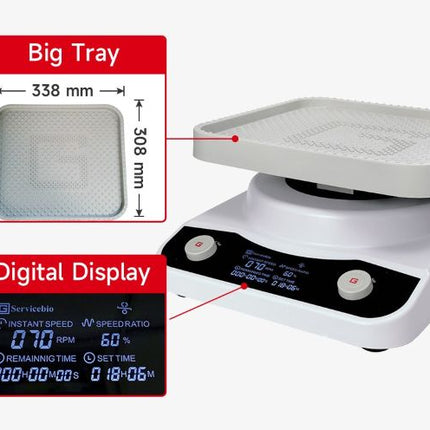

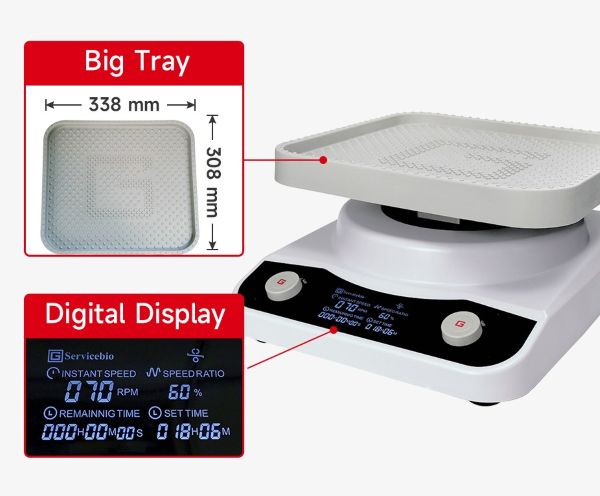

    • Large tray and large LCD screen for easy operation.
    • Rust-proof treatment on the base plate for durability.


    Operation mode Horizontal, pendulum, 3D composite, freely adjustable
    Product power 35W
    Voltage 100-240V 50Hz/60Hz
    Tray size 338*308 mm
    Maximum load 5 kg
    Rotational speed Horizontal mode 5-100 rpm  radius of rotation  15 mm
    Pendulum mode  5-100 rpm swinging angle  10°
    3D Composite mode 5-100 rpm   speed ratio 1-100%*
    Max. RCF 2680×g
    Noise Level ≤45dB
    Dimension [D×W×H]: 160x170x122mm
    Weight 0.5kg

     *Ratio of z-axis pendulum speed to XY plane reciprocating speed

    Read more

    Product form

    SKU: DS-3D100

    Multi-Functional Shaker (Horizontal + Pendulum+ 3D)

      Features Three independent modes: swing, horizontal, and 3D. In 3D mode, the mixing intensity can be set separately. Automatically stops... Read more

      $950.00

      Free pickup in our shop(s)
        • Shipped today? Order within: Nov 17, 2025 15:00:00 -0800
          Want a Bulk Order? Contact us!

        Our team is available Monday through Friday from 9:00am-5:30pm PST.

        Send us a message!

          Instruction Manual

        Description

        Features

        • Three independent modes: swing, horizontal, and 3D. In 3D mode, the mixing intensity can be set separately.
        • Automatically stops in a horizontal position after operation. Timer and power-off memory function.
        • Equipped with a stepper motor for precise speed control and long lifespan.
        • Large tray and large LCD screen for easy operation.
        • Rust-proof treatment on the base plate for durability.


        Operation mode Horizontal, pendulum, 3D composite, freely adjustable
        Product power 35W
        Voltage 100-240V 50Hz/60Hz
        Tray size 338*308 mm
        Maximum load 5 kg
        Rotational speed Horizontal mode 5-100 rpm  radius of rotation  15 mm
        Pendulum mode  5-100 rpm swinging angle  10°
        3D Composite mode 5-100 rpm   speed ratio 1-100%*
        Max. RCF 2680×g
        Noise Level ≤45dB
        Dimension [D×W×H]: 160x170x122mm
        Weight 0.5kg

         *Ratio of z-axis pendulum speed to XY plane reciprocating speed

        Read more
