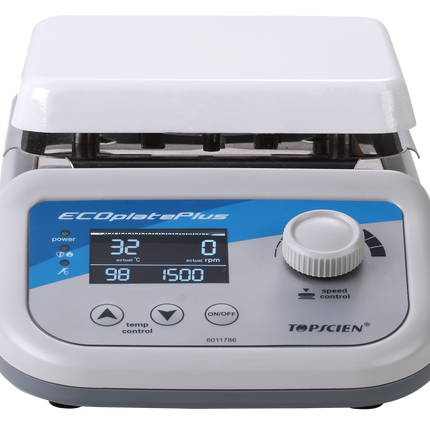

The ECOplate digital magnetic stirrer hot plate series are made of special Ceramic and the special heating technique, and the hot plate can reach temperaturse up to 360°C. Using large Alnico material which provides a powerful magnetic force, high temperature demagnetization and stir bar decoupling are prevented. It also features a humanized design for convenient operation to meet various heating and stirring experimental needs.
Features
- The plate with white ceramic with excellent corrosion resistance and keep it safety
- The special electrical insulation composite material provide the excellent heating performance and the surface of hot plate can reach temperature up to 360°C
- Advanced microprocessor controls allow quick, precise adjustment of speed and temperature
- The integration timer which for monitoring the sensitive chemical reaction
- LED display which can be show the setting temperature and actual temperature
- DC brushless motor makes stable operation, low noise, long using life and no spark
- HOT warning prompted to avoid scalding
- Use the large Alnico material which can be provide the powerful magnetic force, it can be prevented the high temperature demagnetization and stir bar decoupling
Specifications
| Model |
ECOplatePlus-HS |
Max stirrer volume
|
20 L |
| Speed range |
100-1500 rpm |
| Heating power |
1000W |
| Max heating temp. |
50/360°C
|
| Speed range |
LED |
Integration Timer
(Operation Time Available) |
99 hours 59 mins |
| Max Length for the Stir Bar. |
40 mm |
| Max Safety Adjustable Temp. |
50/360°C
|
| Sensor Control Accuracy |
PT1000/±0.5K |
| Surface Plate Material |
Ceramic |
