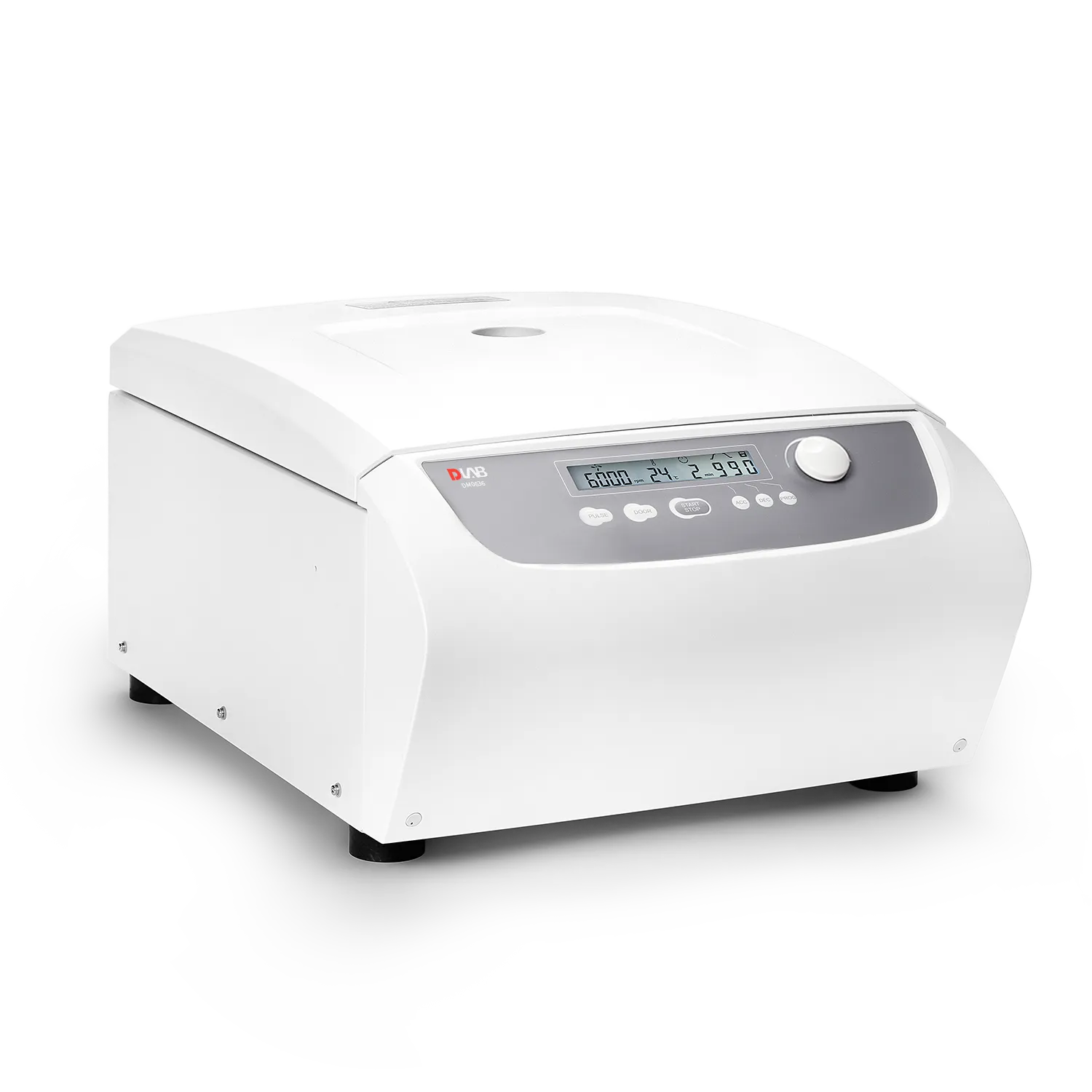

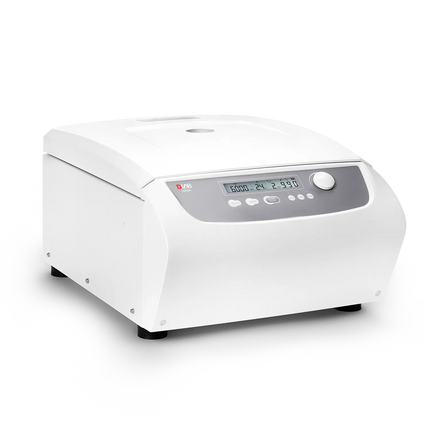

- Speed from 300-6000 rpm
- Maximum capacity : 100 mLx4
- 9 Acceleration/10 Brake speed settings to ensure optimal separation
- A wide range of rotors optional(fixed angle and swing-out rotors)
- Automatic rotor identification
- Pulse Key for quick spin
- 9 procedures stored in memory makes the operation much simplified
- Maintenance-free brushless DC motor
- Suitable for tubes with caps, blood collection or urine tubes
- Comprehensive and versatile range of accessories
Accessories Sold Separately:

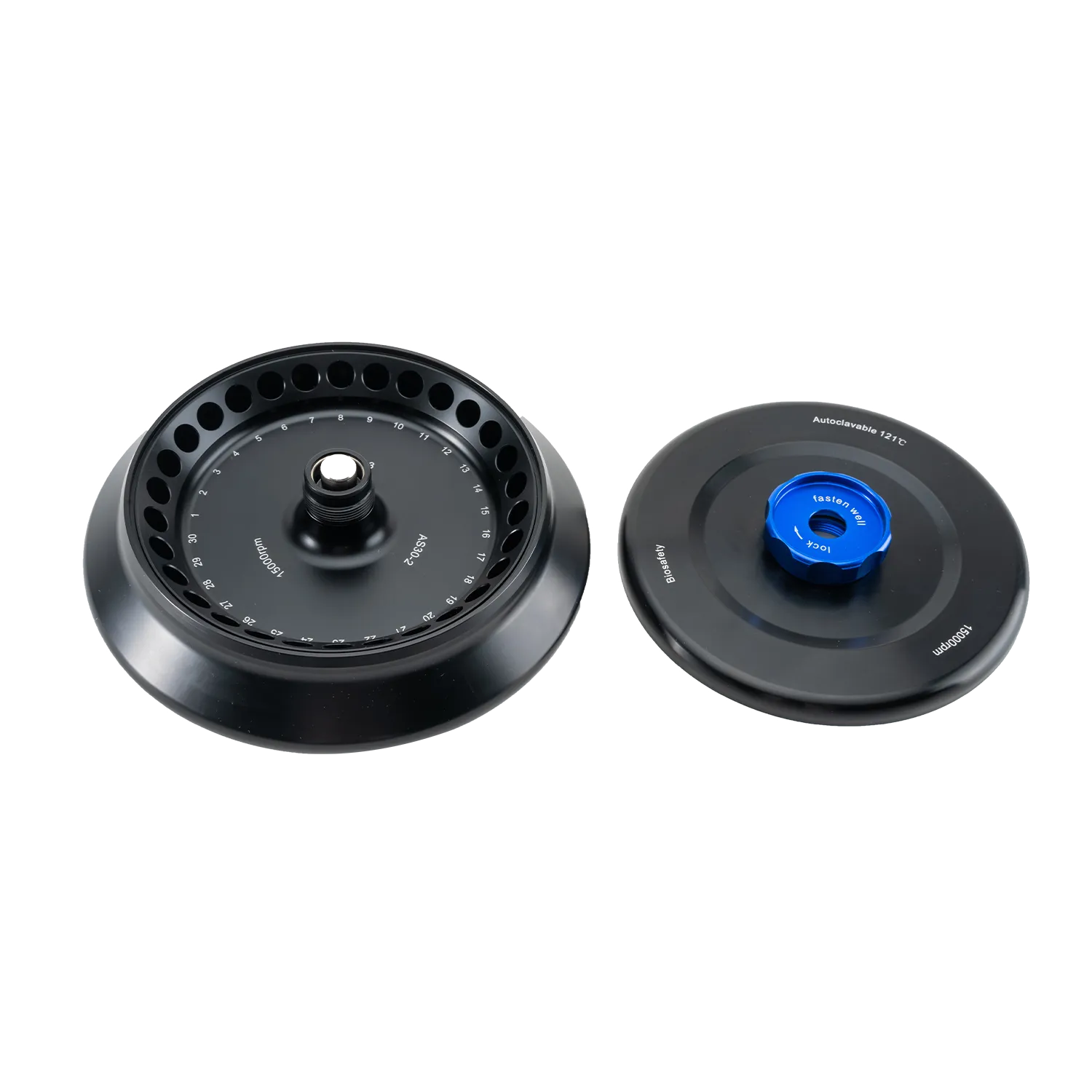

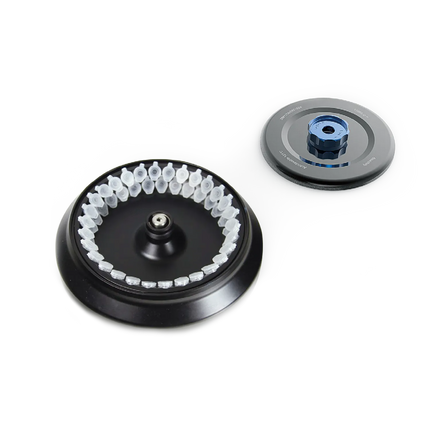

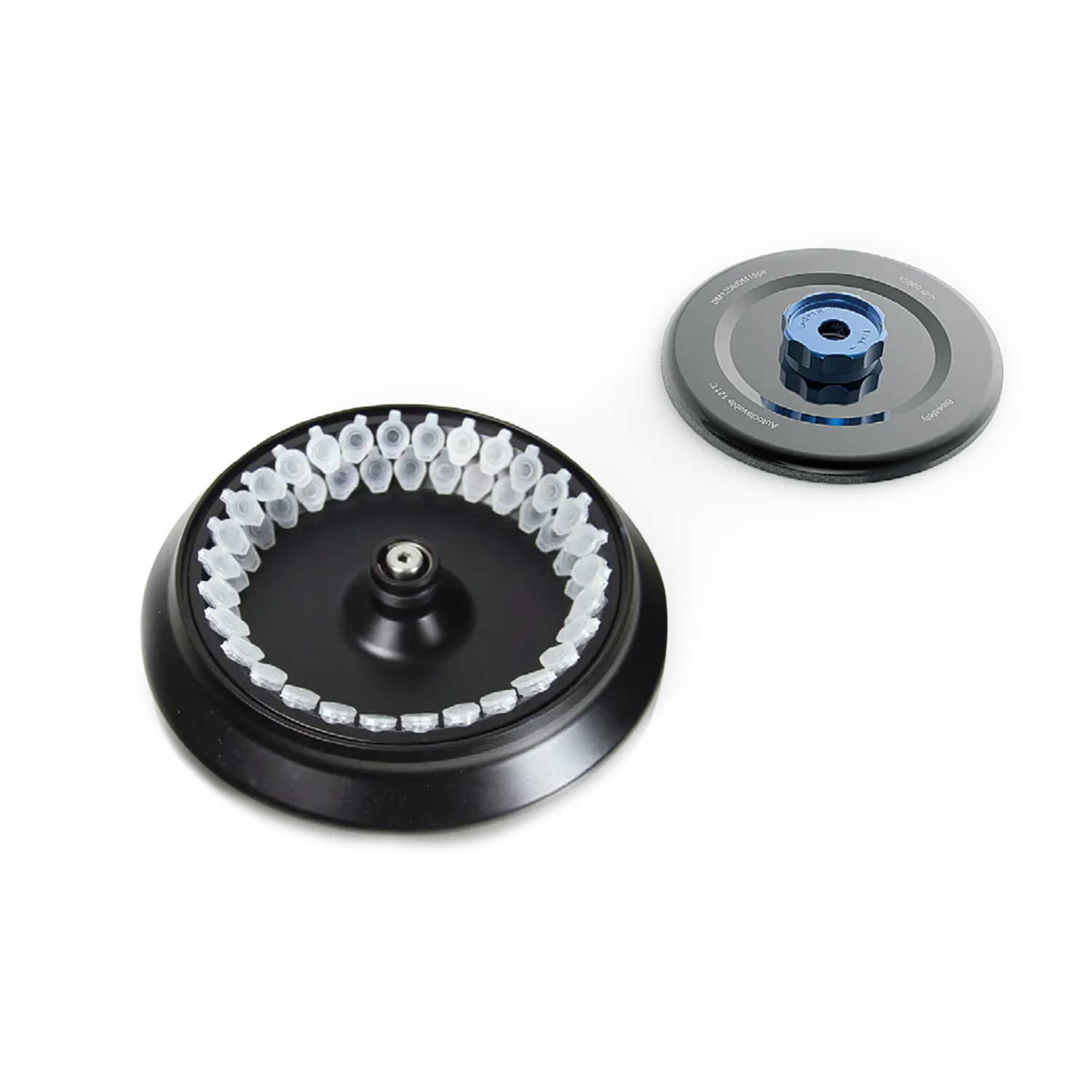

1. AS30-2 Fix Angle Rotor (2mLx30)
- Max. speed: 6000rpm
- Max. RCF: 4020×g
- Rotor capacity: 2mL×30
- Rotor material: aluminum
- Biosealing: Yes

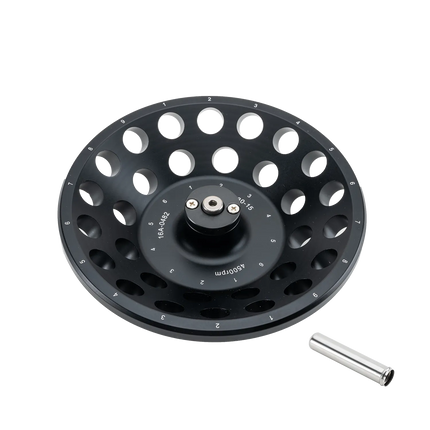

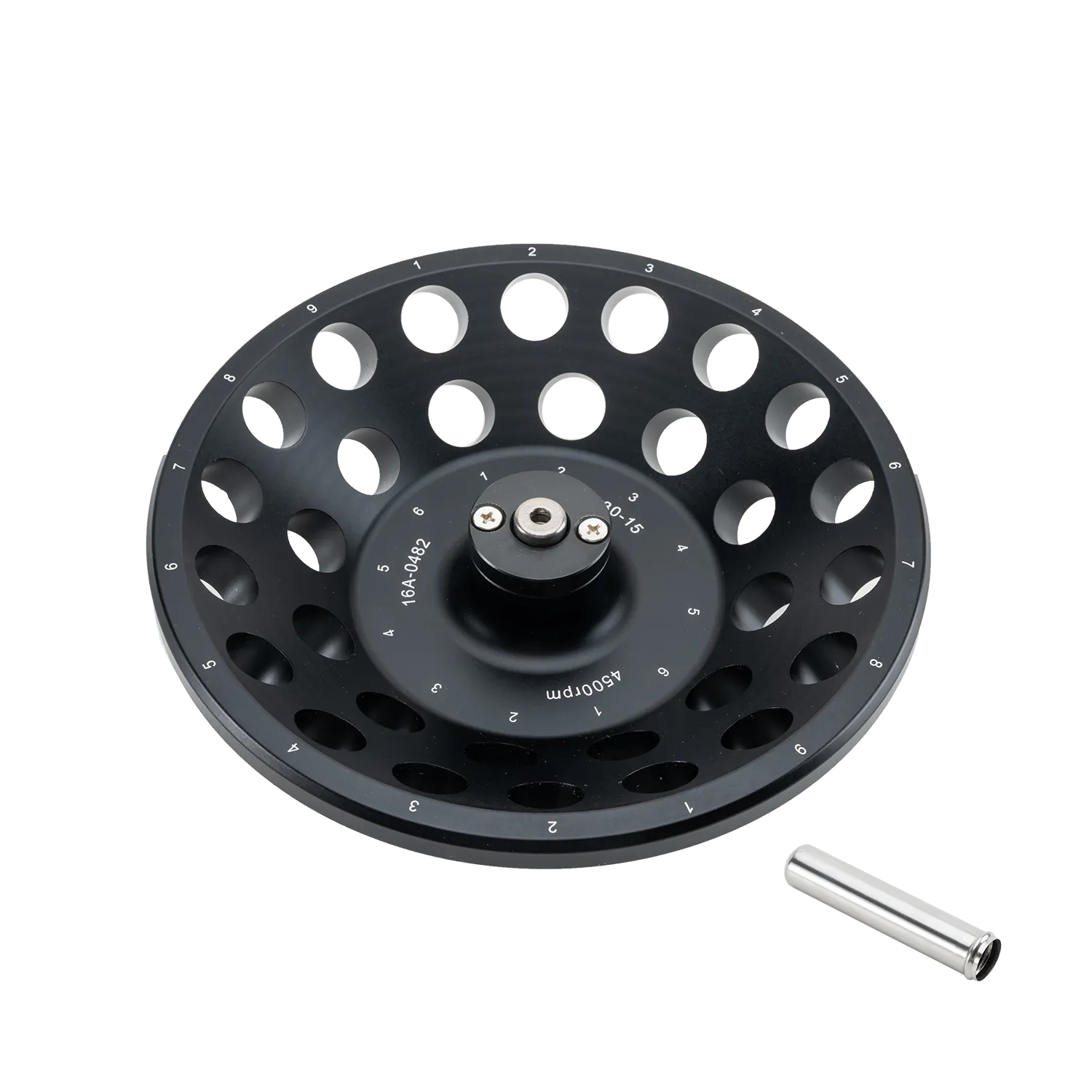

2. AS30-15 Fix Angle Rotor (Round Bottom)
- Max. speed: 4500rpm
- Max. RCF: 3210xg
- Rotor capacity: 15mL×30
- Rotor material: aluminum body and stainless steel adapter

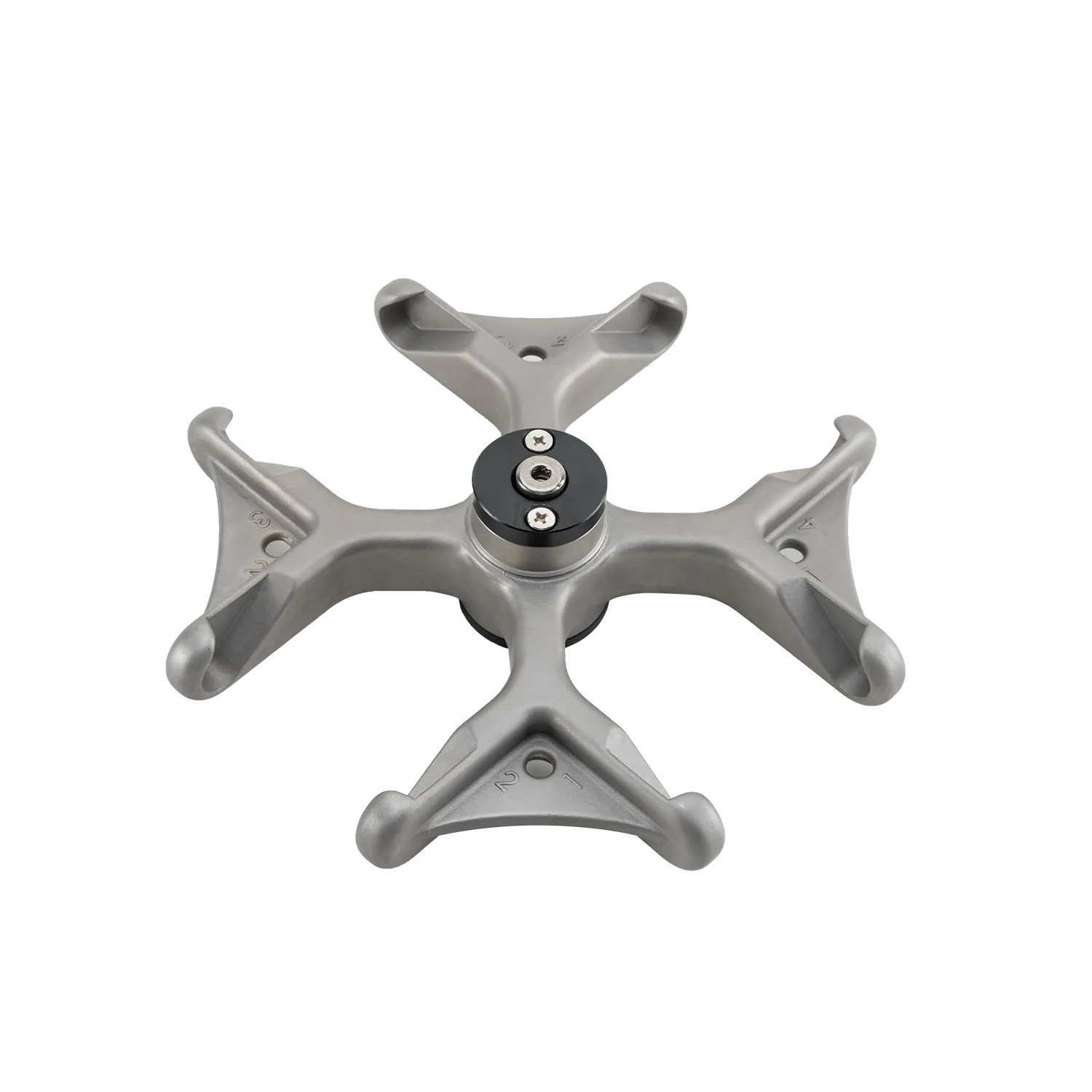

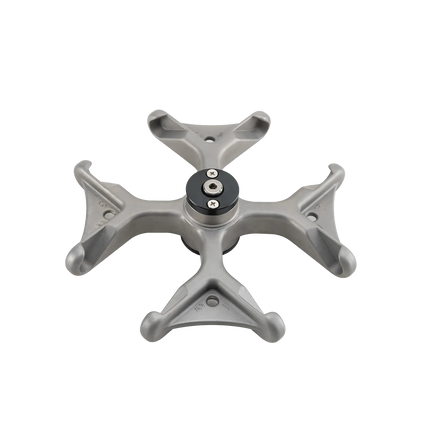

3. SE4-100Wing-out Rotor
- Max. speed: 4000rpm
- Max. RCF: 2950×g
- Rotor material: stainless steel body and adapter

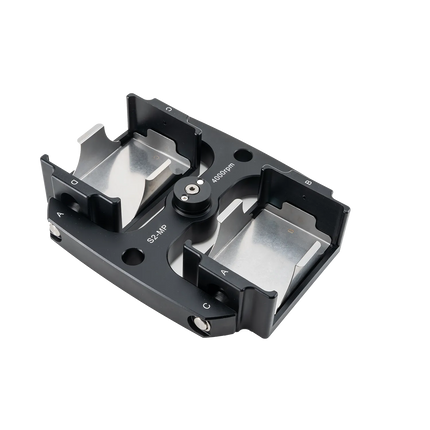

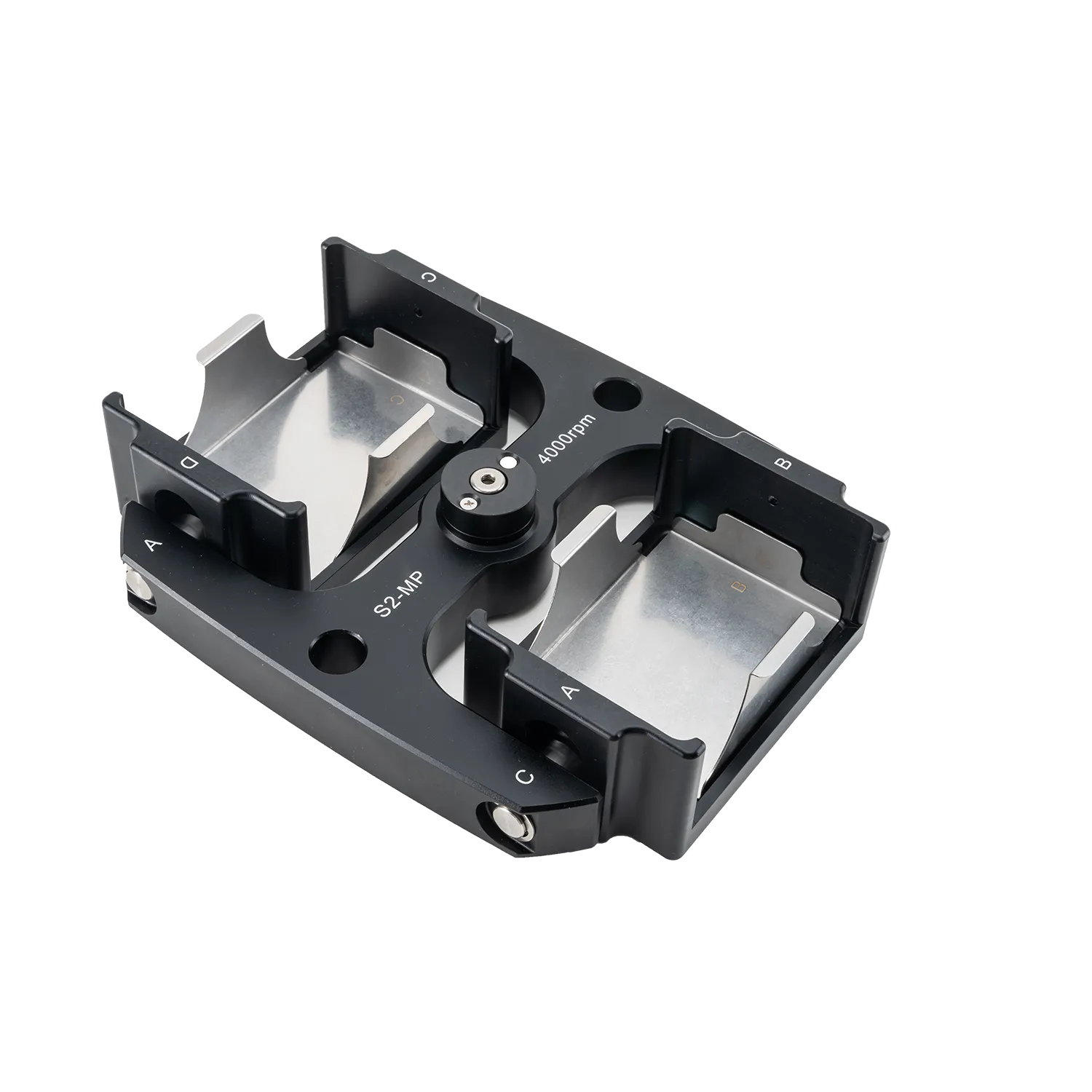

4. S2-MP Micro-plate Rotor Details
- Max. speed: 4000rpm
- Max. RCF: 2200×g
- Rotor capacity: Micro-plates 384-PCR/96-PCR/Elisa plates×8pcs; Deep well plates×4pcs
- Rotor material: stainless steel body

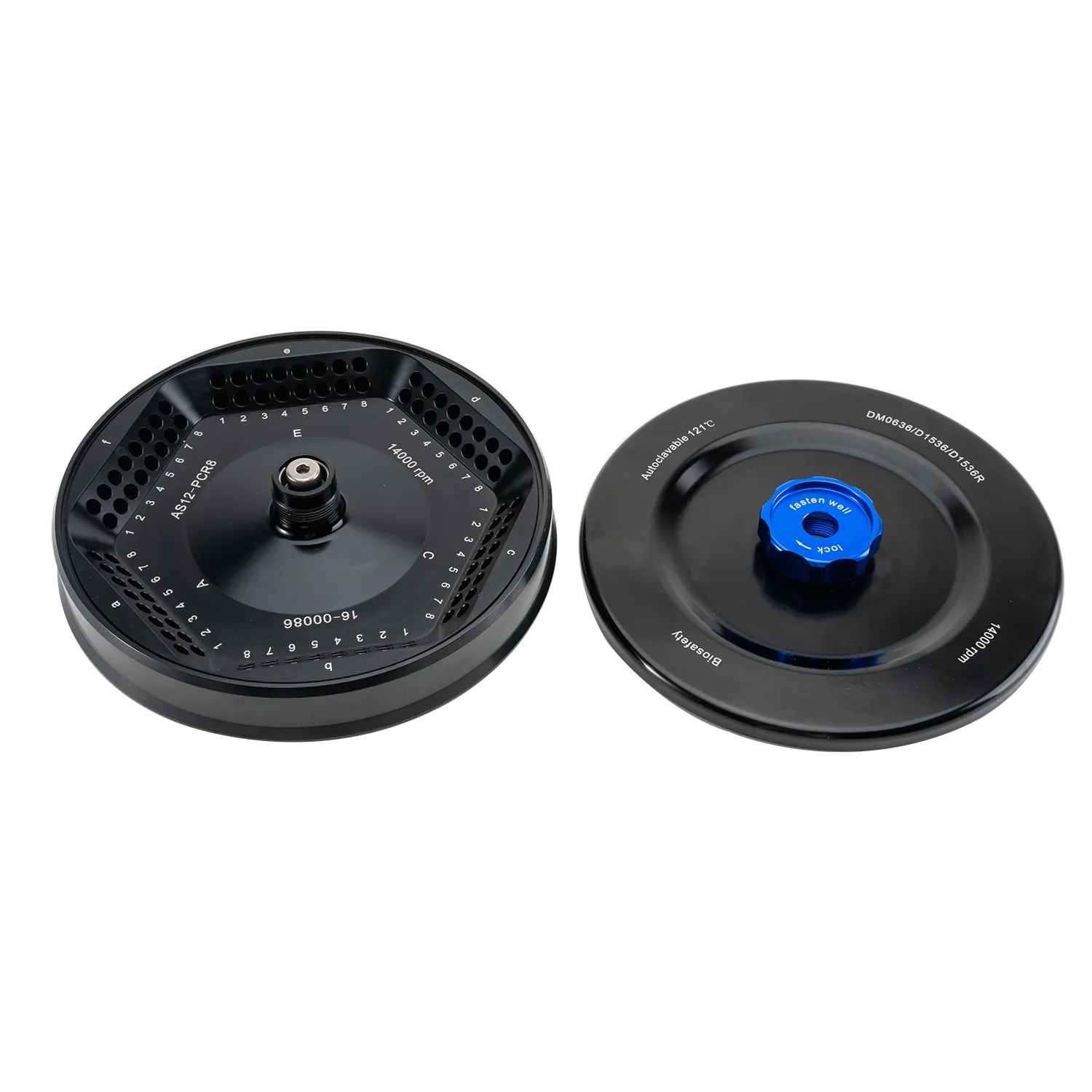

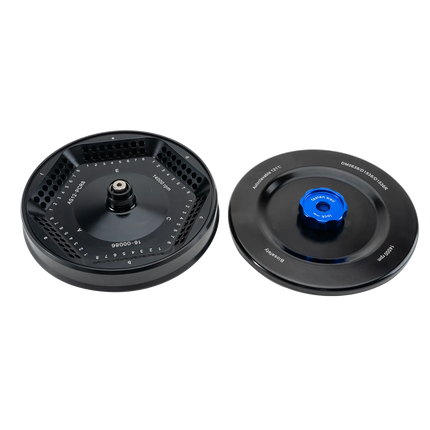

5. AS12-PCR8 Fix Angle Rotor PCR 8 Trips ×12
- Max. speed: 6000rpm
- Max. RCF: 4020×g
- Rotor capacity: PCR 8 trips×12
- Rotor material: aluminum
- Biosealing: Yes
6. AS60-2 Fix Angle Rotor 2ml x 60 Details
- Max. speed: 6000rpm
- Max. RCF: 4020×g
- Rotor capacity: 2mL×60
- Rotor material: aluminum
- Biosealing: Yes

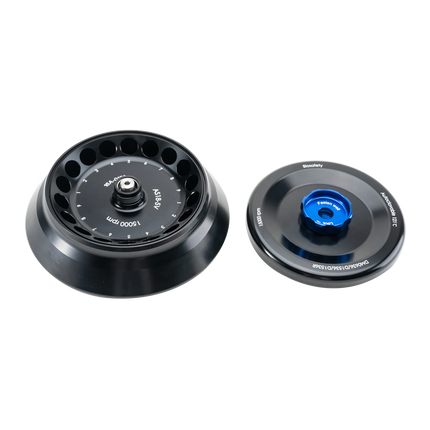

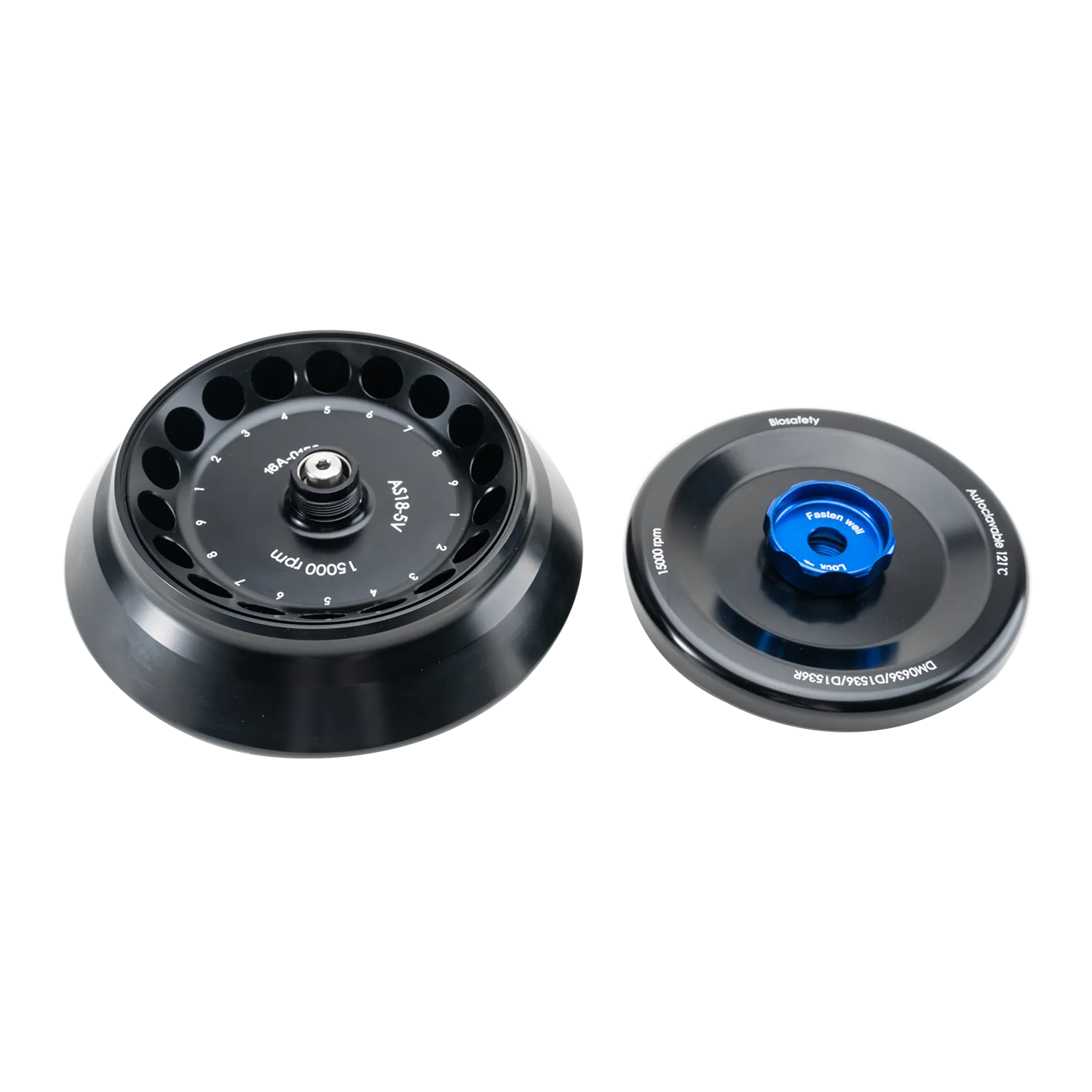

7. AS18-5V Fix Angle Rotor 5ml ×18 (Cone Bottom)
- Max. speed: 6000rpm
- Max. RCF: 4020×g
- Rotor capacity: 5mL×18
- Rotor material: stainless steel body
- and aluminum buckets
- Biosealing: Yes

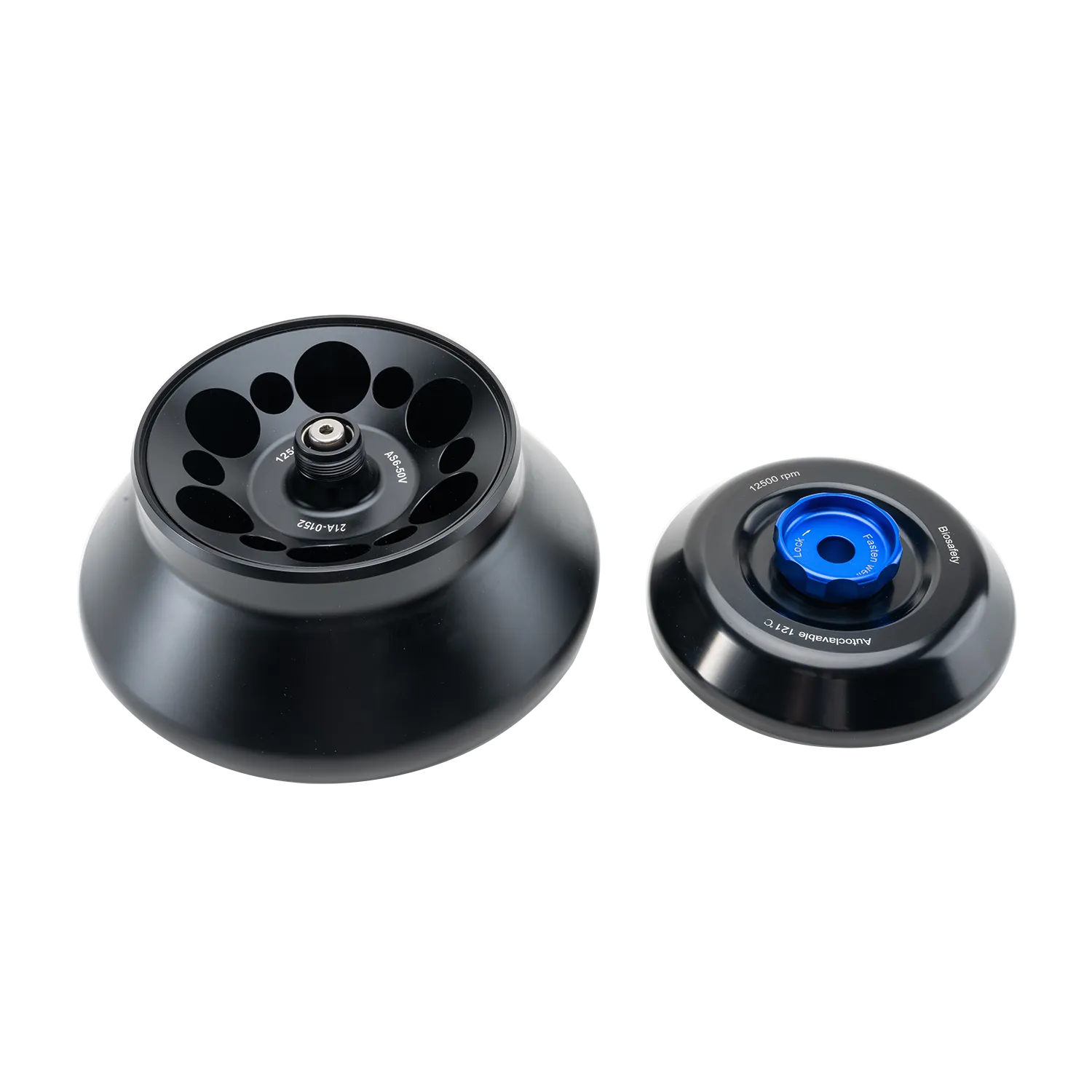

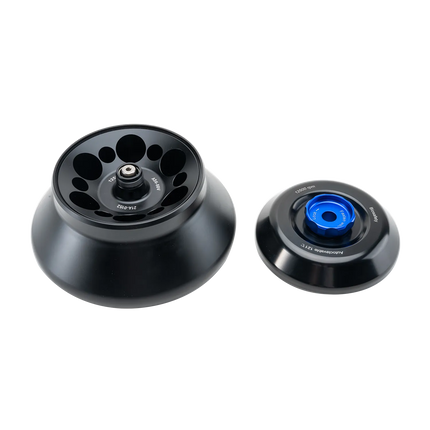

8. AS6-50V Fix Angle Rotor for 50ml×6 (Cone Bottom)
- Max. speed: 6000rpm
- Max. RCF: 4020×g
- Rotor capacity: 50mL×6 or 15mL×6
- Rotor material: aluminum
- Biosealing: Yes
Product Parameters
Speed Range
|
300-6000rpm increment:10rpm
|
Max. RCF
|
4100xg
|
Speed Accuracy
|
±20rpm
|
Rotor Capacity
|
100mLx4
|
Run Time
|
30sec-99mins/continuous
|
Display
|
LCD
|
Safety Devices
|
Door Imbalance protection Over speed & Over temperature detection
|
Acceleration/Braking time[Sec]
|
9↑/10↓steps
|
Program Memory
|
9
|
Motor
|
Brushless DC motor
|
Power
|
400W; Single-phase AC220V-240V, 50Hz/60Hz, 6.3A; AC110V- 120V,50Hz/60Hz,10A
|
Dimension[WxDxH]
|
570×445×295mm
|
Weight
|
36kg
|
Noise
|
≤65dB
|
Advanced features
|
speed/rcf switch; Rotor identification
|
