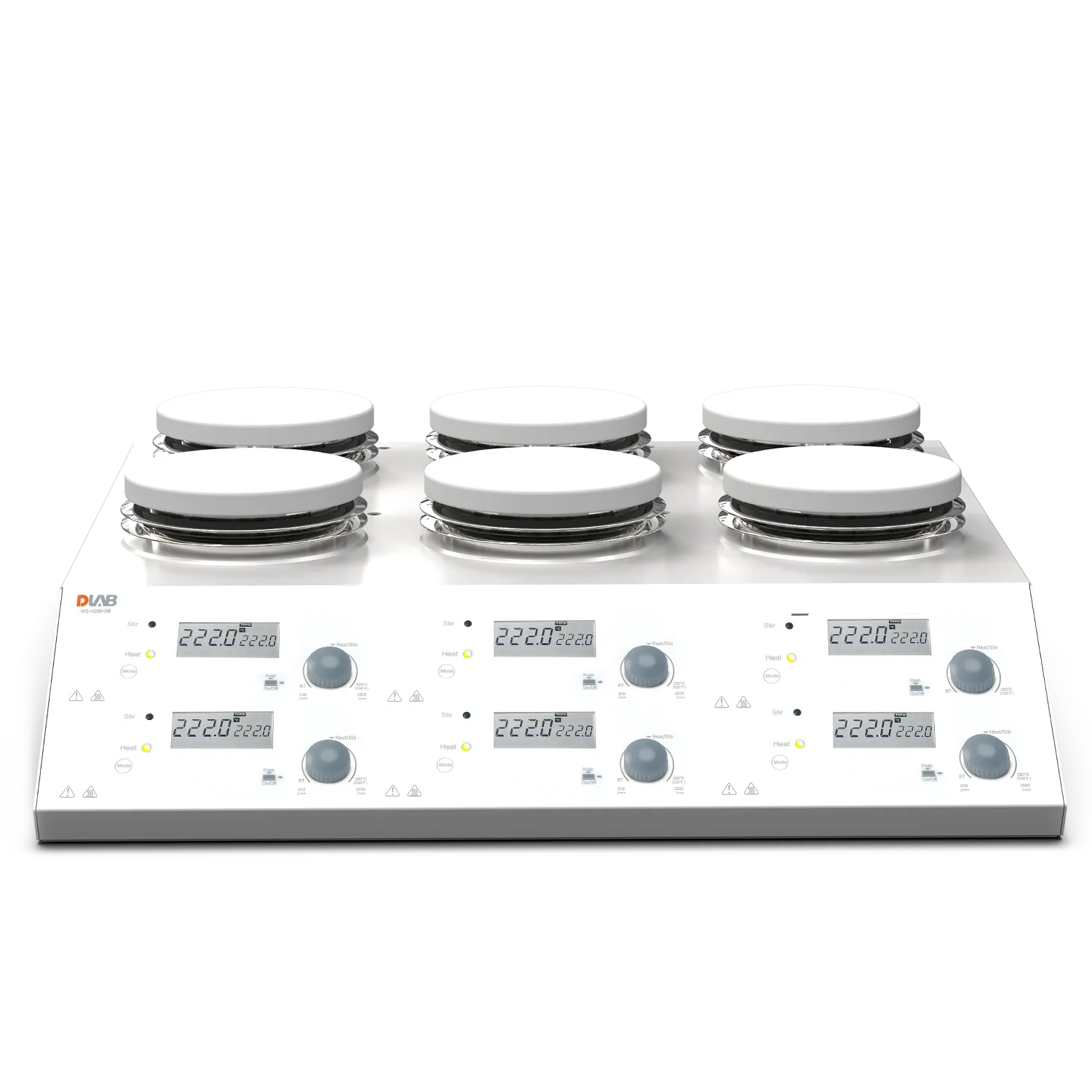

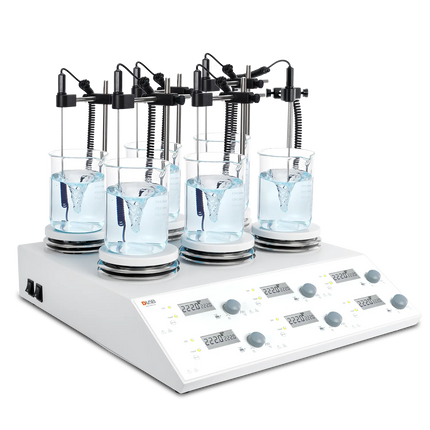

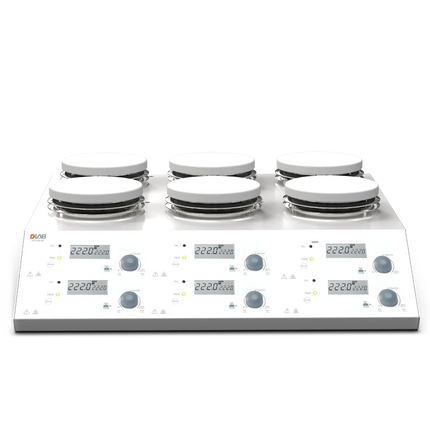

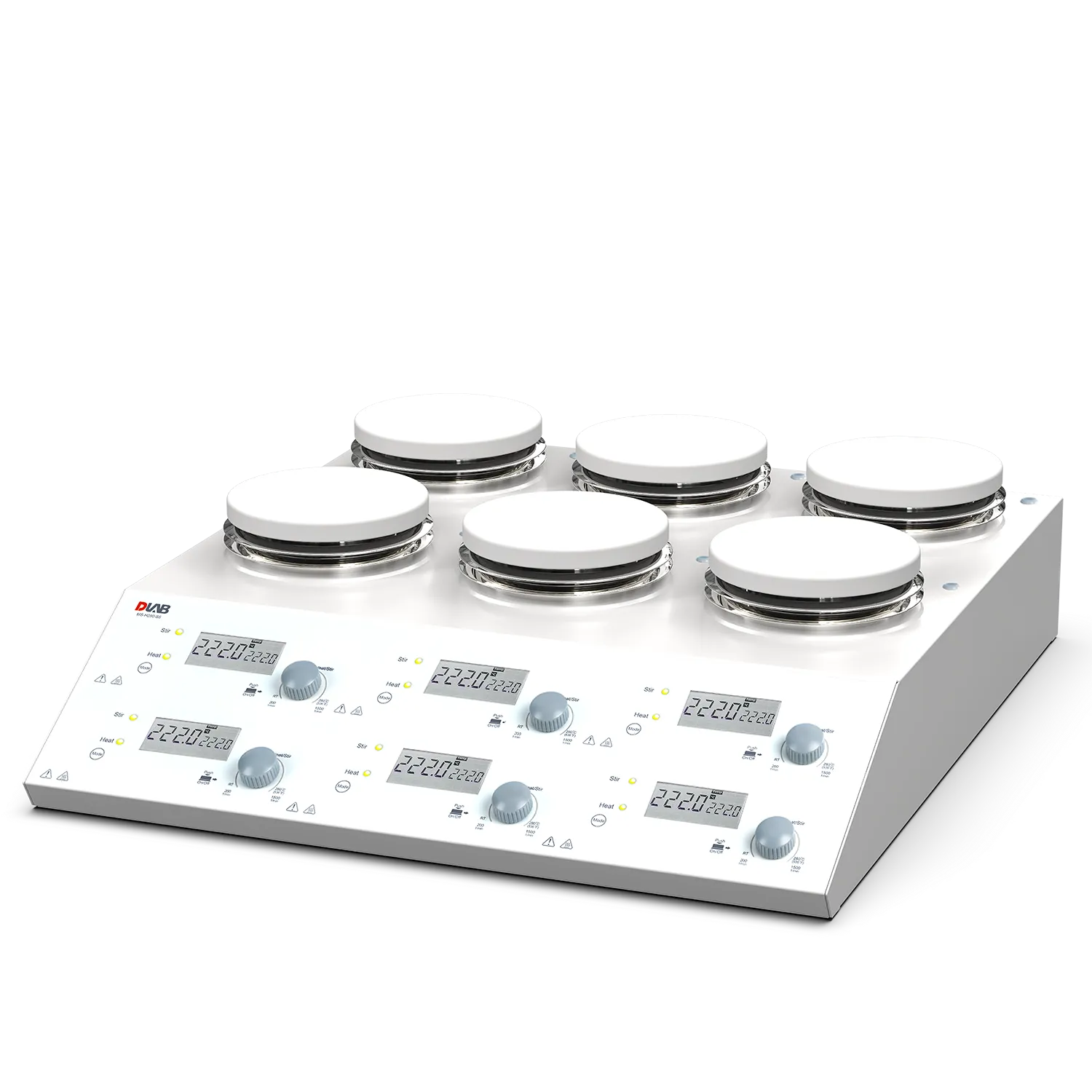

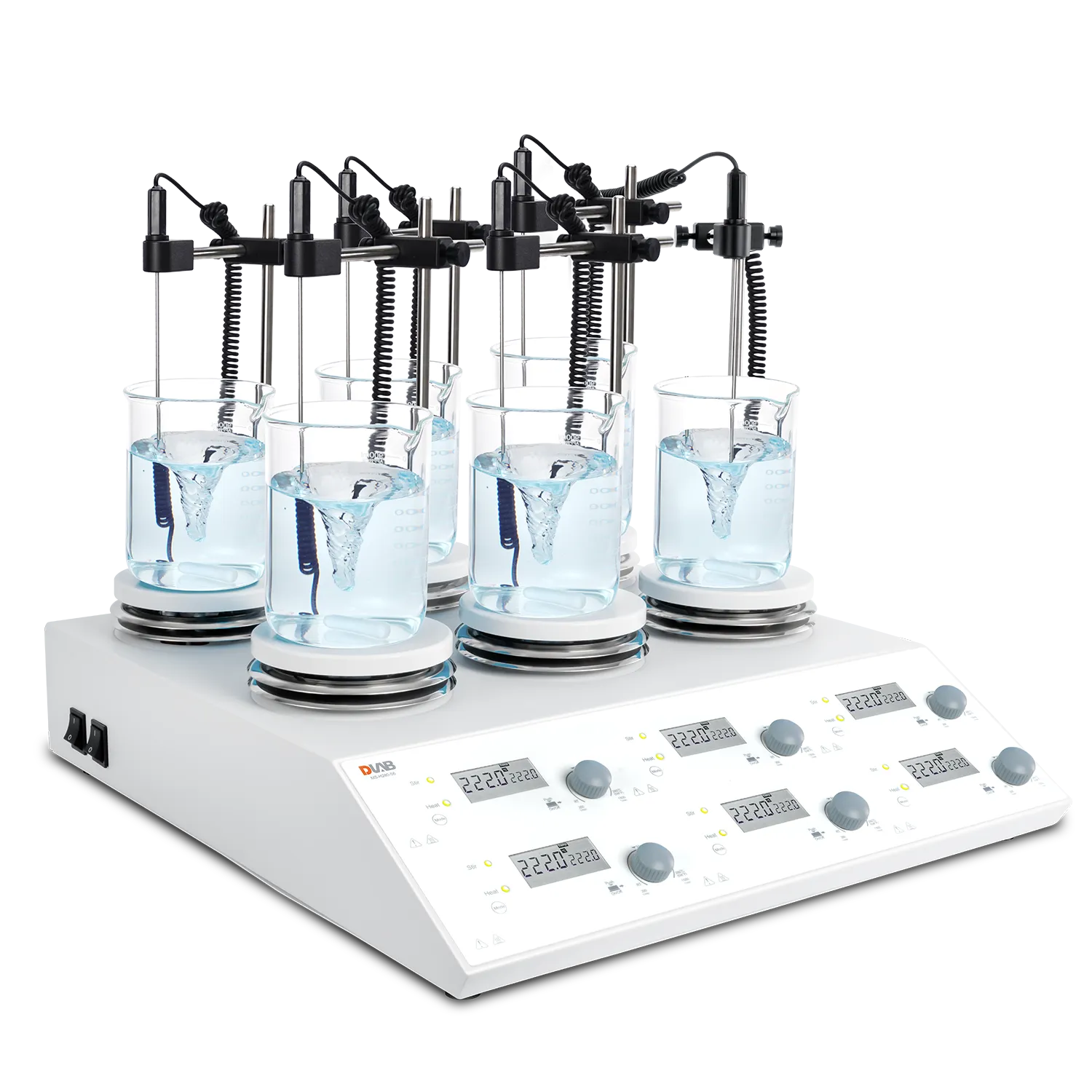

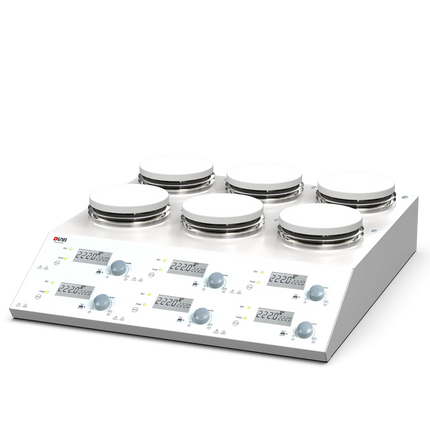

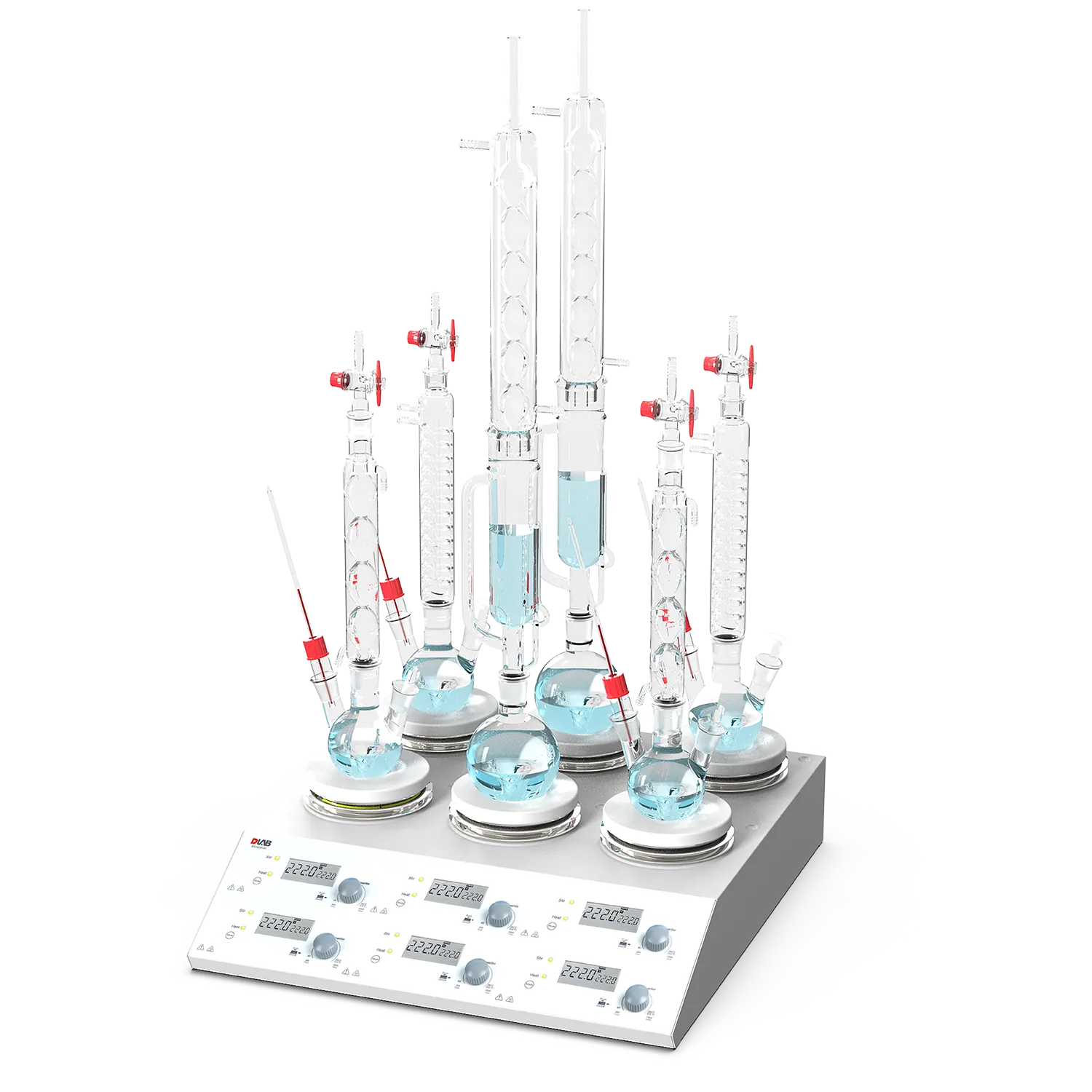

• 6 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.
• Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
• Powerful, rapid heating with accurate PID temperature control
• Spark-free DC brushless motor with extended life and no maintenance

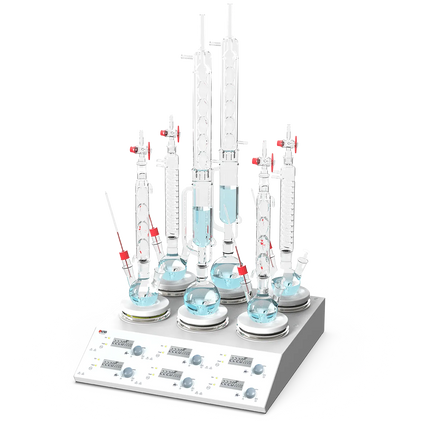

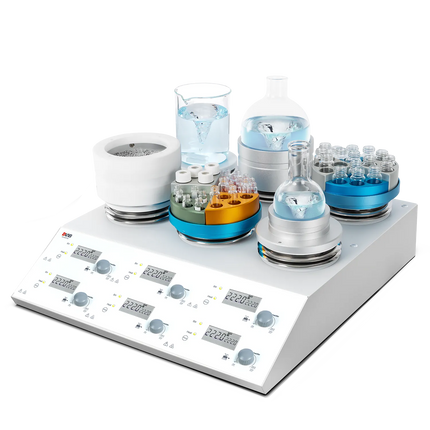

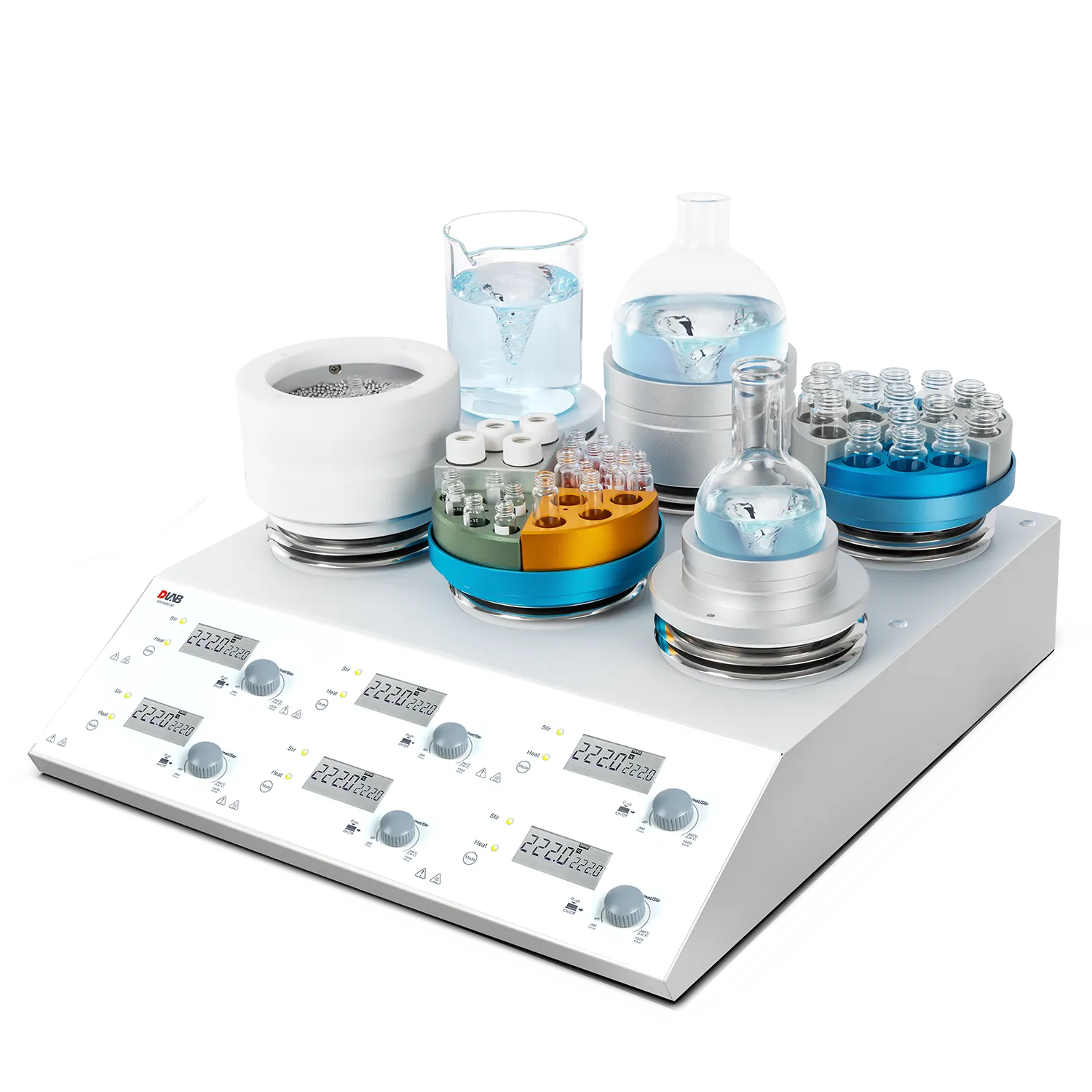

• Compatible with various heating block or reaction vessels for a variety of application scenarios
| Cat.No. |
8030351112 |
Work plate Dimension |
Ø134mm |
|
Work plate material
|
Aluminum with ceramic coating
|
Max. stirring quantity [H2O] |
3LX6 |
| Speed range |
200-1500rpm |
Speed display |
LCD |
| Temperature display |
LCD |
Heating temperature range |
25-280℃ |
| Temperature control accuracy |
±1℃(<100℃)， ±1%(>100℃) |
Temperature display accuracy |
0.1℃ |
| External temperature sensor |
PT1000（accuracy±0.2℃） |
"Hot" warning
|
50℃ |
| Overheating protection |
420℃ |
Motor type
|
Brushless DC motor |
| Stirring positions |
6
|
Max. magnetic bar length
|
40mm
|
| Heating output |
|
Protection class
|
IP21 |
| Dimension [WxDxH] |
|
Power
|
605Wx6 |
| Ambient temperature |
5-40℃
|
Voltage,Frequency
|
200-240V, 50 HZ |
| Weight |
12.7Kg |
Permissible ambient humidity |
80% RH |
