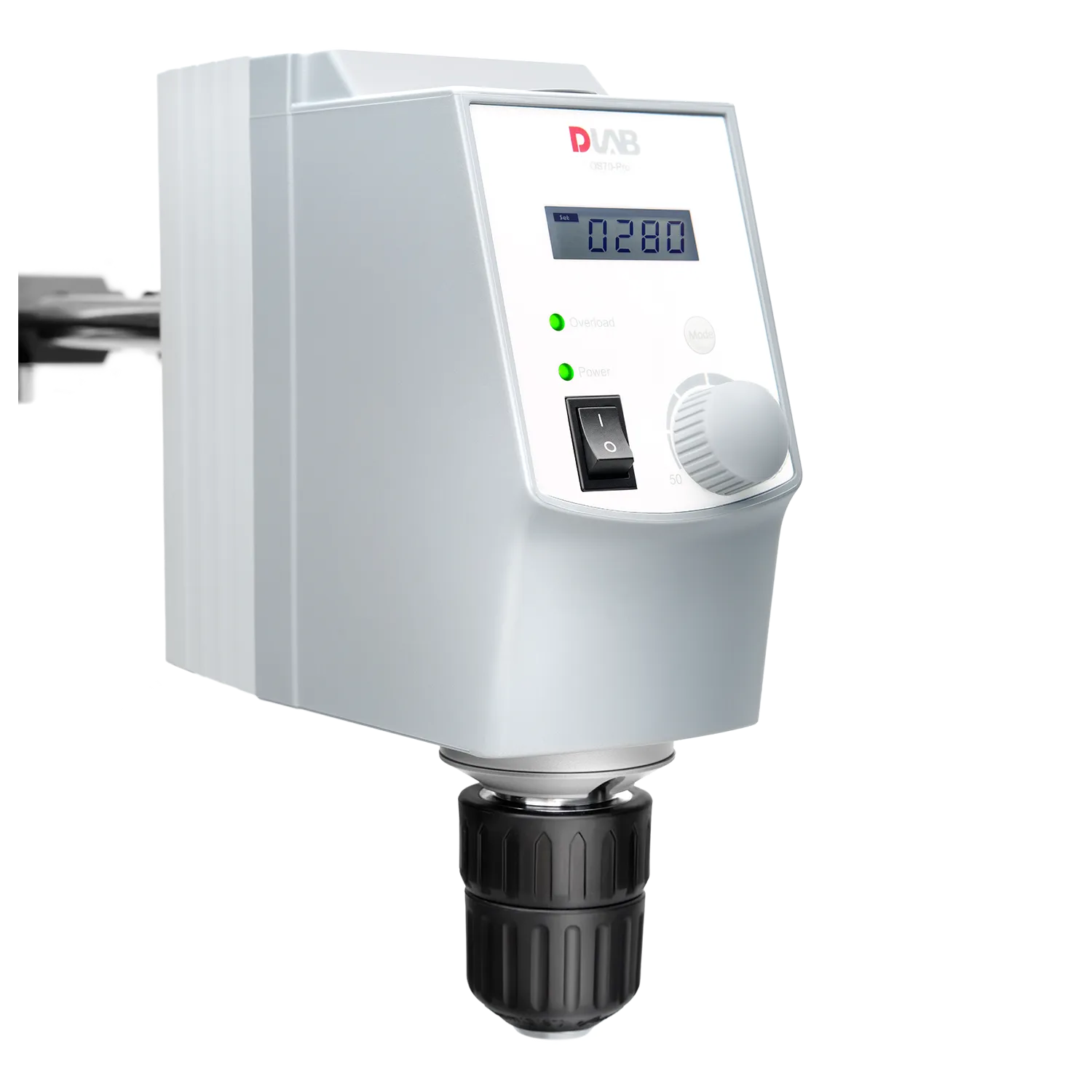

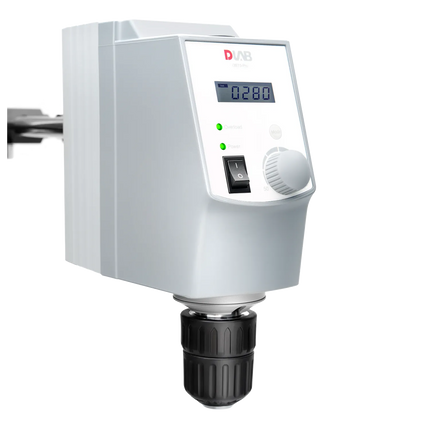

70L LCD Digital Overhead Stirrer w/ Timer (OS70-Pro)

    Description

    • High reliability and outstanding performance.
    • LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 1100rpm with control accuracy of  ±3rpm.
    • Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity changes.
    • Safety circuits allow for safe stop function in anti-stall or overload conditions.
    • Smooth operation prevents accidental spillage and splashing.
    • Provides constant speed even with changes in viscosities of the samples.
    • Remote function provide PC control and data transmission.
    • Availability of auto-restart function in case of power loss for overnight operations.
    • Package includes: Grand Propeller Stirrer (SKU: 18900478) & Universal plate stand (SKU: 18900597)

    Specifications

    Model OS70-Pro
    Max Stirring Quantity
    		 40L
    Motor Type Brushless DC Motor
    Motor Input Power 180W
    Motor Output Power 160W
    Voltage 100-240V, 50/60 Hz
    Power 200W
    Speed range 50~1100rpm
    Speed display accuracy ±10rpm
    Speed display LCD
    Torque display LCD
    Time settings range 0-99h59min
    Overload protection display LED lights
    Max. torque 300Ncm
    Viscosity max. 100000mPas
    Chuck range diameter 0.5-10mm
    Dimension[WxHxD] 186 x 83 x 220mm
    Weight Weight
    Protection class IP21
    Permissible ambient temperature and humidity 5~40°C,80%
    Data connector RS232


    Accessories

    SKU Descriptions
    18900258 Universal plate stand (WxD: 20x31cm), including support holder (H: 78cm) and fixing device (Grey)
    18900131 Universal plate stand (WxD: 20x31cm), including support holder (H: 78cm) and fixing device
    18900071 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 304 stainless steel
    18900072 Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 304 stainless steel
    18900073 Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 304 stainless steel
    18900074 Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 304 stainless steel
    18900075 Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated
    18900076 Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated
    18900077 Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated
    18900078 Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated
    18900330 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel (prevents liquid spills）
    18900478 Grand propeller stirrer, shaft length 60cm,s tirrer diameter 10cm, 316L stainless steel
    18900497 Universal plate stand for OS70 （WxD: 335x463mm) , including support holder(H:78cm) and fixing device

    Read more

    Product form

    SKU: 8033200100P

    70L LCD Digital Overhead Stirrer w/ Timer (OS70-Pro)

      High reliability and outstanding performance. LCD display for precise monitoring of set and actual speeds, a wide range of speed... Read more

      $1,439.00
