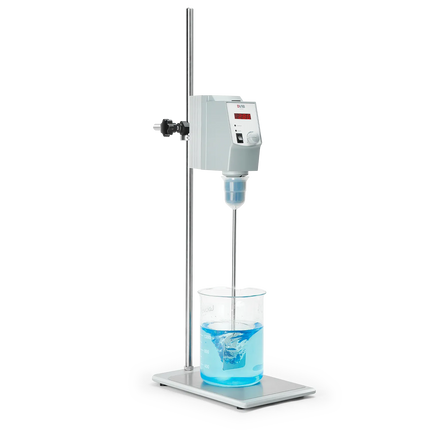

20L LED Digital Overhead Stirrer (OS20-S)

    Description

    • High reliability and outstanding performance.
    • A wide range of speed from 50-2200rpm.
    • Brushless DC motor for long life
    • Maintenance free and explosion proof.
    • LED screen for monitoring actual speed.
    • Safety circuits allow for safe stop function in anti-stall or overload condition
    • Package includes: Crossed stirrer (SKU: 18900071) & Universal plate stand (SKU: 18900258)

    Specifications

    Model OS20-S
    Max Stirring Quantity
    20L
    Motor Type Brushless DC Motor
    Motor Input Power 60W
    Motor Output Power 50W
    Voltage 100-240V, 50/60 Hz
    Power
    70W
    Speed Range 50-2200rpm
    Speed Display Accuracy ±3rpm
    Speed Display LED
    Overload Protection Display LED lights
    Max Torque 40Ncm
    Viscosity Max. 10000mPas
    Chuck Range Diameter 0.5-10mm
    Dimension[WxHxD] 83x220x186mm
    Weight 2.8kg
    Protection Class IP42
    Permissible Ambient Temperature and Humidity 5-40°C, 80%RH


    Accessories

    SKU Descriptions
    18900258 Universal plate stand (WxD: 20x31cm), including support holder (H: 78cm) and fixing device (Grey)
    18900131 Universal plate stand (WxD: 20x31cm), including support holder (H: 78cm) and fixing device
    18900071 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 304 stainless steel
    18900072 Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 304 stainless steel
    18900073 Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 304 stainless steel
    18900074 Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 304 stainless steel
    18900075 Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated
    18900076 Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated
    18900077 Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated
    18900078 Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated
    18900330 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel (prevents liquid spills)
    Product form

    SKU: 8033100200P

    20L LED Digital Overhead Stirrer (OS20-S)

      High reliability and outstanding performance. A wide range of speed from 50-2200rpm. Brushless DC motor for long life Maintenance free... Read more

      $630.00

      Free pickup in our shop(s)
            Want a Bulk Order? Contact us!

          Our team is available Monday through Friday from 9:00am-5:30pm PST.

          Send us a message!

            Product Brochure

          Description

          • High reliability and outstanding performance.
          • A wide range of speed from 50-2200rpm.
          • Brushless DC motor for long life
          • Maintenance free and explosion proof.
          • LED screen for monitoring actual speed.
          • Safety circuits allow for safe stop function in anti-stall or overload condition
          • Package includes: Crossed stirrer (SKU: 18900071) & Universal plate stand (SKU: 18900258)

          Specifications

          Model OS20-S
          Max Stirring Quantity
          20L
          Motor Type Brushless DC Motor
          Motor Input Power 60W
          Motor Output Power 50W
          Voltage 100-240V, 50/60 Hz
          Power
          70W
          Speed Range 50-2200rpm
          Speed Display Accuracy ±3rpm
          Speed Display LED
          Overload Protection Display LED lights
          Max Torque 40Ncm
          Viscosity Max. 10000mPas
          Chuck Range Diameter 0.5-10mm
          Dimension[WxHxD] 83x220x186mm
          Weight 2.8kg
          Protection Class IP42
          Permissible Ambient Temperature and Humidity 5-40°C, 80%RH


          Accessories

          SKU Descriptions
          18900258 Universal plate stand (WxD: 20x31cm), including support holder (H: 78cm) and fixing device (Grey)
          18900131 Universal plate stand (WxD: 20x31cm), including support holder (H: 78cm) and fixing device
          18900071 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 304 stainless steel
          18900072 Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 304 stainless steel
          18900073 Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 304 stainless steel
          18900074 Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 304 stainless steel
          18900075 Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated
          18900076 Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated
          18900077 Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated
          18900078 Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated
          18900330 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel (prevents liquid spills)
