20L LCD Digital Overhead Stirrer (OS20-Pro)

    Description

    • High reliability and outstanding performance.
    • LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of  ±3rpm.
    • Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity changes.
    • Safety circuits allow for safe stop function in anti-stall or overload conditions.
    • Smooth operation prevents accidental spillage and splashing.
    • Provides constant speed even with changes in viscosities of the samples.
    • Remote function provide PC control and data transmission.
    • Availability of auto-restart function in case of power loss for overnight operations.
    • Package includes: Crossed stirrer (SKU: 18900071) & Universal plate stand (SKU: 18900258)

    Specifications

    Model OS20-Pro
    Max Stirring Quantity
    		 20L
    Power 70W
    Motor Type Brushless DC Motor
    Motor Input Power 60W
    Motor Output Power 50W
    Speed Range 50-2200rpm
    Speed Display Accuracy ±3rpm
    Speed Display LCD
    Torque Display LCD
    Voltage 100-240V, 50/60 Hz
    Overload Protection Display LED lights
    Max Torque 40Ncm
    Viscosity Max. 10000mPas
    Chuck Range Diameter 0.5-10mm
    Dimension[WxHxD] 83x220x186mm
    Weight 2.8kg
    Protection Class IP42
    Permissible Ambient Temperature and Humidity 5-40°C, 80%RH
    Data Connector 5S232


    Accessories

    SKU Descriptions

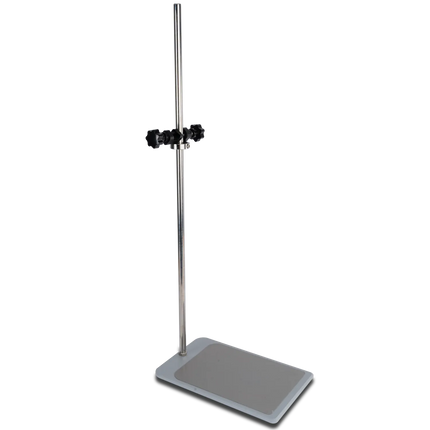

    18900258 Universal plate stand (WxD: 20x31cm), including support holder (H: 78cm) and fixing device (Grey)
    18900131 Universal plate stand (WxD: 20x31cm), including support holder (H: 78cm) and fixing device

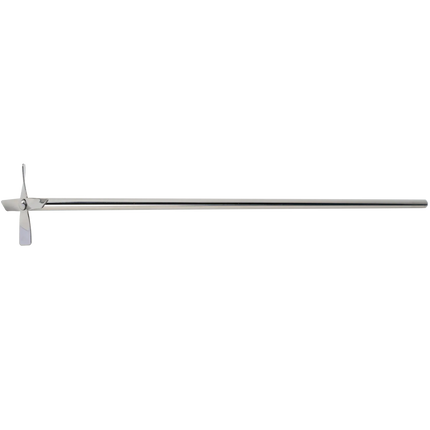

    18900071 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 304 stainless steel
    18900072 Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 304 stainless steel
    18900073 Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 304 stainless steel
    18900074 Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 304 stainless steel
    18900075 Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated
    18900076 Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated
    18900077 Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated
    18900078 Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated
    18900330 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel (prevents liquid spills）

    Read more

    Product form

    SKU: 8033100100

    20L LCD Digital Overhead Stirrer (OS20-Pro)

      High reliability and outstanding performance. LCD display for precise monitoring of set and actual speeds, a wide range of speed... Read more

      $820.00

      Free pickup in our shop(s)
            Want a Bulk Order? Contact us!

          Our team is available Monday through Friday from 9:00am-5:30pm PST.

          Send us a message!

            Product Brochure

          Description

          • High reliability and outstanding performance.
          • LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of  ±3rpm.
          • Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity changes.
          • Safety circuits allow for safe stop function in anti-stall or overload conditions.
          • Smooth operation prevents accidental spillage and splashing.
          • Provides constant speed even with changes in viscosities of the samples.
          • Remote function provide PC control and data transmission.
          • Availability of auto-restart function in case of power loss for overnight operations.
          • Package includes: Crossed stirrer (SKU: 18900071) & Universal plate stand (SKU: 18900258)

          Specifications

          Model OS20-Pro
          Max Stirring Quantity
          		 20L
          Power 70W
          Motor Type Brushless DC Motor
          Motor Input Power 60W
          Motor Output Power 50W
          Speed Range 50-2200rpm
          Speed Display Accuracy ±3rpm
          Speed Display LCD
          Torque Display LCD
          Voltage 100-240V, 50/60 Hz
          Overload Protection Display LED lights
          Max Torque 40Ncm
          Viscosity Max. 10000mPas
          Chuck Range Diameter 0.5-10mm
          Dimension[WxHxD] 83x220x186mm
          Weight 2.8kg
          Protection Class IP42
          Permissible Ambient Temperature and Humidity 5-40°C, 80%RH
          Data Connector 5S232


          Accessories

          SKU Descriptions
          18900258 Universal plate stand (WxD: 20x31cm), including support holder (H: 78cm) and fixing device (Grey)
          18900131 Universal plate stand (WxD: 20x31cm), including support holder (H: 78cm) and fixing device
          18900071 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 304 stainless steel
          18900072 Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 304 stainless steel
          18900073 Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 304 stainless steel
          18900074 Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 304 stainless steel
          18900075 Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated
          18900076 Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated
          18900077 Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated
          18900078 Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated
          18900330 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel (prevents liquid spills）

          Read more
