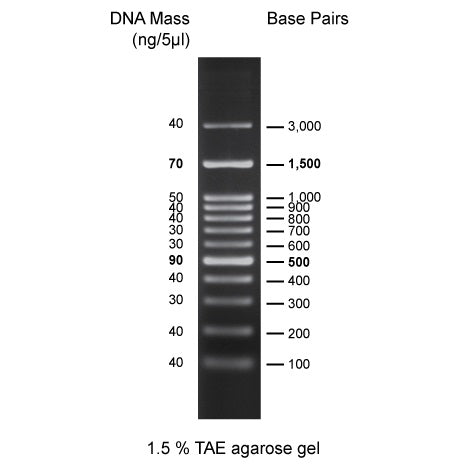

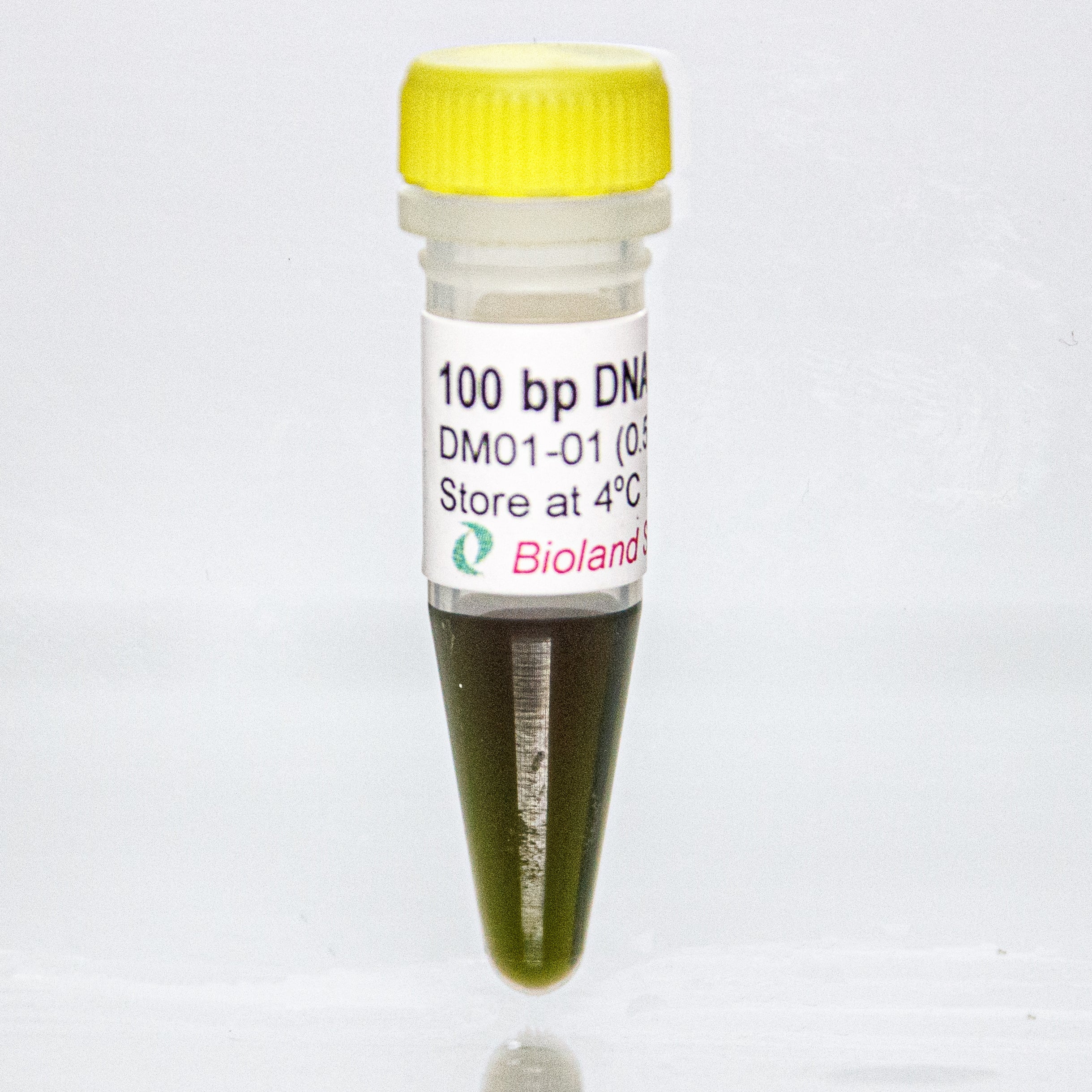

The 100 bp DNA Ladder is a ready-to-use DNA ladder, which is pre-mixed with loading dye for direct loading on gel. The DNA ladder is composed of 12 individual DNA fragments: 3k, 1.5k, 1k, 900, 800, 700, 600, 500, 400, 300, 200 and 100 bp derived from a mixture of PCR products and specifically digested plasmid DNA. This product contains two enhanced bands (1.5 kb and 500 bp) for easy referencing. In addition, two tracking dyes, Xylene cyanol FF and Orange G which mimic the migration of 4,000 bp and 50 bp dsDNA during electrophoresis are also added for real time monitoring.
The 1kB Plus DNA Ladder is a ready-to-use DNA ladder, which is pre-mixed with loading dye for direct loading on gel. The DNA ladder is composed of 13 individual DNA fragments: 10k, 8k, 6k, 5k, 4k, 3k, 2.5k, 2k, 1.5k, 1k, 750, 500, and 250 bp derived from a mixture of PCR products and specifically digested plasmid DNA. This product contains two enhanced bands (3 kb and 1 kb) for easy referencing. In addition, two tracking dyes, Xylene cyanol FF and Bromophenol blue which mimic the migration of 4,000 bp and 500 bp dsDNA during electrophoresis are also added for real time monitoring.
The 50 bp DNA Ladder is a ready-to-use DNA ladder, which is pre-mixed with loading dye for direct loading on gel. The DNA marker is composed of 17 individual DNA fragments: 1.5k, 1.2k, 1k, 900, 800, 700, 600, 500, 450, 400, 350, 300, 250, 200, 150, 100, and 50 bp derived from a mixture of PCR products and specifically digested plasmid DNA. This product contains two enhanced bands (500 bp and 200 bp) for easy referencing. In addition, the low range Orange G tracking dye mimics the migration of a 50 bp dsDNA during electrophoresis is also added for real time monitoring.
The XL 1kb Plus DNA Ladder is a ready-to-use DNA ladder, which is pre-mixed with loading dye for direct loading on gel. The DNA Ladder is composed of 14 individual DNA fragments: 25k, 10k, 8k, 6k, 5k, 4k, 3k, 2.5k, 2k, 1.5k, 1k, 750, 500, and 250 base pairs derived from a mixture of PCR products and specifically digested plasmid DNA. This product contains two enhanced bands (3 kb and 1 kb) for easy referencing. In addition, two tracking dyes, Xylene cyanol FF and Bromophenol blue which mimic the migration of 4,000 bp and 500 bp dsDNA during electrophoresis are also added for real time monitoring.
Source
Phenol extracted PCR products and dsDNA digested with specific restriction enzymes, equilibrated in 10 mM Tris-HCl (pH 8.0) and 10 mM EDTA.
Range
100 bp: 100 ~ 3,000 bp
1kb Plus: 250 ~ 10,000 bp
50 bp: 50 ~ 1,500 bp
XL 1kb Plus: 100 ~ 25,000 bp
Concentration
All other products: 54 µg/ 500 µl
XL 1kb Plus: 51.6 µg/ 500 µl
Recommended loading volume
5 µl/ well
Storage
Protected from light
Room temperature ≥ 6 months
4°C ≥ 12 months
-20°C ≥ 36 months
