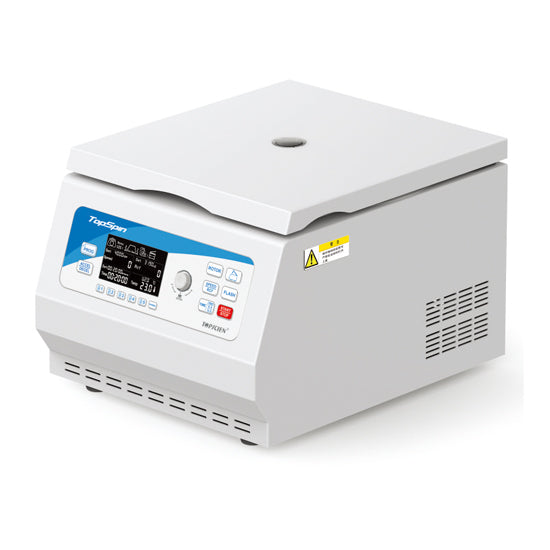

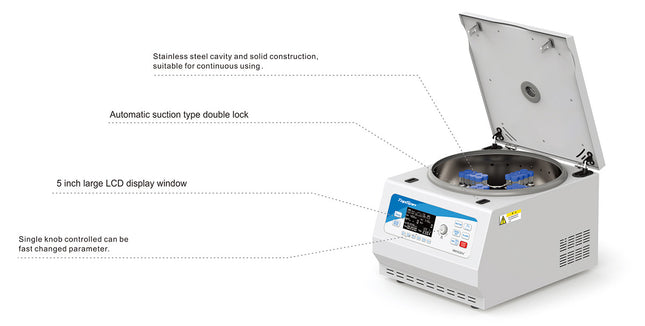

Topscien's Topspin bench centrifuge is suitable for extraction of medical products, blood bank, clinical trial and of blood serum, plasma, body fluids and biological specimen in biology laboratory.
Feature
With Infineon's motor control system, the RPM, RCF and timing can be adjusted accurately
Speed range 100-5000rpm
Speed and RCF increment is 10rpm/10xg
Operational time setting: 1-9 Hours/1-99 Minutes/1-59 Seconds
Corrosion-resistant rotor, stainless steel chamber
Protection from over-speed, over-current, over-voltage and imbalance. Alarm for operation error, the LED display shows the corresponding error code
Ventilation cooling system to prevent the rotor overheating
Power supply
AC110V, 50-60Hz
Power consumption drive
450W
Max Capacity
480ml (15mlx36)
Max. speed (rpm)
300-6000 rpm
Max.RCF (x g)
5150xg
Interference suppression
EN61326-1:2003/EN61000-3-2:2006
Display
5 inch large LCD display
Motor
Brushless variable frequency motorfree of maintenance
Time setting Range
1s-9h
Max. Acceleration time
10s
Max. Deceleration time
15s
Accessories included:
Swing rotor

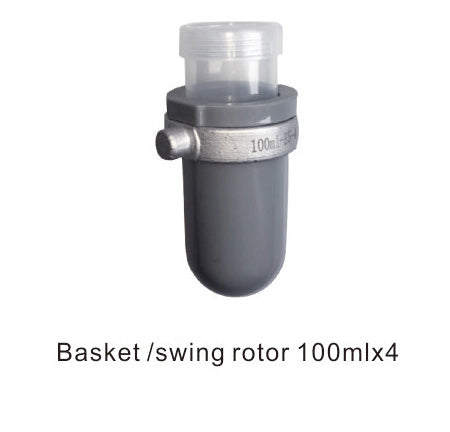

100ml basket: 4x
50ml basket: 4x
15ml basket: 4x

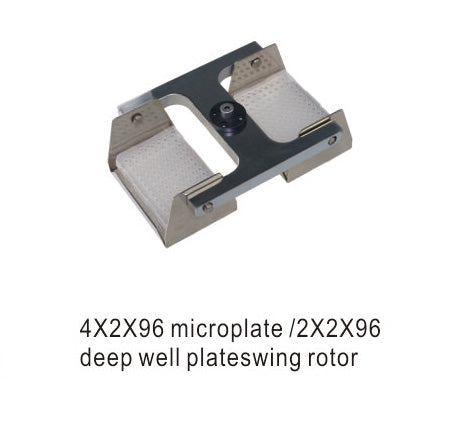

TC-TS09 Microplate Rotor
Compatible: Topspin centrifuge
Max. speed: 2190rpm
Rotor capacity: Micro-plates 384, PCR/96, ELISA plates×8pcs; Deep well plates×4pcs
Rotor material: stainless steel body

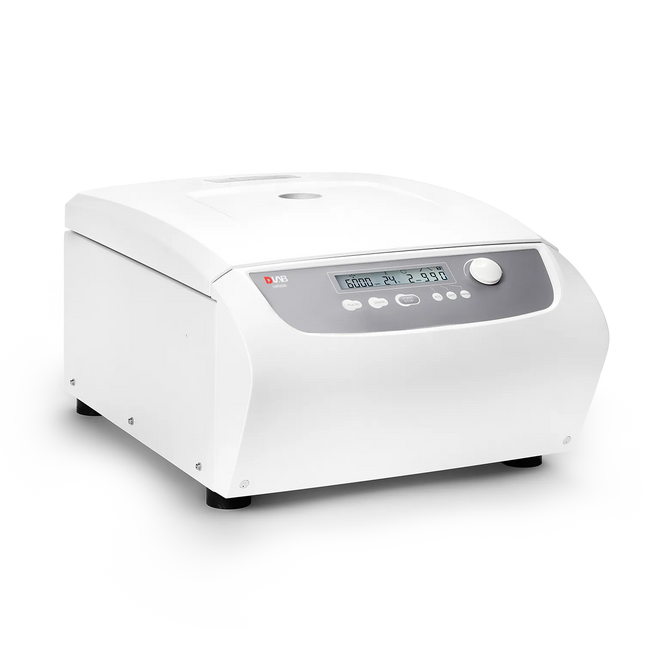

Features
Speed from 300-6000 rpm
Maximum capacity : 100 mLx4
9 Acceleration/10 Brake speed settings to ensure optimal separation
A wide range of rotors optional(fixed angle and swing-out rotors)
Automatic rotor identification
Pulse Key for quick spin
9 procedures stored in memory makes the operation much simplified
Maintenance-free brushless DC motor
Suitable for tubes with caps, blood collection or urine tubes
Specifications
Max. RCF
4100xg
Speed Accuracy
±20rpm
Rotor Capacity
100mLx4
Run Time
30sec-99mins/continuous
Display
LCD
Safety Devices
Door Imbalance protection Over speed & Over temperature detection
Acceleration/Braking time[Sec]
9↑/10↓steps
Program Memory
9
Motor
Brushless DC motor
Noise
≤65dB
Advanced features
speed/rcf switch; Rotor identification
Power
660W; Single-phase AC110V- 120V, 50Hz/60Hz, 10A
Dimension[WxDxH]
570×445×295mm
Weight
36kg
Accessories includes

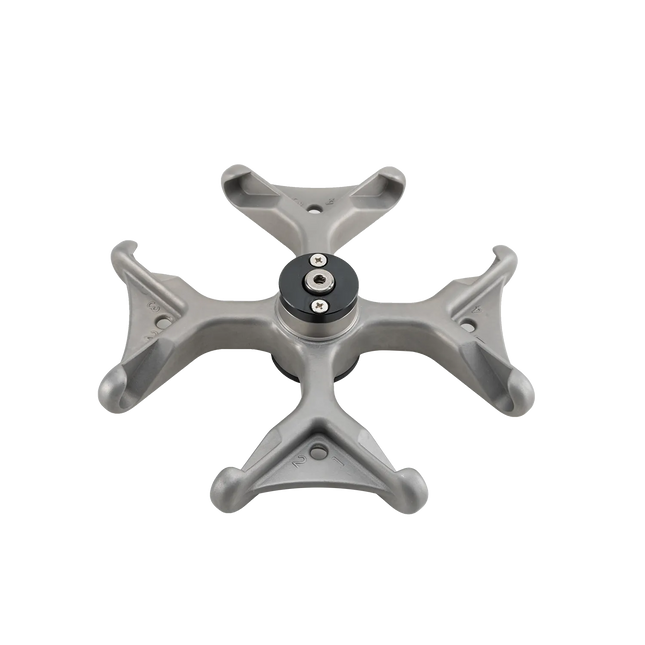

SE4-100 rotor (19400041)
100ml baskets (19400042)
Accessories sold separately

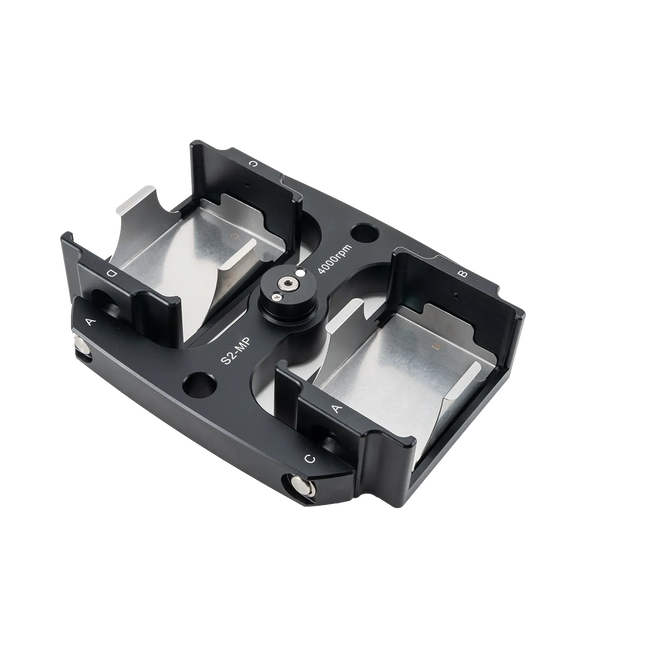

Microplate rotor, S2-MP (19400062)

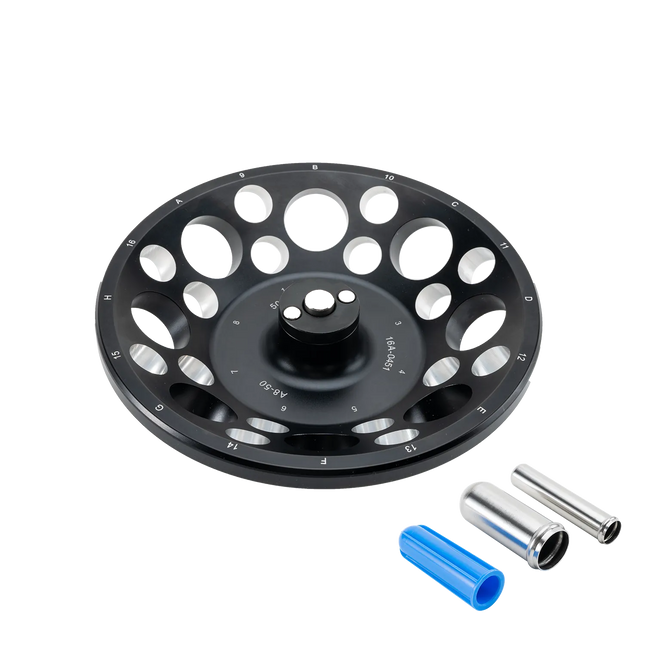

Fixed angle rotor, A8-50 (19400039)
Other fixed angle rotors
Features
Speed range from 300-5000 rpm
Set and displayed by RPM or G-force
Two programs P1/P2, easy to start the procedure by one key
Two deceleration speeds setting to meet different requirements
Easy-to-read LCD display and sound alert
Automatic lid-lock release after running
Maintenance-free brushless DC motor
Specifications
Max. RCF
2600xg, increment: 10g
Speed Range
300-5000rpm, increment:10rpm
Speed Accuracy
±20rpm
Rotor Capacity
1.5-5mL/7mL/10mL/15mL/ x6
Run Time
30sec-99min, HD (continuous running)
Display
LCD
Safety Devices
Door interlock, Overspeed detector, Automatic internal diagnosis
Acceleration/Braking time[Sec]
1↑ 2↓
Motor
Brushless DC motor
Noise
≤65dB
Advanced features
Speed/RCF switch; sound-alert function
Power
Single-phase, 100V-240V, 50Hz/60Hz, 70W
Dimension [WxDxH]
300X240X180mm
Weight
5.2kg
Accessories includes
SE4-100 rotor (19400041)
100ml baskets (19400042)
Accessories sold separately
Microplate rotor, S2-MP (19400062)
Fixed angle rotor, A8-50 (19400039)
Other fixed angle rotors
